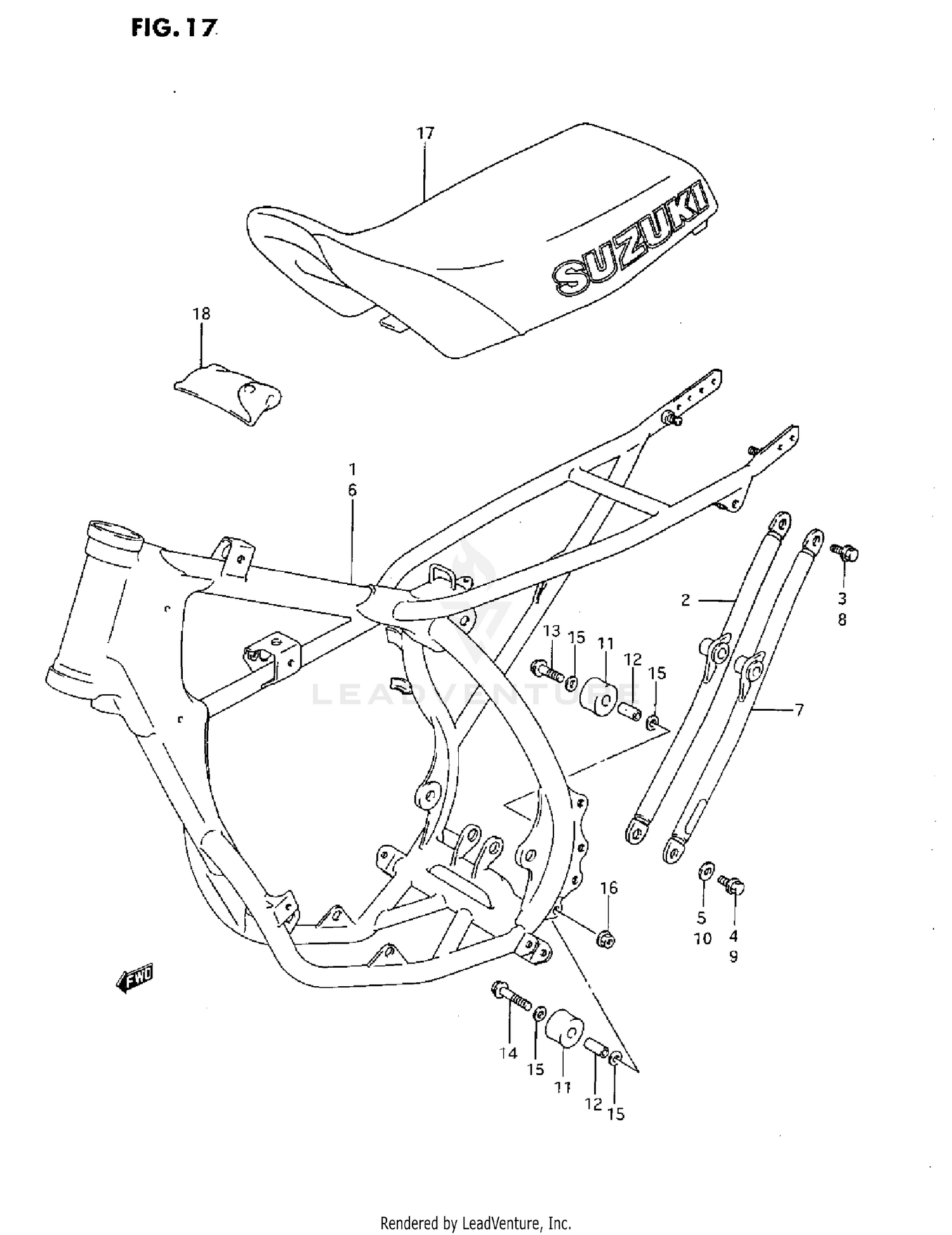

Frame-seat (h/j/k/l) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME SET (BLUE)
41100-02B10-19F
Superseded by 41100-02880-19F
|
$508.98 | ||
|
Unavailable |
|||
|
#1
FRAME SET (BLUE)
41100-02B11-19F
Superseded by 41100-02880-19F
|
$508.98 | ||
|
Unavailable |
|||
|
#2
TUBE, FRAME SIDE LH
41670-02B10
|
$36.84 | ||
|
Unavailable |
|||
|
#3
BOLT (8X20)
09103-08055
Superseded by 09103-08505
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, LOWER
09103-08147
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (M8X16)
09100-08267
Superseded by 09100-08284
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER (8.5X18X2)
09160-08042
Superseded by 09160-08120
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#6
FRAME SET (BLUE)
41100-02880-19F
|
$508.98 | ||
|
Unavailable |
|||
|
#6
NO DESCRIPTION AVAILABLE
41100-02890-19F
Superseded by 41101-03810-19F
|
$479.36 | ||
|
Unavailable |
|||
|
#7
TUBE, FRAME SIDE LH (BLUE)
41670-02B20-19F
|
$37.95 | ||
|
Unavailable |
|||
|
#7
TUBE, FRAME SIDE LH (BLUE)
41670-02B30-19F
|
$43.15 | ||
|
Unavailable |
|||
|
#8
BOLT (8X20)
09103-08055
Superseded by 09103-08505
|
$3.77 | ||
|
Unavailable |
|||
|
#9
BOLT (M8X16)
09100-08267
Superseded by 09100-08284
|
$4.06 | ||
|
Unavailable |
|||
|
#10
WASHER (8.5X18X2)
09160-08042
Superseded by 09160-08120
|
$2.68 | ||
|
Unavailable |
|||
|
#11
ROLLER, CHAIN CONTROL
43911-35B00
|
$25.38 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER
09180-08119
Superseded by 09180-08156
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, UPPER
09103-08083
|
$4.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, LOWER
09103-08043
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
.BOLT (8X50)
09103-08081
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT (8X55)
09103-08170
Superseded by 09103-08339
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, GEAR SHAFT
08211-08161
Superseded by 09181-08167
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
08319-31087
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAT ASSY (BLUE)
45100-02B10-4UZ
Superseded by 45100-02B21-4UZ
|
$165.13 | ||
|
Unavailable |
|||
|
#17
SEAT ASSY (BLUE)
45100-02B20-4UZ
Superseded by 45100-02B21-4UZ
|
$165.13 | ||
|
Unavailable |
|||
|
#17
SEAT ASSY (BLUE)
45100-02B21-4UZ
|
$165.13 | ||
|
Unavailable |
|||
|
#18
TOOL ASSY
09800-00310
Superseded by 09800-21059
|
$54.56 | ||
|
Available to order. Add to View Price |
|||
|
#18
TOOL ASSY
09800-20011
Superseded by 09800-21059
|
$54.56 | ||
|
Unavailable |
|||
