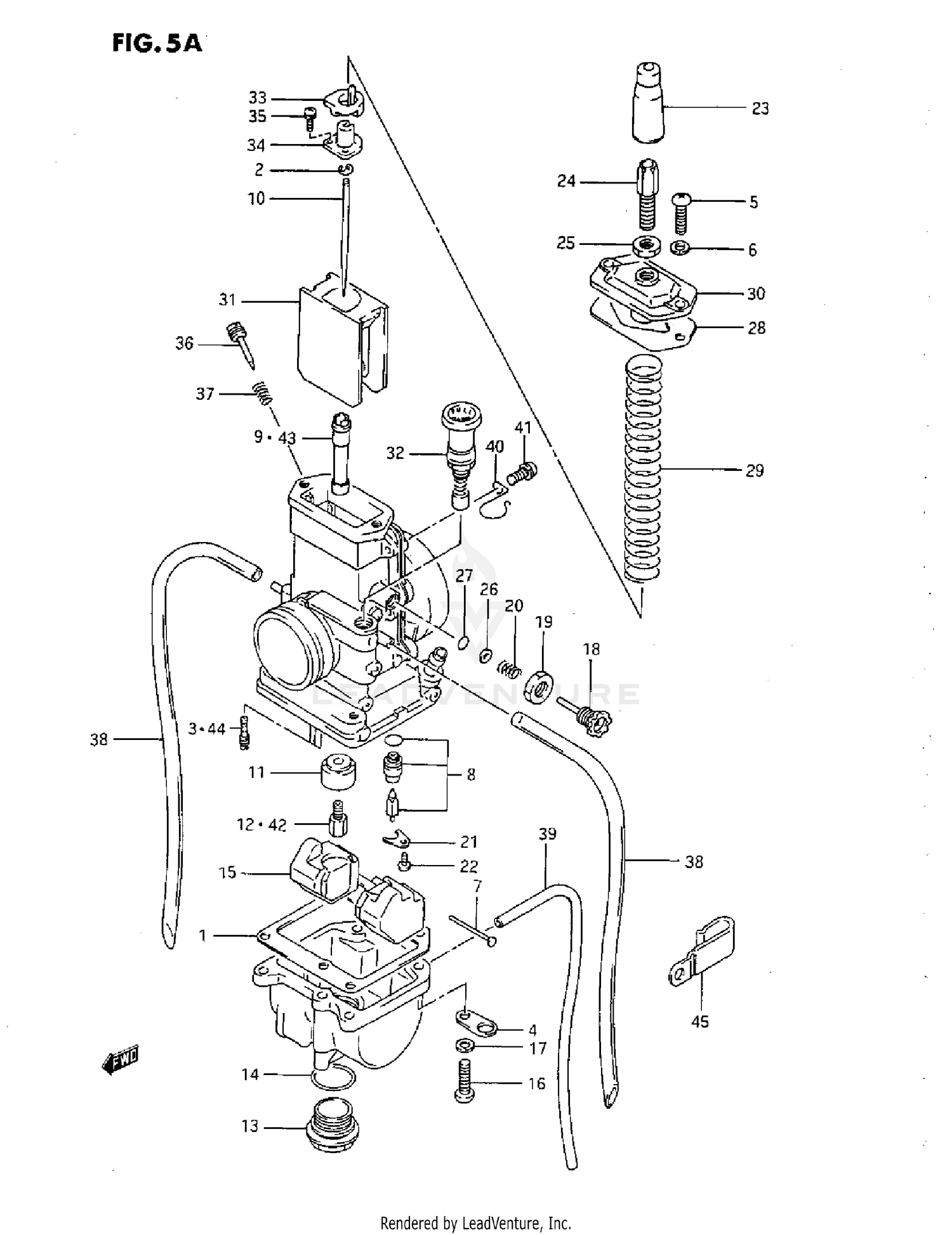

Carburetor (k/l/m/n/p/r) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET
13251-29630
|
$6.55 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET
13251-02B40
|
$11.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
E RING
13394-10010
|
$5.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
JET, PILOT (30)
09492-30006
|
$11.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE
13693-36500
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
02112-04126
Superseded by 02112-0412A
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
LOCK WASHER
08321-21046
Superseded by 08321-0104A
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, FLOAT
13254-92311
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE ASSY, NEEDLE
13370-46900
|
$47.98 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE ASSY, NEEDLE
13370-02B50
|
$79.72 | ||
|
Available to order. Add to View Price |
|||
|
#9
JET, NEEDLE (P-4)
09494-00523
|
$23.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
NEEDLE, JET (5DP39-4)
13383-46900
|
$20.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING
13331-28710
|
$11.81 | ||
|
Available to order. Add to View Price |
|||
|
#12
JET, MAIN (200)
09491-40006
|
$17.06 | ||
|
Available to order. Add to View Price |
|||
|
#12
JET, MAIN (210)
09491-42001
Superseded by 09491-42005
|
$14.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUG, DRAIN
13247-46900
|
$13.10 | ||
|
Unavailable |
|||
|
#14
0 RING
13246-29630
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#15
FLOAT
13252-29630
|
$29.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
FLOAT
13252-02B50
|
$45.17 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
02112-04206
Superseded by 02112-0420A
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#17
LOCK WASHER
08321-21046
Superseded by 08321-0104A
|
$2.25 | ||
|
Unavailable |
|||
|
#18
ADJUSTER, THROTTLE STOP
13267-16700
|
$16.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
13661-02B00
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING
13268-35010
|
$5.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PLATE, NEEDLE VALVE
13373-39110
|
$8.44 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
13602-04088
Superseded by 02112-04087
|
$1.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
CAP, ADJUSTER
13681-33010
|
$11.52 | ||
|
Available to order. Add to View Price |
|||
|
#24
ADJUSTER, CABLE
13577-41612
|
$8.91 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
13661-16600
|
$5.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER
13291-35010
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#27
.O-RING
13295-33010
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET, TOP
13266-16700
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING, THROTTLE VALVE
13573-16700
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#30
CAP, TOP
13261-16700
|
$15.80 | ||
|
Unavailable |
|||
|
#31
VALVE, PISTON (CA:4.0)
13551-20910
|
$85.59 | ||
|
Unavailable |
|||
|
#32
PLUNGER ASSY
13400-20910
Superseded by 13410-26410
|
$55.74 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLUNGER ASSY
13410-26410
|
$55.74 | ||
|
Unavailable |
|||
|
#33
RING
13629-16700
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#34
CONNECTOR
13398-16700
|
$11.26 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW
13601-03108
Superseded by 02112-3310B
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, AIR (1 3/4)
13269-16700
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, AIR (1 1/2)
13269-16700
|
$14.10 | ||
|
Unavailable |
|||
|
#37
SPRING
13268-01010
|
$5.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
HOSE (3.5X6.5X600)
13683-37420
Superseded by 09351-35653-600
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#39
.HOSE (3X5X600)
13683-36A00
Superseded by 09352-30504-600
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLIP
13692-14500
|
$4.13 | ||
|
Unavailable |
|||
|
#41
SCREW
13601-04148
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
JET, MAIN (170)
09491-34002
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#42
JET, MAIN (180)
09491-36006
|
$20.32 | ||
|
Available to order. Add to View Price |
|||
|
#42
JET, MAIN (190)
09491-38009
|
$18.73 | ||
|
Available to order. Add to View Price |
|||
|
#42
JET, MAIN (200)
09491-40006
|
$17.06 | ||
|
Unavailable |
|||
|
#42
JET, MAIN (210)
09491-42001
Superseded by 09491-42005
|
$14.93 | ||
|
Unavailable |
|||
|
#42
JET, MAIN
09491-44001
Superseded by 09491-44007
|
$15.51 | ||
|
Available to order. Add to View Price |
|||
|
#42
JET, MAIN (230)
09491-46001
|
$12.15 | ||
|
Available to order. Add to View Price |
|||
|
#43
JET, NEEDLE (P-0)
09494-00519
|
$14.54 | ||
|
Unavailable |
|||
|
#43
JET, NEEDLE (P-2)
09494-00522
|
$23.33 | ||
|
Available to order. Add to View Price |
|||
|
#43
JET, NEEDLE (P-6)
09494-00585
|
$33.68 | ||
|
Available to order. Add to View Price |
|||
|
#43
JET, NEEDLE (P-8)
09494-00584
|
$19.29 | ||
|
Unavailable |
|||
|
#44
JET, PILOT (25)
09492-25005
|
$11.80 | ||
|
Available to order. Add to View Price |
|||
|
#44
JET, PILOT (35)
09492-35004
|
$9.01 | ||
|
Available to order. Add to View Price |
|||
|
#45
CLAMP
09403-06307
Superseded by 09403-06329
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
