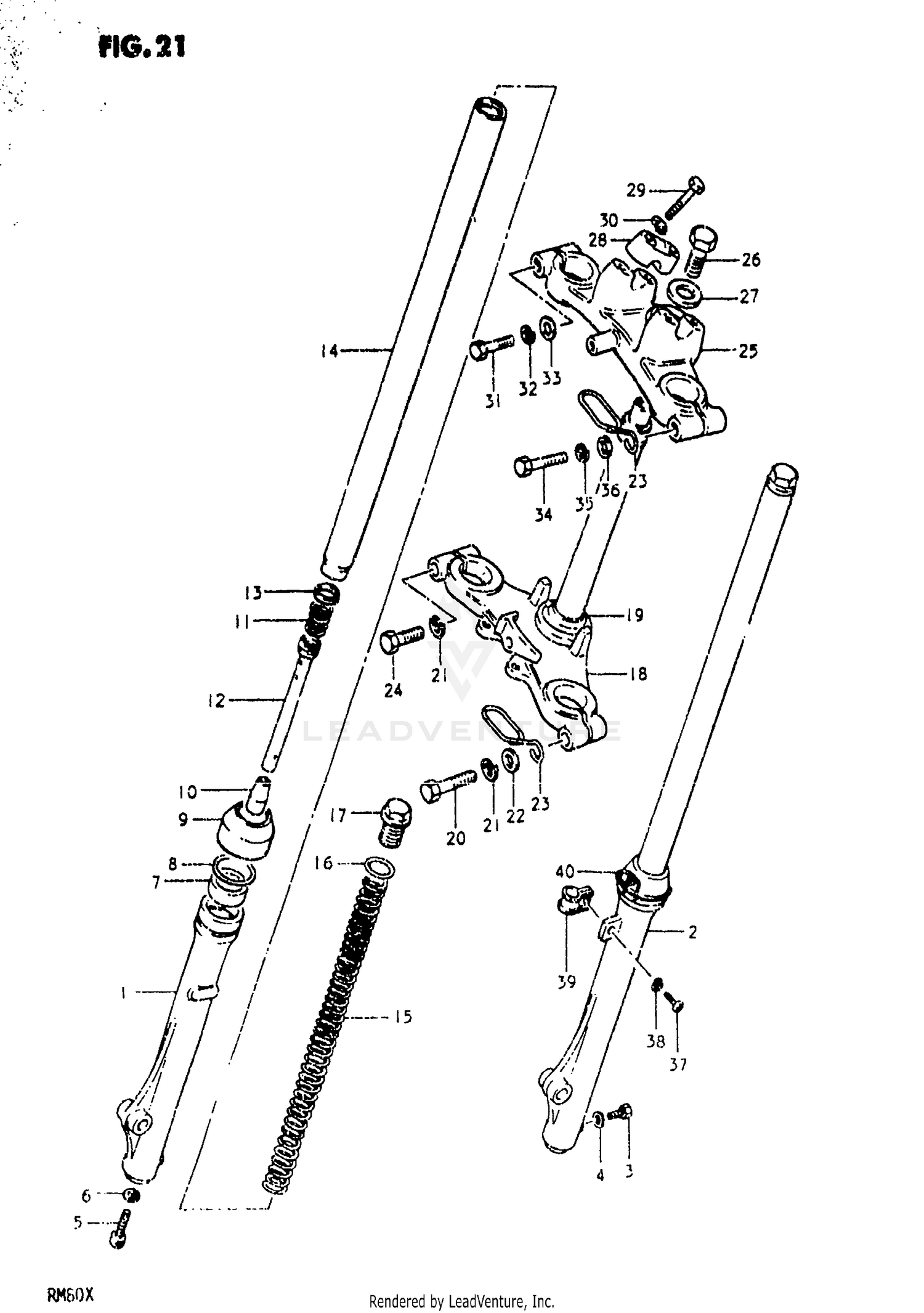

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#0
FRONT FORK ASSY (GOLD)
51100-20300-08C
Superseded by 51100-20301-08C
|
$399.01 | ||
|
Unavailable |
|||
|
#0
FRONT FORK ASSY (GOLD)
51100-20301-08C
|
$399.01 | ||
|
Unavailable |
|||
|
#1
OUTER TUBE, RH
51131-20300
|
$97.68 | ||
|
Unavailable |
|||
|
#2
NO DESCRIPTION AVAILABLE
51141-20300
|
|||
|
Unavailable |
|||
|
#3
BOLT
09100-06011
|
$1.77 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
51183-31030
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
51147-48130
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#6
.GASKET (8.2X13X1.5)
51148-31030
Superseded by 51148-36011
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
.OIL SEAL
51153-08030
Superseded by 51153-48420
|
$16.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
.RING, STOPPER
51156-36030
Superseded by 51156-48730
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
DUST SEAL
51173-25030
Superseded by 51173-20400
|
$15.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
.PIECE, OIL LOCK
51195-48000
|
$9.12 | ||
|
Unavailable |
|||
|
#11
SPRING
51177-36030
|
$2.33 | ||
|
Unavailable |
|||
|
#12
CYLINDER
51146-20300
|
$25.90 | ||
|
Unavailable |
|||
|
#13
RING, PISTON
51196-33130
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
INNER TUBE
51110-20300
|
$98.68 | ||
|
Unavailable |
|||
|
#15
SPRING
51171-20300
|
$16.69 | ||
|
Unavailable |
|||
|
#16
.O RING
51181-25030
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#17
.BOLT, FORK
51351-48000
|
$19.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
STEM, STEERING (GOLD)
51410-46911-08C
|
$134.26 | ||
|
Unavailable |
|||
|
#19
RACE, STEERING OUTER LOWER
51621-33001
|
$17.56 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HOLDER
51451-27431
Superseded by 51451-12FA0
|
$3.83 | ||
|
Available to order. Add to View Price |
|||
|
#21
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
08322-11108
Superseded by 08322-01107
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
CLIP
51455-20301
|
$1.89 | ||
|
Unavailable |
|||
|
#24
BOLT, HANDLE HOLDER
01107-10358
Superseded by 01500-1035B
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#25
STEM HEAD, STEERING (GOLD)
51311-46910-08C
|
$70.44 | ||
|
Unavailable |
|||
|
#26
NO DESCRIPTION AVAILABLE
51352-48000
Superseded by 51352-13600
|
$12.17 | ||
|
Unavailable |
|||
|
#27
WASHER
51356-20300
|
$3.18 | ||
|
Unavailable |
|||
|
#28
HOLDER, HANDLE (GOLD)
56211-46680-08C
|
$8.66 | ||
|
Unavailable |
|||
|
#29
BOLT
01107-08358
Superseded by 01500-0835B
|
$3.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BOLT
01107-08408
Superseded by 01500-0840A
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#32
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.22 | ||
|
Unavailable |
|||
|
#33
WASHER
08322-21088
Superseded by 08322-01087
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
BOLT
01107-08458
Superseded by 01500-08453
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#35
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.22 | ||
|
Unavailable |
|||
|
#36
WASHER
08322-21088
Superseded by 08322-01087
|
$2.25 | ||
|
Unavailable |
|||
|
#37
SCREW
02112-04168
Superseded by 02112-0416A
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#38
LOCK WASHER
08321-21046
Superseded by 08321-0104A
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLIP
51452-46040
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#40
GUIDE
51455-20310
|
$5.48 | ||
|
Unavailable |
|||
