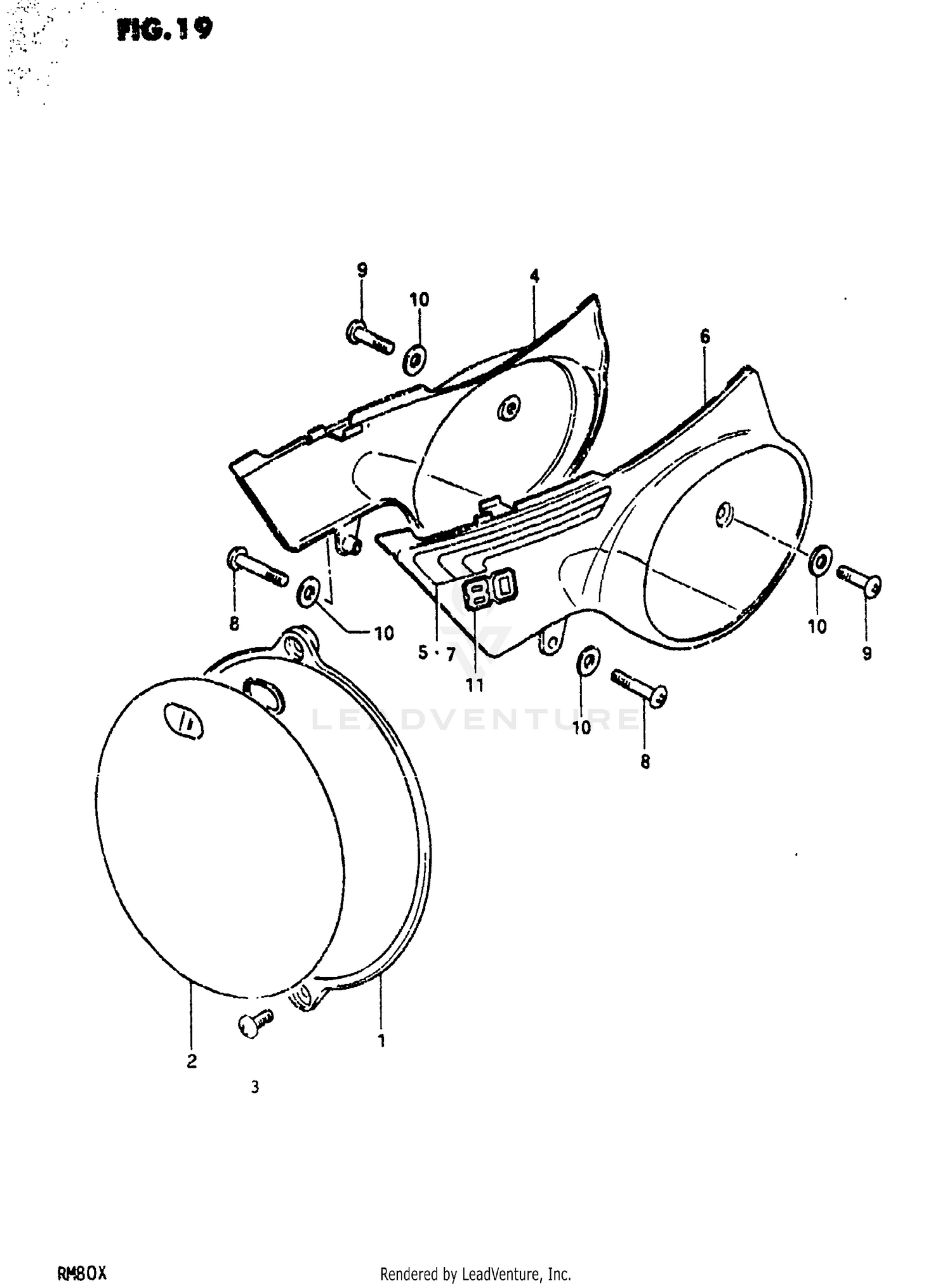

Frame Cover (rm80t) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PLATE, NUMBER FRONT
94911-46010
|
$18.97 | ||
|
Unavailable |
|||
|
#2
EMBLEM, NUMBER PLATE FRONT
68169-46010
|
$8.44 | ||
|
Unavailable |
|||
|
#3
SCREW
02142-05167
|
$1.68 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, FRAME RH (YELLOW)
47111-20300-163
|
$67.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
TAPE, STRIPING RH
68136-20300-67H
|
$8.83 | ||
|
Unavailable |
|||
|
#6
COVER, FRAME LH (YELLOW)
47211-20300-163
|
$52.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
TAPE, STRIPING LH
68146-20300-67H
|
$8.87 | ||
|
Unavailable |
|||
|
#8
SCREW (6X40)
02142-06408
Superseded by 02112-06407
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, NO.2
02142-06167
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
09160-06007
Superseded by 09160-06084
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
EMBLEM F COVER
68131-20300-64D
Superseded by 68131-03400-163
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
