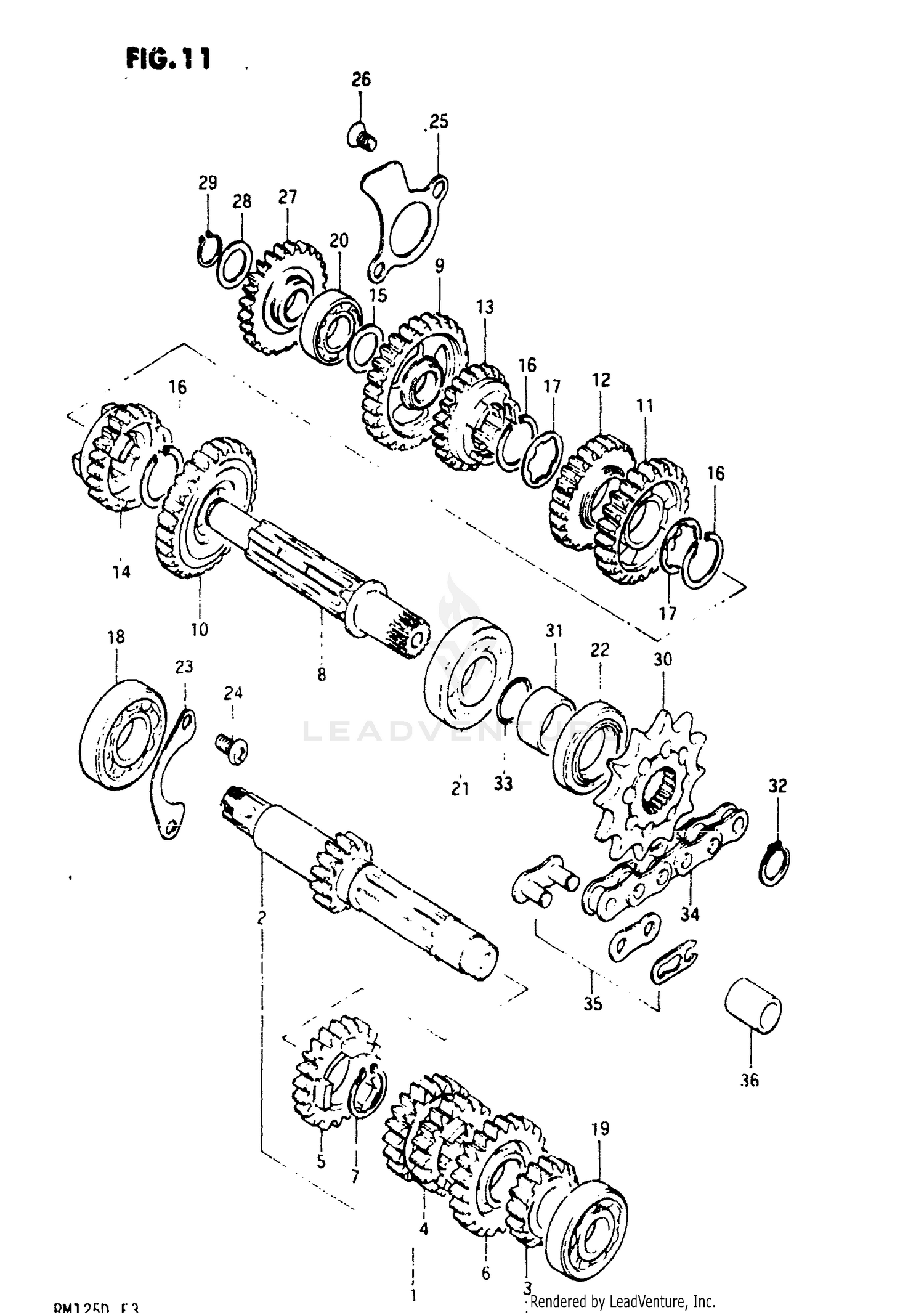

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COUNTERSHAFT ASSY
24120-14120
|
$166.84 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT (NT:15)
24121-14120
|
$83.25 | ||
|
Unavailable |
|||
|
#3
GEAR, 2ND DRIVE (NT:17)
24221-14120
Superseded by 24221-14122
|
$32.52 | ||
|
Unavailable |
|||
|
#4
GEAR, 3/4 DRIVE (NT:17/21)
24231-14120
|
$73.97 | ||
|
Unavailable |
|||
|
#5
GEAR, 5TH DRIVE (NT:22)
24251-14120
|
$52.97 | ||
|
Unavailable |
|||
|
#6
GEAR, 6TH DRIVE (NT:23)
24260-14120
|
$50.45 | ||
|
Unavailable |
|||
|
#7
CIRCLIP
09380-20007
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#8
DRIVESHAFT
24131-14120
|
$73.63 | ||
|
Unavailable |
|||
|
#9
GEAR, 1ST DRIVEN (NT:31)
24311-14120
|
$49.31 | ||
|
Unavailable |
|||
|
#10
GEAR, 2ND DRIVEN (NT:29)
24321-14120
|
$62.25 | ||
|
Unavailable |
|||
|
#11
GEAR, 3RD DRIVEN (NT:24)
24331-14120
|
$55.86 | ||
|
Unavailable |
|||
|
#12
GEAR, 4TH DRIVEN (NT:25)
24341-14120
|
$49.31 | ||
|
Unavailable |
|||
|
#13
GEAR, 5TH DRIVEN (NT:23)
24351-14120
|
$44.40 | ||
|
Unavailable |
|||
|
#14
GEAR, 6TH DRIVEN (NT:22)
24361-14120
|
$55.41 | ||
|
Unavailable |
|||
|
#15
WASHER, SUB T/M IDLE, LH
08211-15261
Superseded by 09181-15195
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP
09380-22006
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#17
LOCK WASHER
09167-22011
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, DRIVE SHAFT LH
08113-62040
Superseded by 09262-20069
|
$28.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, LH
08113-60020
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING (15X35X11)
08113-62020
Superseded by 08113-62027
|
$17.53 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, LH
09262-20043
|
$25.21 | ||
|
Unavailable |
|||
|
#22
OIL SEAL
09283-25035
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOLDER, BEARING
24741-48000
|
$4.08 | ||
|
Unavailable |
|||
|
#24
SCREW
02112-06128
Superseded by 02112-06127
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOLDER, BEARING
24751-14101
Superseded by 24751-14102
|
$3.18 | ||
|
Unavailable |
|||
|
#26
SCREW
02122-06128
Superseded by 02122-06127
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#27
GEAR, KICK IDLE (NT:28)
26260-14100
|
$39.23 | ||
|
Unavailable |
|||
|
#28
SHIM (T:1.0)
08211-15241
Superseded by 09181-15166
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#29
CIRCLIP
08331-31159
Superseded by 08331-3115A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#0
SPROCKET, ENGINE (NT:12)
27511-14110
Superseded by 27511-14111
|
$24.79 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPROCKET, ENGINE (NT:11)
27511-14100
Superseded by 27511-14101
|
$28.65 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPROCKET, ENGINE (NT:13)
27511-14120
Superseded by 27511-14121
|
$36.96 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPACER
09180-20039
|
$8.90 | ||
|
Available to order. Add to View Price |
|||
|
#32
CIRCLIP
09380-20007
|
$2.79 | ||
|
Unavailable |
|||
|
#33
O RING
09280-20001
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#34
CHAIN,DRIVE ASS
27600-14130
Superseded by 27600-46K00-116
|
$179.72 | ||
|
Unavailable |
|||
|
#35
NO DESCRIPTION AVAILABLE
27620-36111
Superseded by 27620-28C01
|
$7.27 | ||
|
Unavailable |
|||
|
#35
JOINT (RK)
27620-10221
|
$5.68 | ||
|
Unavailable |
|||
|
#36
CUSHION, CHAIN
09320-13001
|
$3.92 | ||
|
Unavailable |
|||
