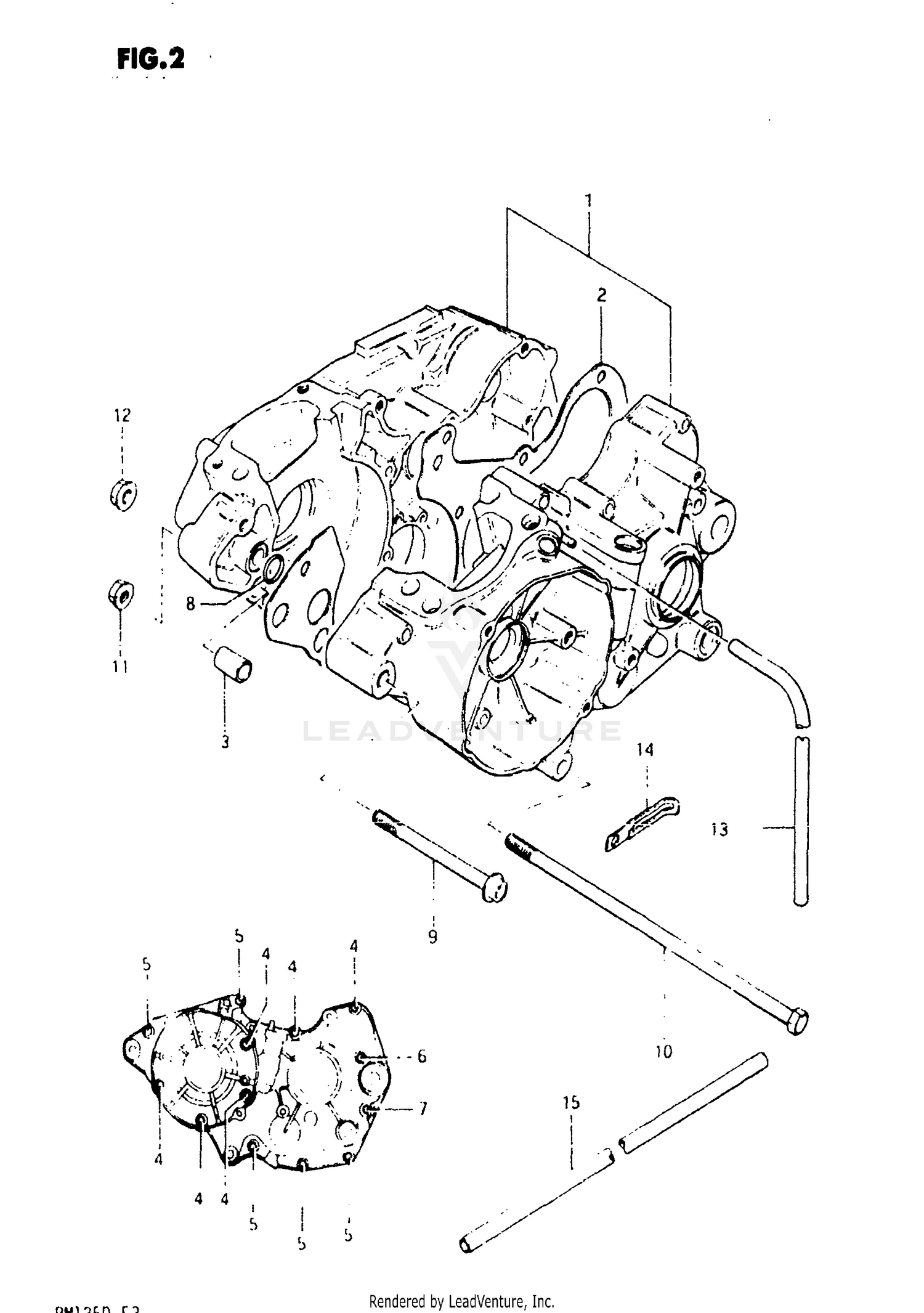

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11300-14880
|
$403.55 | ||
|
Unavailable |
|||
|
#2
GASKET,CRANKCAS
11481-14110
Superseded by 11481-14110-H17
|
$15.76 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN
09206-13001
Superseded by 04211-13189
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
SCREW (6X45)
02112-06458
Superseded by 02112-06457
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW (6x50)
02112-06557
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
02112-06658
Superseded by 02112-06657
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
02112-06658
Superseded by 02112-06657
|
$3.20 | ||
|
Unavailable |
|||
|
#8
O RING (D:1.9,ID:13.8)
09280-14004
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
09103-08072
Superseded by 09103-08363
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (8x205)
09100-08190
|
$7.27 | ||
|
Unavailable |
|||
|
#11
NUT
08319-31088
Superseded by 08319-3108A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
08319-21088
Superseded by 08319-2108A
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
HOSE 4X7X600
09343-04046
Superseded by 09352-40706-600
|
$6.32 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
09404-06412
Superseded by 09404-06039
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE 4X7X600
09343-04046
Superseded by 09352-40706-600
|
$6.32 | ||
|
Unavailable |
|||
