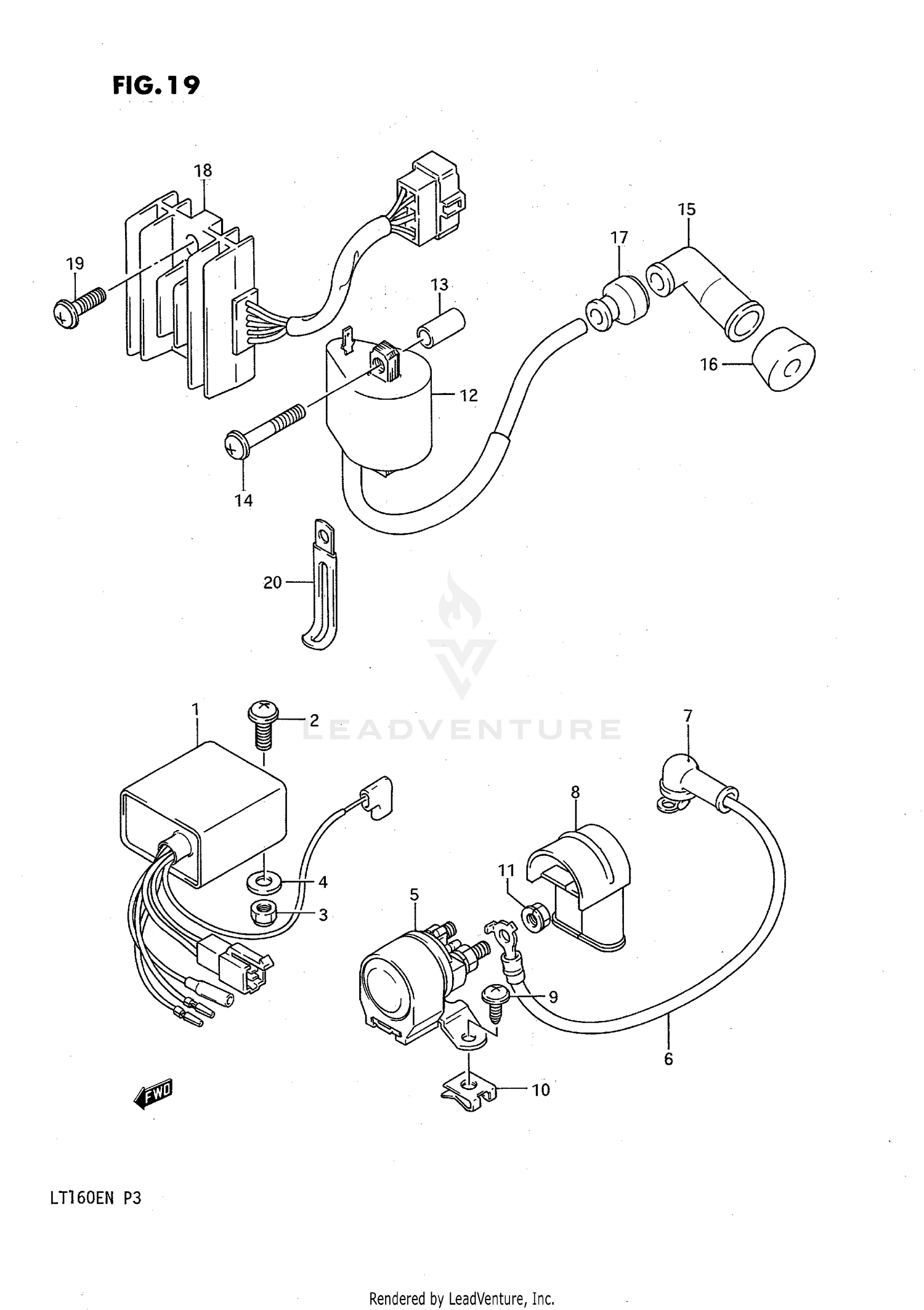

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I UNIT
32900-02C00
|
$439.70 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW
02152-06206
|
$0.79 | ||
|
Unavailable |
|||
|
#3
NUT
09159-06066
Superseded by 09159-06015
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, CLUTCH RLSE NO.2
09160-060G4
Superseded by 09160-06052
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
RELAY, STARTING MOTOR
31800-30B00
Superseded by 31800-49100
|
$120.21 | ||
|
Available to order. Add to View Price |
|||
|
#6
LEAD WIRE, STARTING MOTOR
33850-02C00
Superseded by 33850-44B01
|
$40.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
.CAP, STARTER MOTOR
31861-05300
Superseded by 31861-48B10
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, RELAY TERMINAL
31861-02C00
|
$7.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
03241-15125
Superseded by 03241-1512B
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
09148-05019
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
08361-35066
Superseded by 08361-3506A
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
COIL ASSY,IGNIT
33410-02C00
Superseded by 33410-02C01
|
$121.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER
09180-06072
Superseded by 09180-06271
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SCREW
02112-16356
Superseded by 02142-0635A
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, SPARK PLUG
33510-43010
|
$30.87 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL, SPARK PLUG
33541-24510
Superseded by 33541-47D00
|
$9.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SEAL,HIGH TENSION CORD
33542-38B00
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#18
RECTIFIER ASSY
32800-19B00
Superseded by 32800-19B11
|
$281.26 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
02112-16206
Superseded by 02142-0620A
|
$1.68 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
09404-06403
Superseded by 09404-06039
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
