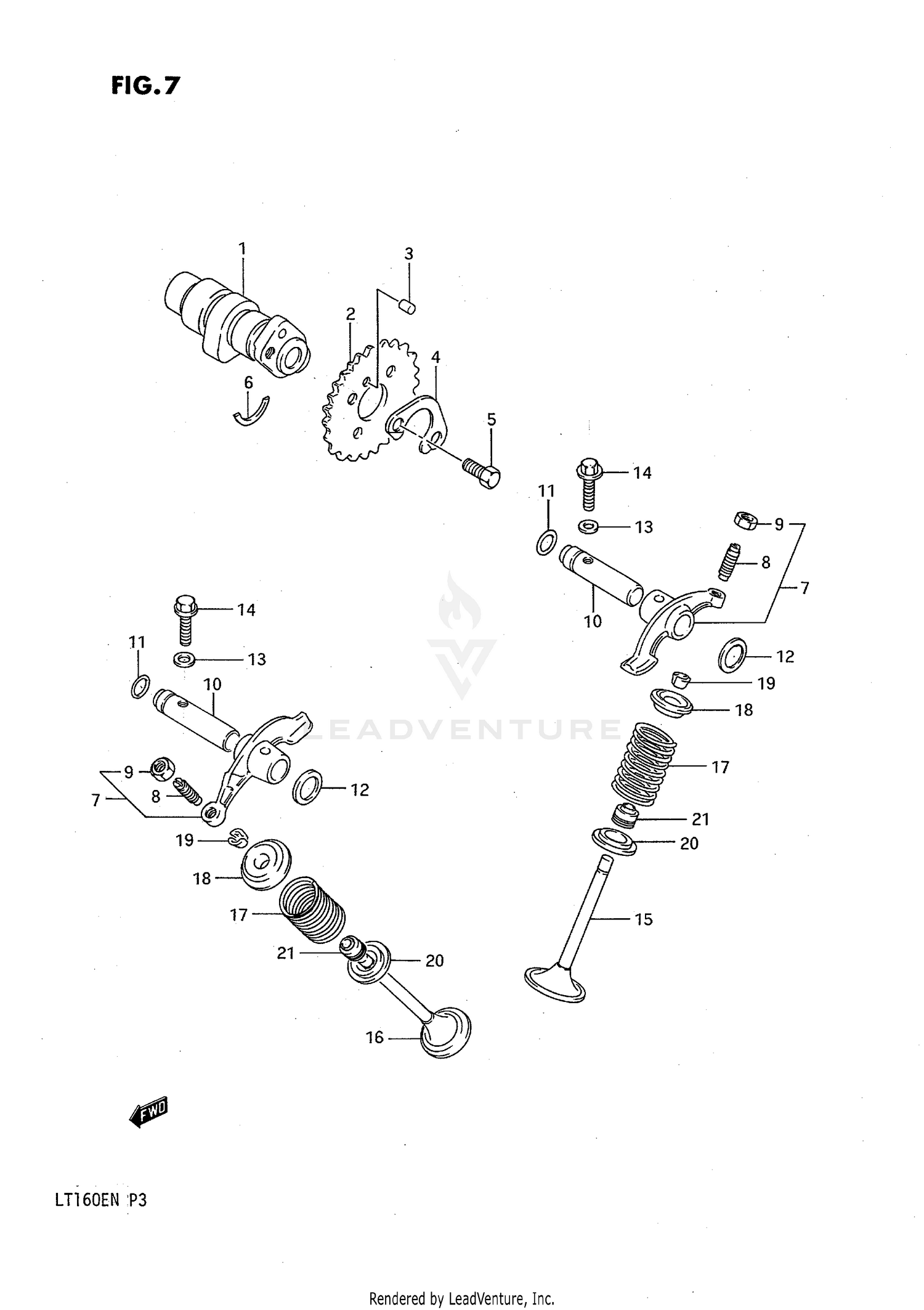

Cam Shaft - Valve Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAM SHAFT
12711-02C00
Superseded by 12711-02C10
|
$207.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, CAM SHAFT (NT:32)
12741-05201
|
$24.83 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN
09261-05005
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPROCKET
12747-05201
Superseded by 12747-05202
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
09111-06032
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#6
C-RING
09390-22002
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#7
ARM, VALVE ROCKER
12840-25C00
Superseded by 12850-25C00
|
$53.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
.SCREW, ADJUSTING
12842-32411
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#9
.NUT,ADJUSTING SCREW
12843-32400
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT, VALVE ROCKER ARM
12861-05201
|
$21.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
.O-RING (D:1.9,ID:8.6)
09280-09005
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (37.3X52X1)
09164-12021
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
09168-06023
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT
01517-06257
Superseded by 01550-06257
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#15
VALVE, INTAKE
12911-02C00
|
$59.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
VALVE, EXHAUST
12912-02C00
|
$104.08 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, VALVE
12921-02C00
|
$16.66 | ||
|
Available to order. Add to View Price |
|||
|
#18
RETAINER, SPRING
12931-19B00
Superseded by 12931-19B01
|
$12.92 | ||
|
Available to order. Add to View Price |
|||
|
#19
COTTER, VALVE
12932-24400
|
$2.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SEAT, SPRING
12933-19B00
|
$8.97 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL (5.5X11X8.2)
09289-05015
|
$8.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
