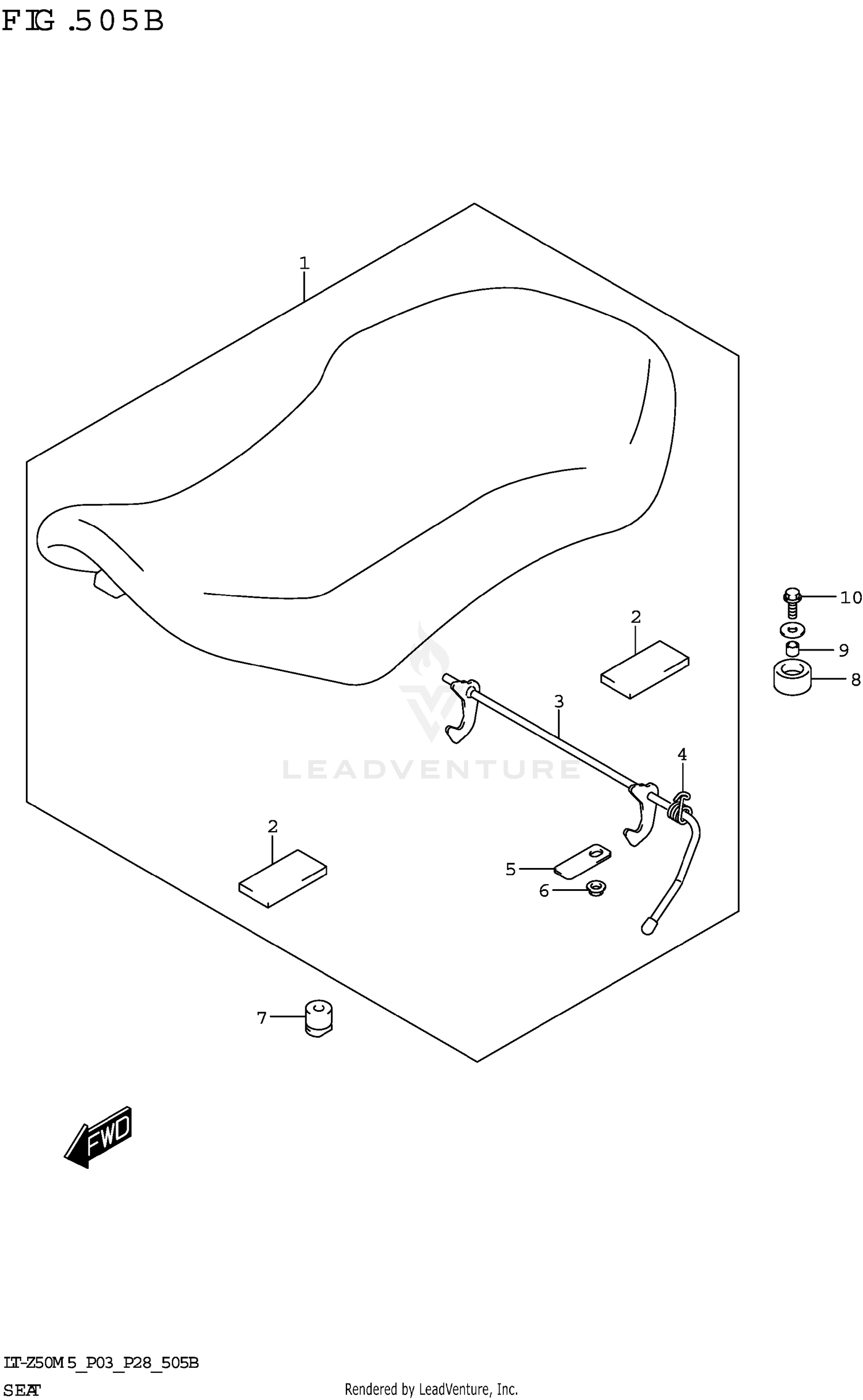

Seat (p28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY (BLACK)
45100-43G10-6BY
|
|||
|
Unavailable |
|||
|
#2
.CUSHION
45146-43G00
|
$2.16 | ||
|
Unavailable |
|||
|
#3
.CLAMP,SEAT LOCK
45210-43G00
|
$11.24 | ||
|
Unavailable |
|||
|
#4
.SPRING
45135-43F00
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
.PLATE,SEAT LOCK
45222-43G00
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
08316-1006B
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CUSHION,SEAT MOUNT FRONT
45141-43G00
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION,MOUNT
45141-09F00
|
$6.63 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER (6.5X9X8)
09180-06261
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
.BOLT
01550-0616B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
