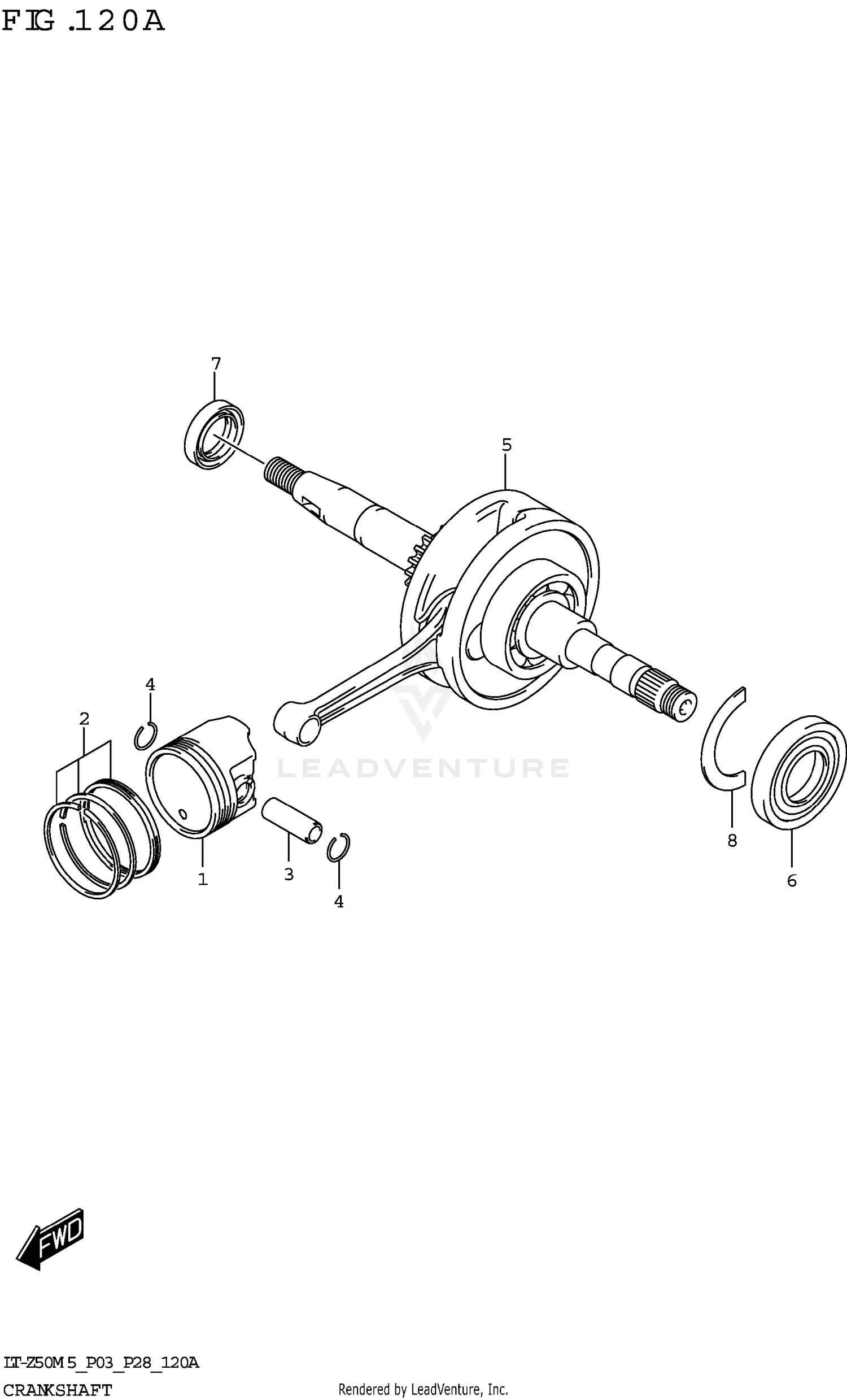

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PISTON
12111-22G02
|
$54.46 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET,PISTON
12140-22G00
|
$49.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN,PISTON
12151-22G00
|
$8.23 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
09381-10006
|
$1.54 | ||
|
Available to order. Add to View Price |
|||
|
#5
CRANKSHAFT ASSY
12200-43G00
|
$383.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL,CRANKSHAFT OIL,L
12227-22G00
|
$10.39 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL,OIL,17X28X5.5 (17X28X5.5
09283-17027
|
$24.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
RETAINER
09390-40003
|
$1.26 | ||
|
Unavailable |
|||
