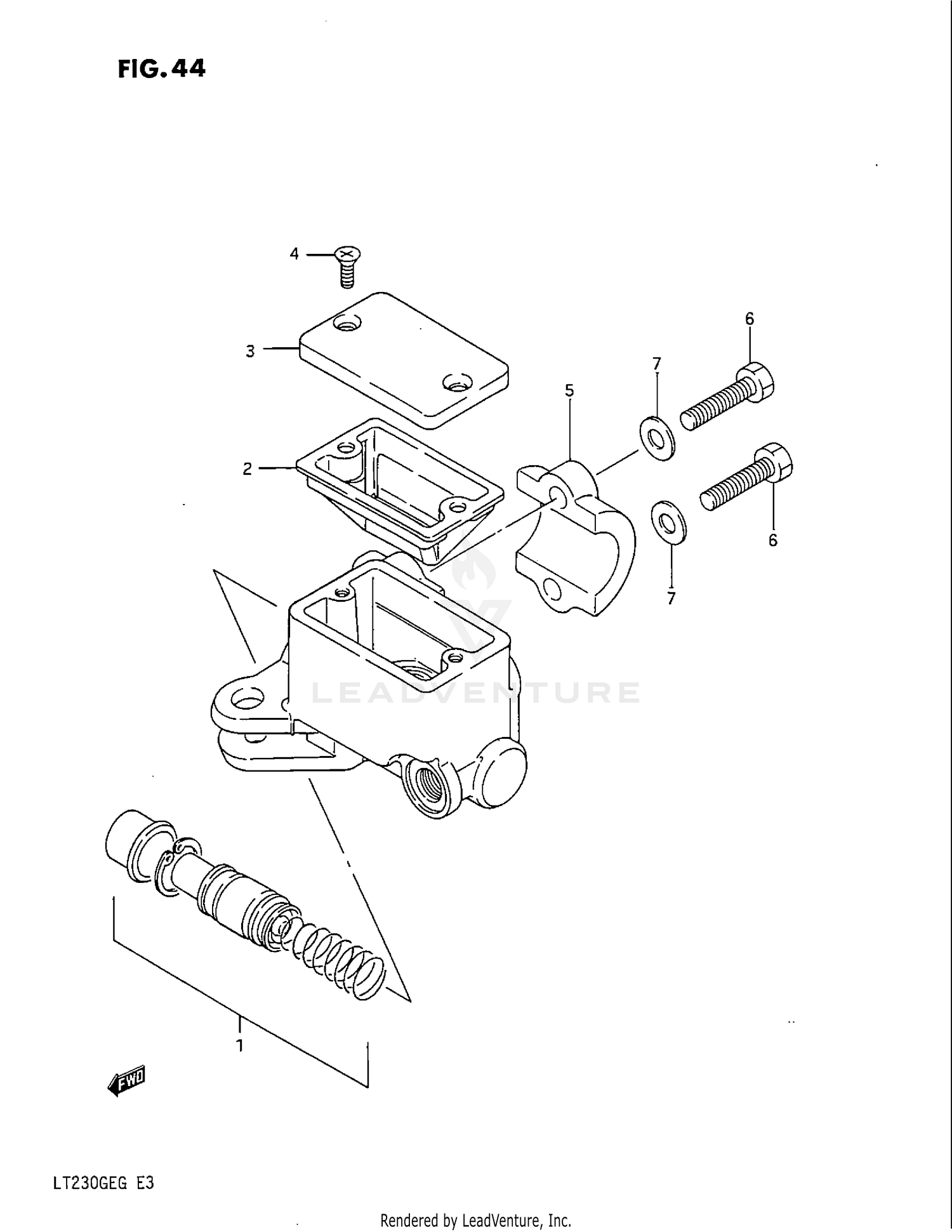

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
CYLINDER ASSY, FRONT MASTER
59600-19A00
Superseded by 59600-25C00
|
$262.96 | ||
|
Available to order. Add to View Price |
|||
|
#1
.PISTON & CUP SET
59600-36820
Superseded by 59600-04810
|
$58.35 | ||
|
Available to order. Add to View Price |
|||
|
#2
DIAPHRAGM
59667-24500
|
$13.50 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP
59669-04710
Superseded by 69669-24A01
|
$20.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, CAP
69689-49300
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER
59671-16700
Superseded by 59671-19B00
|
$22.66 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, REAR
01107-06255
Superseded by 01500-0625A
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#7
.WASHER
08322-21064
Superseded by 08322-0106B
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
