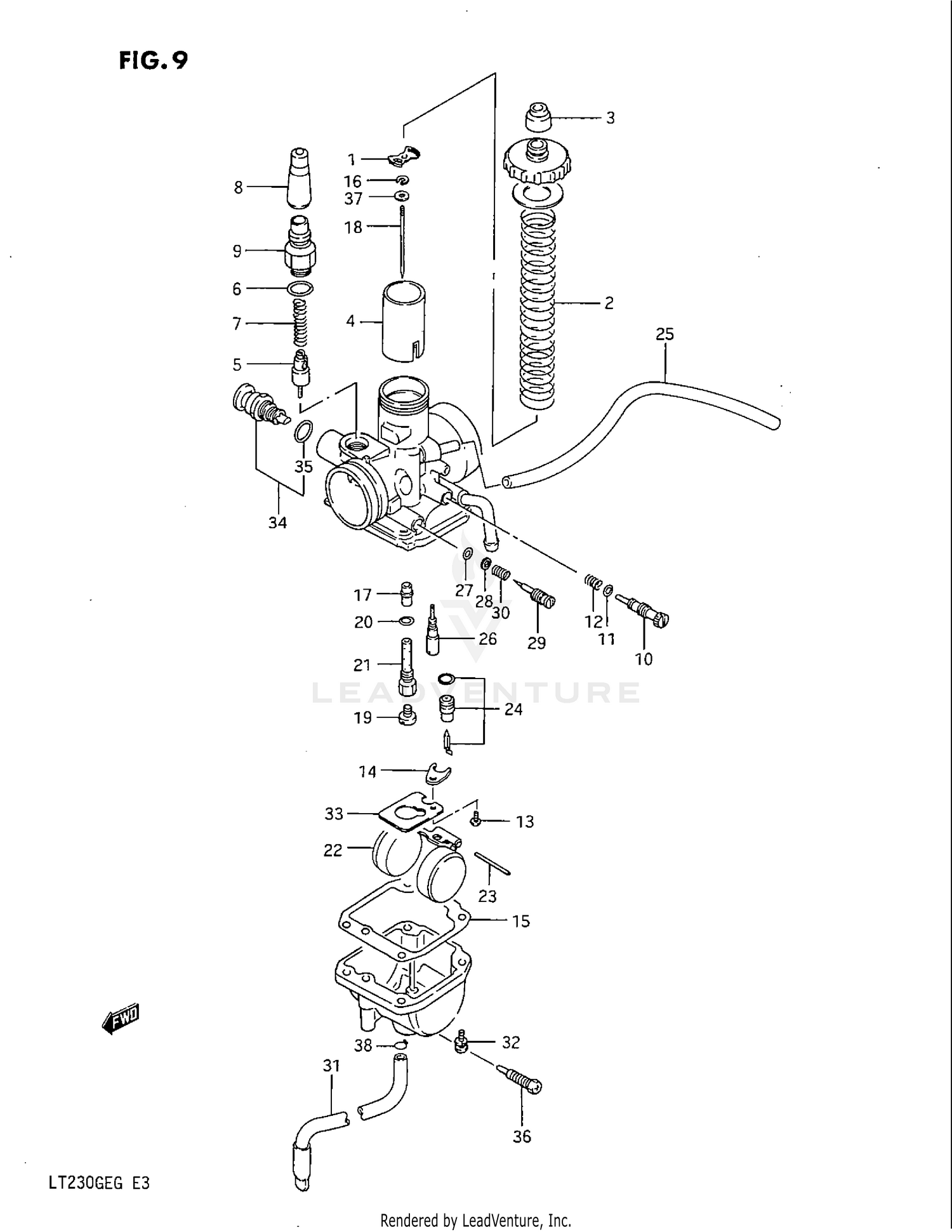

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
CARBURETOR ASSY
13200-18A00
Superseded by 13200-18A10
|
$305.59 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSY
13200-18A01
Superseded by 13200-18A10
|
$305.59 | ||
|
Unavailable |
|||
|
#1
SPRING, SEAT
13581-09210
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, THROTTLE VALVE
13573-05320
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
.CAP
13681-04010
Superseded by 13681-04011
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#4
VALVE, PISTON (CA:1.5)
13551-18A00
Superseded by 13551-19B01
|
$97.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUNGER
13411-24500
|
$28.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
O RING
13278-02330
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING
13417-01010
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP
13681-16600
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, PLUNGER
13418-24500
|
$19.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
13267-24500
|
$11.92 | ||
|
Available to order. Add to View Price |
|||
|
#11
.O-RING
13295-33010
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING
13268-35010
|
$5.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SCREW
02112-03068
Superseded by 02112-0306B
|
$2.01 | ||
|
Available to order. Add to View Price |
|||
|
#14
.PLATE,NEEDLE VALVE FITTING
13373-46710
|
$6.77 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
13251-05320
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
E RING
13394-10010
|
$6.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
JET, NEEDLE (O-2)
09494-00436
|
$33.03 | ||
|
Available to order. Add to View Price |
|||
|
#18
NEEDLE, JET (4JR45-4)
13383-18A00
Superseded by 13383-18A01
|
$21.52 | ||
|
Available to order. Add to View Price |
|||
|
#18
NEEDLE, JET (4JR45-4)
13383-18A01
|
$21.52 | ||
|
Unavailable |
|||
|
#19
JET, MAIN (115)
09491-23011
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#20
.O RING
13246-43010
Superseded by 13246-43011
|
$5.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PIPE, BLEEDER
13385-47030
|
$34.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
FLOAT
13252-05320
Superseded by 13250-05230
|
$34.74 | ||
|
Available to order. Add to View Price |
|||
|
#23
.PIN,FLOAT
13254-01010
|
$4.81 | ||
|
Available to order. Add to View Price |
|||
|
#24
NEEDLE VALVE ASSY
13370-24400
|
$60.51 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE,5X10X600
13684-18A00
Superseded by 44421-13ER0
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
JET, PILOT (17.5)
09492-17009
|
$12.03 | ||
|
Available to order. Add to View Price |
|||
|
#27
.O-RING
13278-44080
Superseded by 13295-29901
|
$5.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
.WASHER (14X17)
13277-44080
Superseded by 13291-29900
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PILOT (2 7/8)
13279-47080
Superseded by 13279-47070
|
$17.25 | ||
|
Available to order. Add to View Price |
|||
|
#30
.SPRING
13268-47070
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOSE, OVER FLOW (4.5X8X470)
13683-18A00
|
$13.94 | ||
|
Unavailable |
|||
|
#32
SCREW
13601-04148
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#33
PLATE
13259-18900
|
$8.52 | ||
|
Available to order. Add to View Price |
|||
|
#34
PLUNGER ASSY, STARTER
13439-18911
|
$58.63 | ||
|
Available to order. Add to View Price |
|||
|
#35
O RING
13278-02330
|
$3.53 | ||
|
Unavailable |
|||
|
#36
SCREW
13247-24500
|
$14.20 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER
13382-47010
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLIP
13671-05A40
|
$4.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
