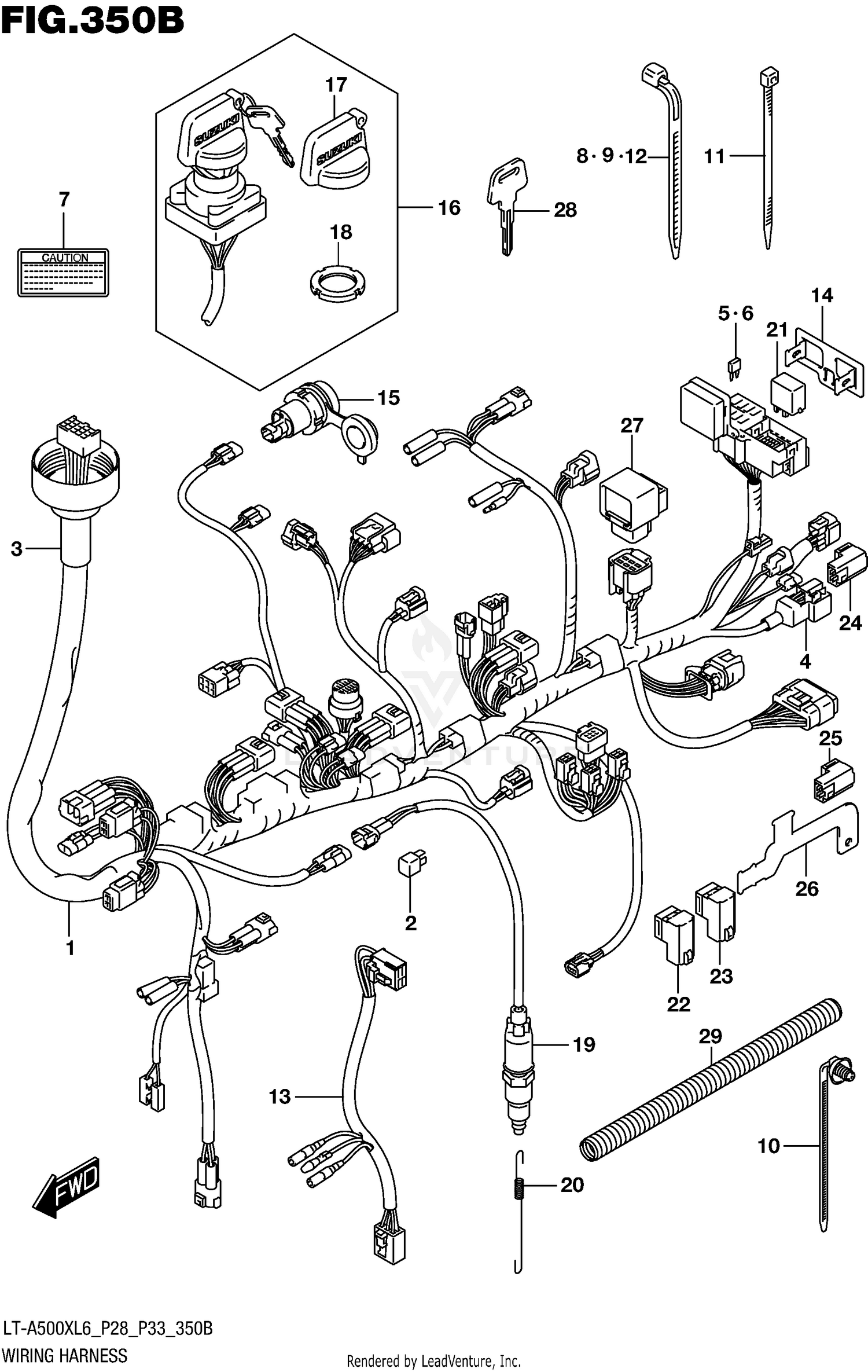

Wiring Harness (lt-a500xl6 P33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, WIRING
36610-11H60
|
$686.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
.RECTIFIER ASSY
32800-16A00
|
$29.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
.COVER, SPEED
36618-31G00
|
$11.66 | ||
|
Available to order. Add to View Price |
|||
|
#4
.COVER, CONNECTOR
36618-31G10
|
$10.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
.FUSE (10A)
09481-10501
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#6
.FUSE (15A)
09481-15501
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#7
LABEL, POWER SOUECE TERMINAL
38852-09F50
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP (L:95)
09407-11401
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CLAMP (L:154)
09407-17403
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP (L:145)
09407-14407
|
$3.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CLAMP (L:190)
09407-19401
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
WIRE, FRONT BRAKE SW LEAD
36855-27H00
|
$55.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET,FUSE BOX
36744-38F00
|
$12.84 | ||
|
Available to order. Add to View Price |
|||
|
#15
TERMINAL, POWER SOURCE
38850-03G10
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SWITCH ASSY,IGNITION
37110-38F00
Superseded by 37110-38F01
|
$105.61 | ||
|
Available to order. Add to View Price |
|||
|
#17
.MASCOT,KEY
37142-19B00
Superseded by 37142-19B01
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
.NUT,IGNITION SWITCH
37112-24500
|
$12.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
SWITCH ASSY,STOP LAMP
37740-38F01
|
$129.48 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING
09443-06080
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#21
RELAY,NEUTRAL START
38730-09F00
|
$60.10 | ||
|
Available to order. Add to View Price |
|||
|
#22
RELAY ASSY,FUEL
38740-31G01
Superseded by 38740-31G02
|
$49.22 | ||
|
Available to order. Add to View Price |
|||
|
#23
RELAY ASSY,FUEL
38740-31G01
Superseded by 38740-31G02
|
$49.22 | ||
|
Unavailable |
|||
|
#24
RELAY ASSY,FUEL
38740-31G01
Superseded by 38740-31G02
|
$49.22 | ||
|
Unavailable |
|||
|
#25
RELAY ASSY
38740-31G10
Superseded by 38740-31G11
|
$36.45 | ||
|
Available to order. Add to View Price |
|||
|
#26
BRACKET, RELAY
38741-31G30
|
$20.48 | ||
|
Available to order. Add to View Price |
|||
|
#27
RELAY ASSY, DRIVE
38750-31G00
|
$156.64 | ||
|
Available to order. Add to View Price |
|||
|
#28-1
KEY,BLANK (TYPE:C)
37146-19B00
|
$10.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28-2
KEY,BLANK (TYPE:D)
37146-19B10
|
$10.41 | ||
|
Available to order. Add to View Price |
|||
|
#28-3
KEY,BLANK (TYPE:E)
37146-19B20
|
$10.41 | ||
|
Available to order. Add to View Price |
|||
|
#28-4
KEY,BLANK (TYPE:F)
37146-19B30
|
$10.41 | ||
|
Available to order. Add to View Price |
|||
|
#29
GUIDE, WIRING HARNESS
36619-31G00
|
$20.42 | ||
|
Available to order. Add to View Price |
|||
