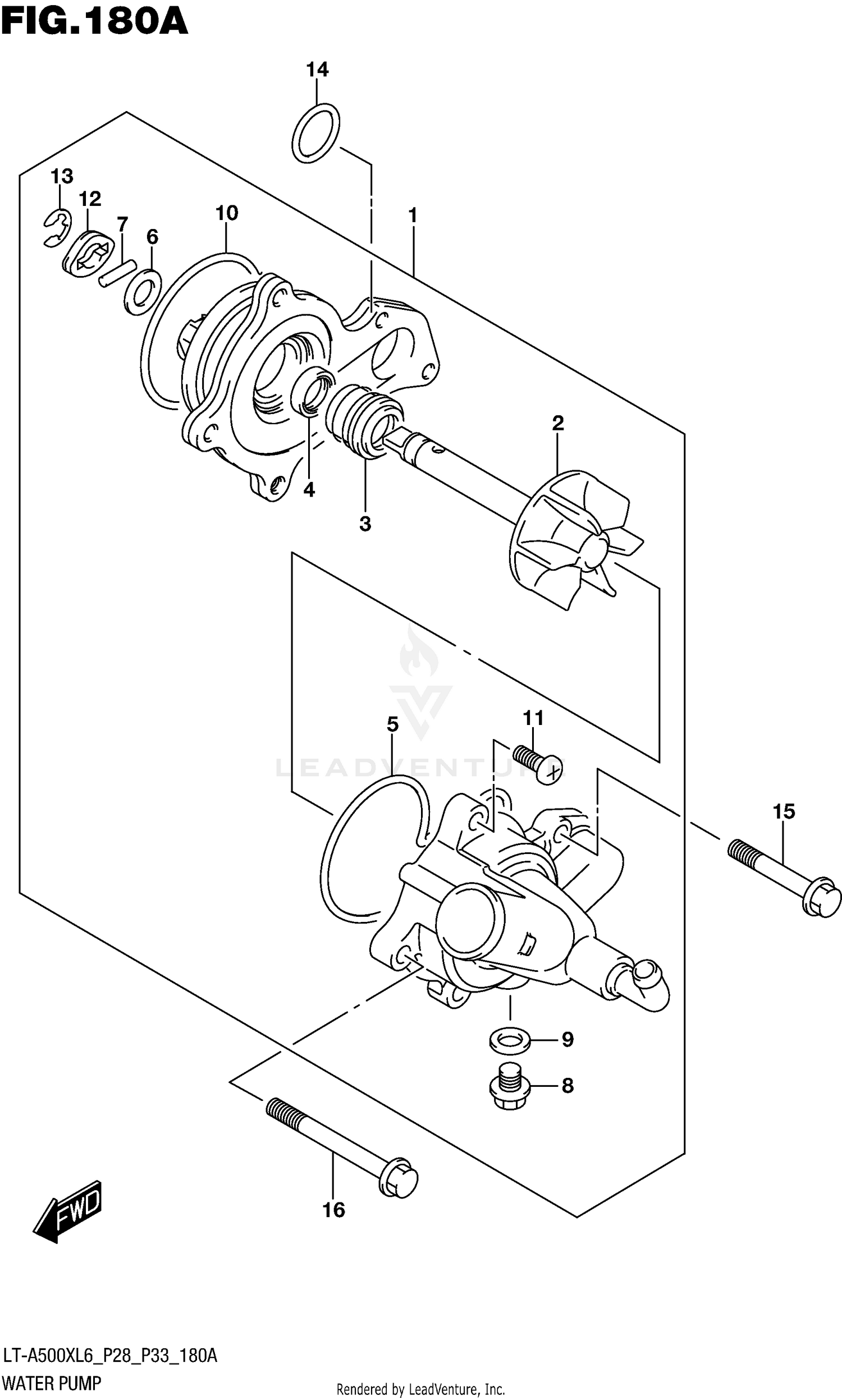

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY,WATER
17400-11H20
Superseded by 17400-11H21
|
$223.79 | ||
|
Available to order. Add to View Price |
|||
|
#2
.IMPELLER
17491-11H00
|
$63.72 | ||
|
Available to order. Add to View Price |
|||
|
#3
.SEAL, MECHANICAL
17470-02F01
|
$59.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
.OIL SEAL
17461-48G00
|
$17.57 | ||
|
Available to order. Add to View Price |
|||
|
#5
.O RING
17418-11H00
Superseded by 17418-11H01
|
$14.76 | ||
|
Unavailable |
|||
|
#6
.WASHER
17432-07G00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
.PIN
17482-03G00
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#8
.BOLT
17415-20920
|
$9.52 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET (8.2X14X1)
09168-08016
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
.O RING
17435-33400
|
$19.74 | ||
|
Available to order. Add to View Price |
|||
|
#11
.SCREW
02112-0616A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
.CAP
17432-11H00
|
|||
|
Unavailable |
|||
|
#13
.E RING
08332-1108A
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#14
O RING (D:2.4,ID:21.8)
09280-22001
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (6X30)
09103-06297
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01547-0645A
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
