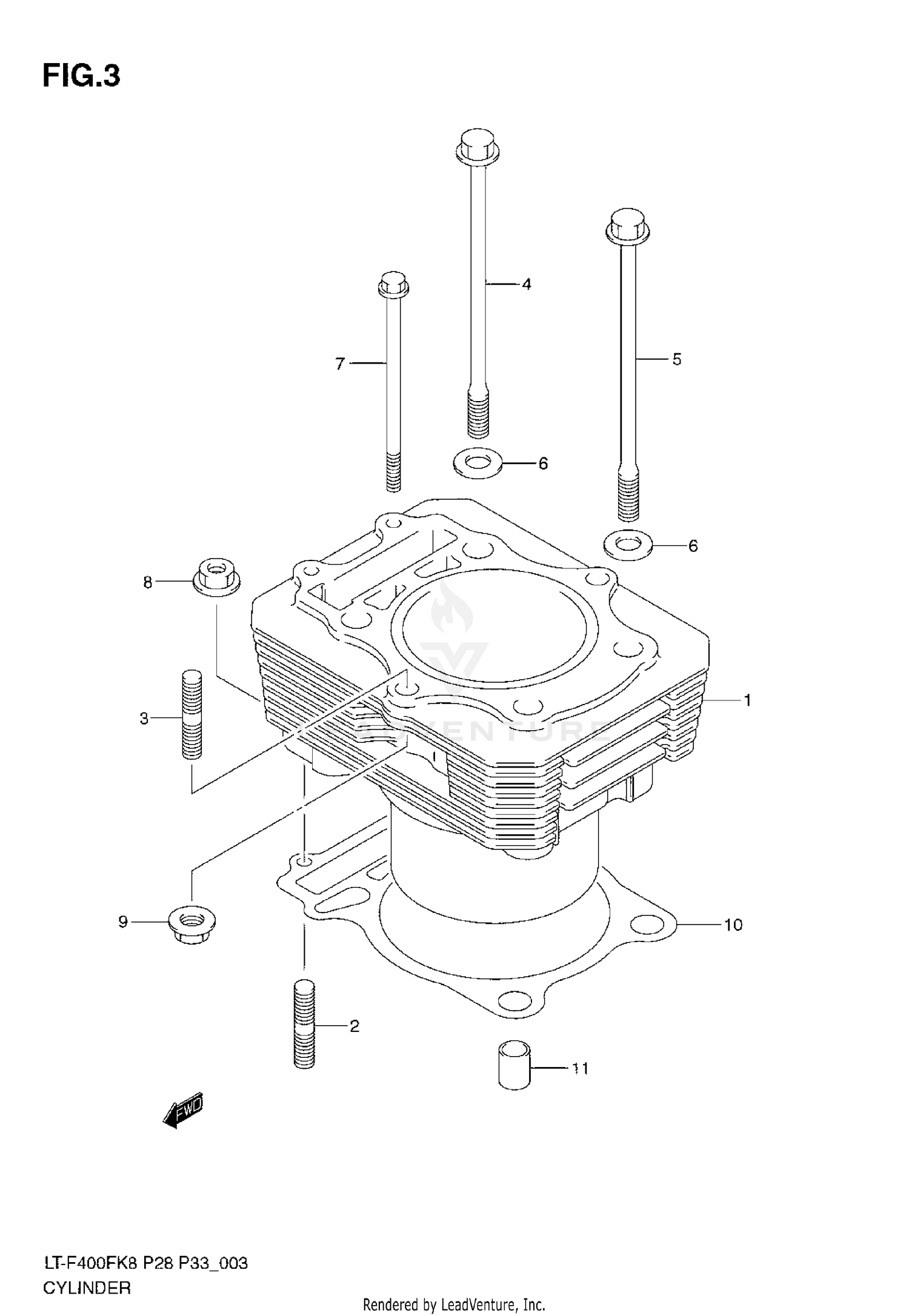

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER
11210-27H00-0F0
|
$766.43 | ||
|
Available to order. Add to View Price |
|||
|
#2
STUD BOLT
01421-0620B
|
|||
|
Unavailable |
|||
|
#3
STUD BOLT (8X30)
09108-08142
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BOLT (10X180)
09103-10178
|
$18.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (10X170)
09103-10321
|
$16.61 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
09160-10039
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (6X115)
09103-06167
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
08316-1006B
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
.NUT
08316-1008B
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, CYLINDER
11241-38F00
|
$17.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN
04211-13189
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
