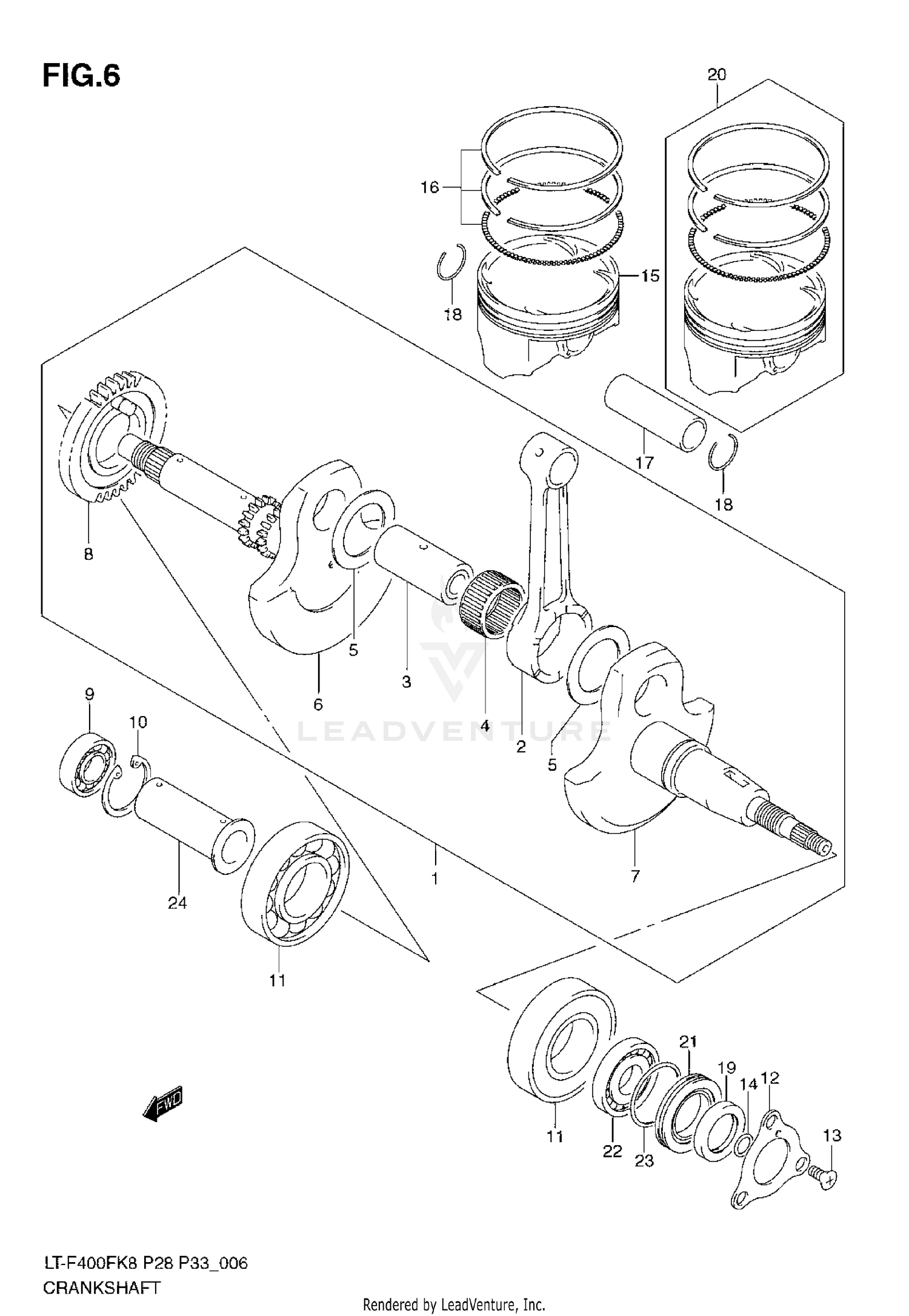

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT SET
12200-38861
|
$1,192.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
ROD, CONNECTING
12161-14D00
|
$168.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
.PIN, CRANK
12210-14D03
|
$97.23 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING (34X43X22)
09263-34005
|
$87.88 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
09160-34003
|
$9.37 | ||
|
Available to order. Add to View Price |
|||
|
#6
.CRANKSHAFT, RH (NT:24)
12220-38F61
|
$407.23 | ||
|
Available to order. Add to View Price |
|||
|
#7
.CRANKSHAFT, LH
12261-38F60
|
$360.52 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, CRANK BALANCER DRIVE
12661-38F01
|
$140.97 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING (15X35X11)
09262-15014
|
$28.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
08331-41356
Superseded by 08331-41359
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
09262-35038
|
$58.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
RETAINER, CRANKSHAFT OIL SEAL LH
12541-46510
|
$9.92 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW (6X12)
09126-06011
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#14
O RING (D:1.9,ID:12.6)
09280-12009
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PISTON
12111-38F21-0F0
|
$122.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING SET, PISTON (STD)
12140-38F10
|
$68.38 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN,PISTON
12151-24A00
|
$28.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP
09381-20004
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
OIL SEAL (25X36X6)
09283-25094
|
$33.71 | ||
|
Available to order. Add to View Price |
|||
|
#20
PISTON SET,OS0.5 (OS:0.5)
12100-38F21-050
|
$196.15 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER, RECOIL STARTER CUP BRG
12359-44D20
|
$36.32 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, RECOIL STARTER CUP
09262-25006
|
$32.19 | ||
|
Available to order. Add to View Price |
|||
|
#23
O RING
09280-44007
|
$15.32 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPACER, CRANKSHAFT, RH
12222-38F50
|
$46.53 | ||
|
Unavailable |
|||
