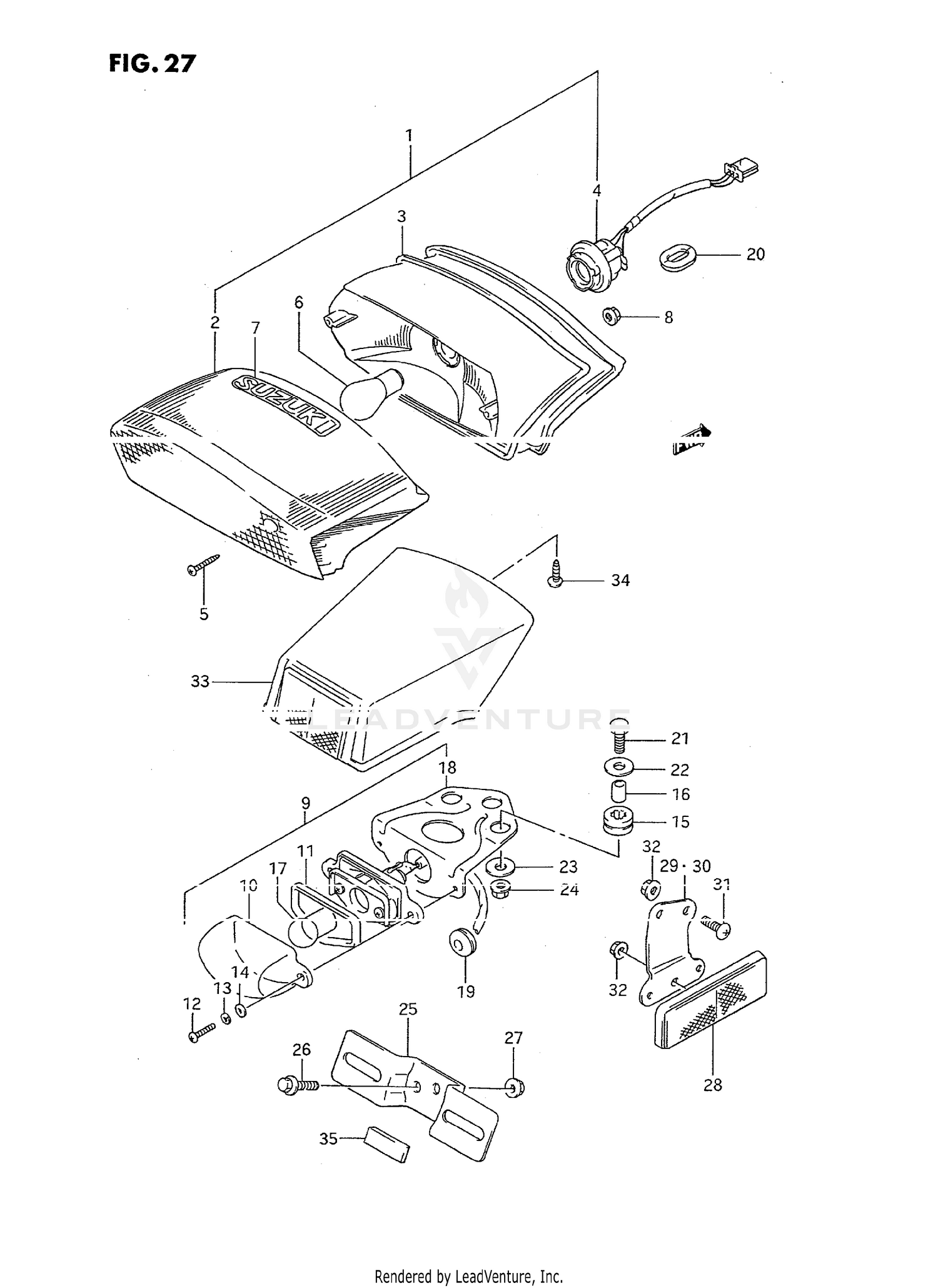

Tail Lamp - License Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, REAR COMBINATION
35710-19C00-22R
Superseded by 35710-19C30
|
$106.34 | ||
|
Available to order. Add to View Price |
|||
|
#1
LAMP ASSY, REAR COMBINATION
35710-19C00-764
Superseded by 35710-19C30
|
$106.34 | ||
|
Unavailable |
|||
|
#1
LAMP ASSY, REAR COMBINATION
35710-19C00-742
Superseded by 35710-19C30
|
$106.34 | ||
|
Unavailable |
|||
|
#1
LAMP ASSY, REAR COMBINATION
35710-19C00-0JW
Superseded by 35710-19C30
|
$106.34 | ||
|
Unavailable |
|||
|
#1
LAMP ASSY, REAR COMBINATION
35710-19C30
|
$106.34 | ||
|
Unavailable |
|||
|
#2
LENS
35712-19C00
|
$63.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
35713-19C00
|
$7.23 | ||
|
Available to order. Add to View Price |
|||
|
#4
SOCKET
35718-19C00
|
$40.32 | ||
|
Unavailable |
|||
|
#5
SCREW
03211-04203
Superseded by 03211-04207
|
$1.63 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB (12V,21/5W)
09471-12128
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
EMBLEM, SUZUKI (SILVER)
68165-16B00-22R
Superseded by 68165-16B00-0JW
|
$4.71 | ||
|
Unavailable |
|||
|
#7
EMBLEM, SUZUKI (GOLD)
68165-16B00-764
|
$3.35 | ||
|
Unavailable |
|||
|
#7
EMBLEM,SUZUK
68165-16B00-742
Superseded by 68165-16B01-13L
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
EMBLEM, SUZUKI (SILVER)
68165-16B00-0JW
|
$4.71 | ||
|
Unavailable |
|||
|
#8
NUT
08316-20063
Superseded by 08316-2006A
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#9
LAMP ASSY, LICENSE
35910-19C00
|
$74.18 | ||
|
Unavailable |
|||
|
#10
LENS
35912-00A10
|
$13.64 | ||
|
Unavailable |
|||
|
#11
GASKET
35913-04A00
|
$3.45 | ||
|
Unavailable |
|||
|
#12
SCREW
02112-04167
Superseded by 02112-0416A
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
02112-04163
Superseded by 02112-0416A
|
$1.56 | ||
|
Unavailable |
|||
|
#13
LOCK WASHER
08321-01043
Superseded by 08321-0104A
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
08322-01047
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION
35765-35300
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER
35766-19C00
|
$1.93 | ||
|
Unavailable |
|||
|
#17
BULB (12V,5W)
09471-12058
|
$1.72 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET, LICENSE LAMP
35916-19C00
|
$10.77 | ||
|
Unavailable |
|||
|
#19
GROMMET
09308-07009
|
$1.09 | ||
|
Unavailable |
|||
|
#20
GROMMET
09308-12007
|
$1.61 | ||
|
Unavailable |
|||
|
#21
BOLT, GEAR SHIFT LINK
01500-06203
Superseded by 01500-0620A
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT (6X20)
09116-06056
Superseded by 09116-06115
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
09116-06115
|
$2.46 | ||
|
Unavailable |
|||
|
#22
WASHER (6.5X20X1.2)
09160-06027
Superseded by 09160-06077
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER (6.5X20X1.2)
09160-06060
Superseded by 09160-06077
|
$2.37 | ||
|
Unavailable |
|||
|
#23
WASHER (6.5X20X1.2)
09160-06077
|
$2.37 | ||
|
Unavailable |
|||
|
#24
NUT
08316-20063
Superseded by 08316-2006A
|
$2.87 | ||
|
Unavailable |
|||
|
#25
BRACKET, LICENSE PLATE
35927-00A30
|
$9.96 | ||
|
Unavailable |
|||
|
#26
BOLT
01517-06254
Superseded by 01550-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#26
.SCREW
02142-06164
Superseded by 02142-0616A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#26
.SCREW
02142-06163
Superseded by 02142-0616A
|
$1.70 | ||
|
Unavailable |
|||
|
#26
SCREW
02112-06163
Superseded by 02112-0616A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT
08316-20063
Superseded by 08316-2006A
|
$2.87 | ||
|
Unavailable |
|||
|
#27
NUT
08310-00063
Superseded by 08310-0006A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#28
REFLECTOR, REAR
35970-00A21
Superseded by 35970-00A10
|
$22.09 | ||
|
Available to order. Add to View Price |
|||
|
#28
REFLEX REFLECTOR, RR SIDE
35970-24D60
|
$29.33 | ||
|
Available to order. Add to View Price |
|||
|
#29
BRACKET, RH
35975-19C00
Superseded by 35975-20C01
|
$4.89 | ||
|
Unavailable |
|||
|
#29
BRACKET, RH
35975-19C01
Superseded by 35975-20C01
|
$4.89 | ||
|
Unavailable |
|||
|
#29
BRACKET, RH
35975-20C01
|
$4.89 | ||
|
Unavailable |
|||
|
#30
BRACKET, LH
35976-19C00
Superseded by 35976-20C01
|
$4.89 | ||
|
Unavailable |
|||
|
#30
BRACKET, LH
35976-19C01
Superseded by 35976-20C01
|
$4.89 | ||
|
Unavailable |
|||
|
#30
BRACKET, LH
35976-20C01
|
$4.89 | ||
|
Unavailable |
|||
|
#31
.SCREW
02142-05124
Superseded by 02142-0512A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#31
.SCREW
02142-05123
Superseded by 02142-0512A
|
$1.70 | ||
|
Unavailable |
|||
|
#32
NUT
08316-26055
Superseded by 08316-2005A
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#32
.NUT
08310-00053
Superseded by 08310-0005A
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#33
COVER, LICENSE LAMP
35917-19C00
|
$26.64 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW
03541-05163
Superseded by 03541-0516A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#35
CUSHION
35995-05C00
Superseded by 33652-49000
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
