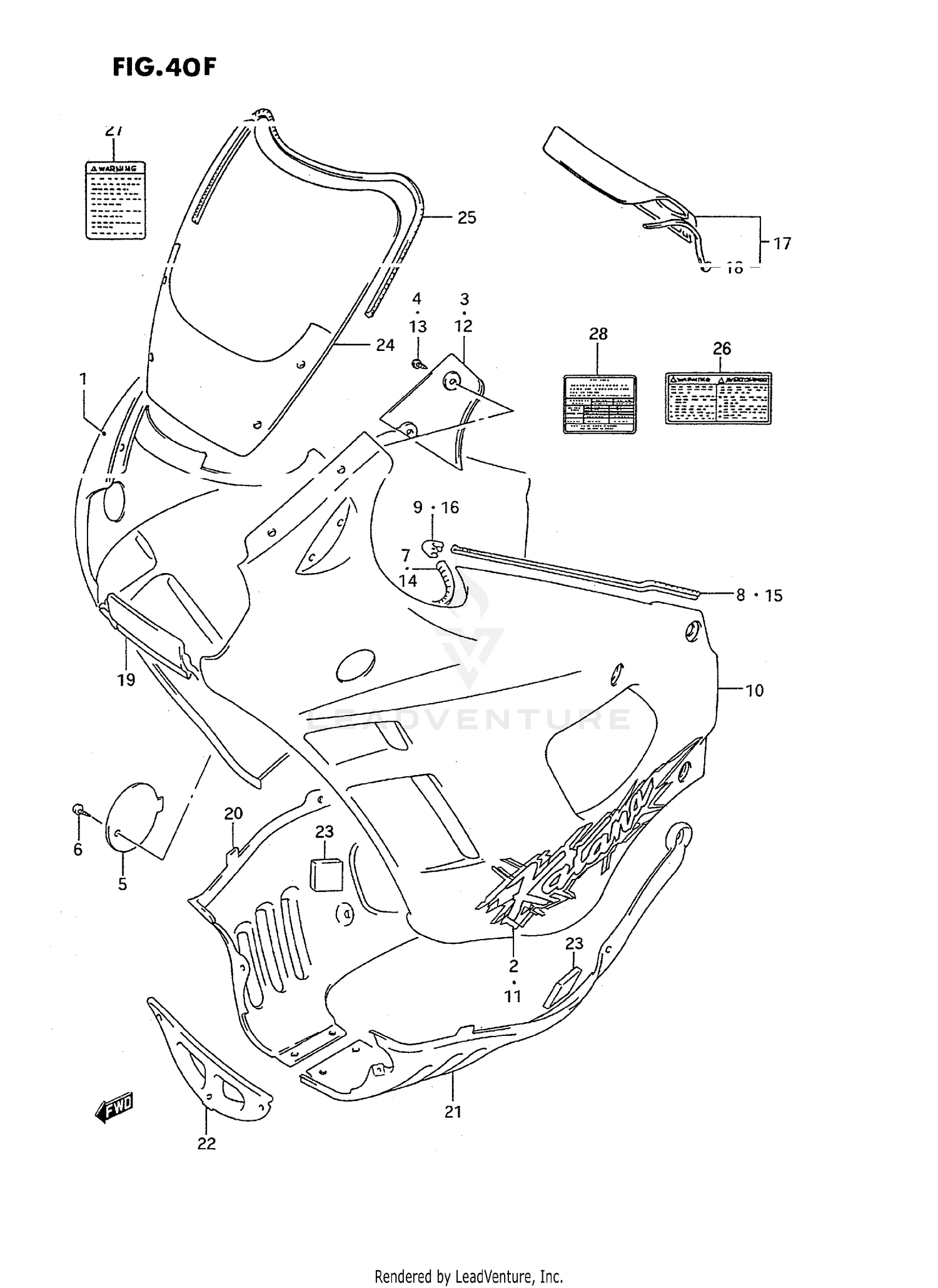

Cowling Body (model R) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
94401-43CB0-1TY
Superseded by 94401-43CB1-1TY
|
$545.68 | ||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
94401-43CB0-33J
Superseded by 94401-43CB1-33J
|
$545.68 | ||
|
Available to order. Add to View Price |
|||
|
#2
EMBLEM, KATANA, RH
68681-43C10-C3E
|
$100.09 | ||
|
Unavailable |
|||
|
#2
EMBLEM, KATANA, RH
68681-43C10-C3F
|
$71.71 | ||
|
Unavailable |
|||
|
#3
COVER, METER RH (RED)
94433-19C01-1TY
|
$23.79 | ||
|
Unavailable |
|||
|
#3
COVER, METER RH (BLACK)
94433-19C01-33J
|
$32.64 | ||
|
Unavailable |
|||
|
#4
SCREW
03541-04103
Superseded by 03541-0410A
|
$1.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
LID, OIL (RED)
94435-19C01-1TY
|
$32.65 | ||
|
Unavailable |
|||
|
#5
LID, OIL (BLACK)
94435-19C01-33J
|
$41.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
09139-06030
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
MOLDING
94631-49310
|
$16.72 | ||
|
Available to order. Add to View Price |
|||
|
#8
MOLDING
94635-19C00
|
$9.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
JOINT
94438-19C00
|
$10.98 | ||
|
Unavailable |
|||
|
#10
NO DESCRIPTION AVAILABLE
94402-43CB0-1TY
Superseded by 94402-43CB1-1TY
|
$379.86 | ||
|
Unavailable |
|||
|
#10
COVER ASSY,COWL
94402-43CB0-33J
Superseded by 94402-43CB1-33J
|
$584.46 | ||
|
Available to order. Add to View Price |
|||
|
#11
EMBLEM, KATANA,LH
68691-43C10-C3E
|
$107.79 | ||
|
Unavailable |
|||
|
#11
EMBLEM, KATANA,LH
68691-43C10-C3F
|
$100.09 | ||
|
Unavailable |
|||
|
#12
COVER, METER LH (RED)
94443-19C01-1TY
|
$48.08 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, METER LH (BLACK)
94443-19C01-33J
|
$32.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
03541-04103
Superseded by 03541-0410A
|
$1.84 | ||
|
Unavailable |
|||
|
#14
MOLDING
94631-49310
|
$16.72 | ||
|
Unavailable |
|||
|
#15
MOLDING
94635-19C00
|
$9.64 | ||
|
Unavailable |
|||
|
#16
JOINT
94438-19C00
|
$10.98 | ||
|
Unavailable |
|||
|
#17
COVER, METER
94420-19C02
|
$83.36 | ||
|
Available to order. Add to View Price |
|||
|
#18
MOLDING, LICENSE HOLDER
94635-19C10
Superseded by 94635-19C00
|
$9.64 | ||
|
Unavailable |
|||
|
#19
PANEL, COW CENTER (RED)
94421-19C01-1TY
|
$65.82 | ||
|
Available to order. Add to View Price |
|||
|
#19
PANEL, COW CENTER (BLACK)
94421-19C01-33J
|
$57.47 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, COW UNDER RH (RED)
94471-19C00-1TY
|
$152.19 | ||
|
Unavailable |
|||
|
#20
COVER, COW UNDER RH (PURPLE)
94471-19C00-1TU
|
$160.11 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, COW UNDER LH (RED)
94481-19C00-1TY
|
$169.51 | ||
|
Unavailable |
|||
|
#21
COVER, COW UNDER LH (PURPLE)
94481-19C00-1TU
|
$160.11 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, COW UNDER FRONT (BLACK
94475-19C01
|
$30.48 | ||
|
Available to order. Add to View Price |
|||
|
#23
CUSHION,REAR BAG
94475-48B10
Superseded by 94915-44E00
|
$14.27 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREEN, WINDOW
94610-19C60
|
$218.77 | ||
|
Available to order. Add to View Price |
|||
|
#25
MOLDING
94631-18D01
|
$19.61 | ||
|
Available to order. Add to View Price |
|||
|
#26
LABEL, WARNING SAFETY
68319-40C10
Superseded by 68319-33E11
|
$11.33 | ||
|
Available to order. Add to View Price |
|||
|
#27
LABEL,SCREEN
68612-48B00
Superseded by 68922-14F01
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#27
LABEL, SCREEN
68612-48B10
Superseded by 68922-14F30
|
$5.37 | ||
|
Unavailable |
|||
|
#28
NO DESCRIPTION AVAILABLE
68332-19C10
Superseded by 68332-19C12
|
$4.07 | ||
|
Unavailable |
|||
|
#29
REFER TO FIG.40G(I- 8) FOR
SPECIAL NOTE
|
|||
|
Unavailable |
|||
