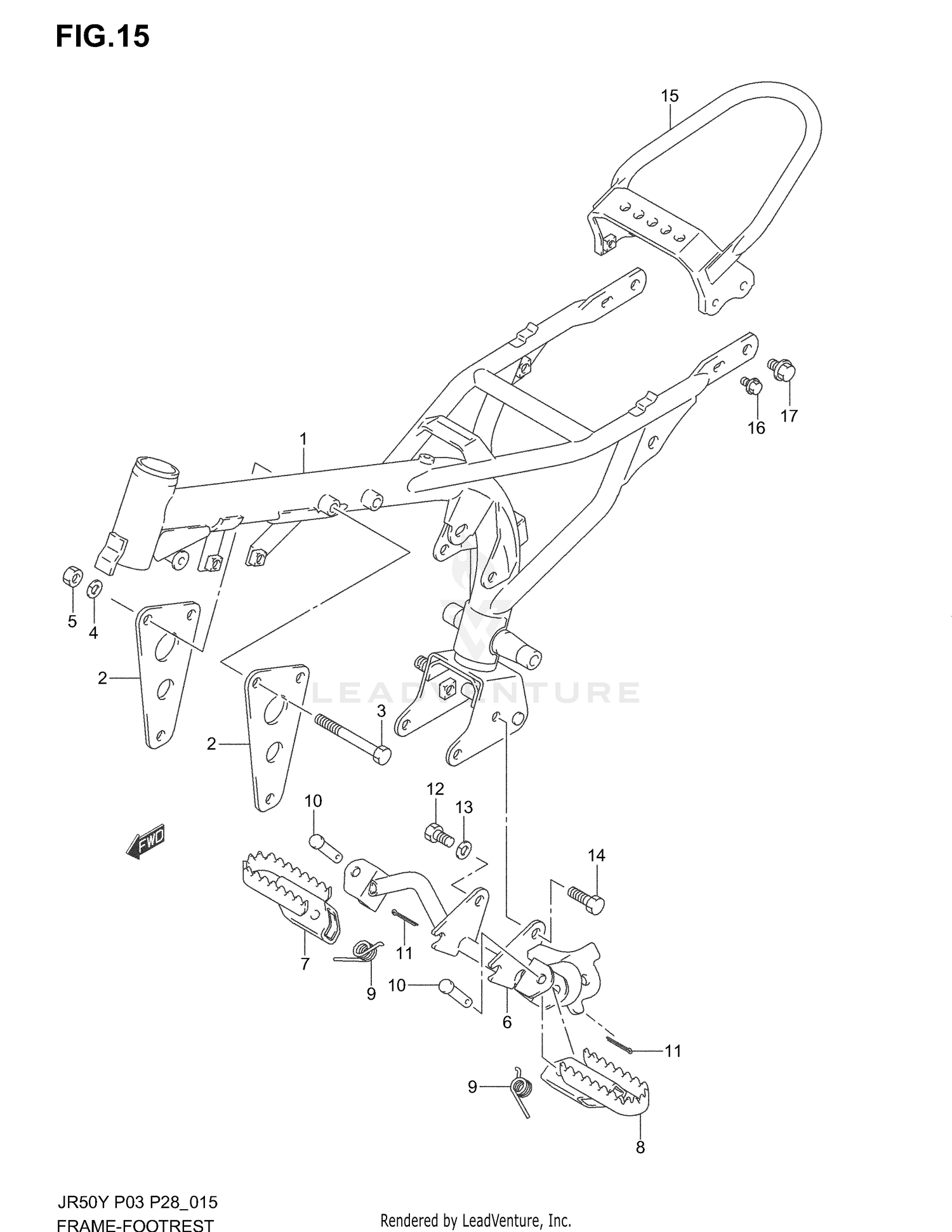

Frame/footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME (BLACK)
41100-09AA0-019
|
$492.01 | ||
|
Unavailable |
|||
|
#2
PLATE, MOUNTING
41991-04410
|
$7.99 | ||
|
Unavailable |
|||
|
#3
BOLT
01500-08703
Superseded by 01500-0870B
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER,LOCK
08321-01083
Superseded by 08321-0108A
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
08310-00083
Superseded by 08310-0008A
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAR, FRONT FOOTREST
43510-04411
|
$37.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
FOOTREST, FRONT RH
43550-46000-019
|
$22.90 | ||
|
Available to order. Add to View Price |
|||
|
#8
FOOTREST, FRONT LH
43560-46000-019
|
$23.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SPRING
09448-14012
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN
09200-08002
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#11
.COTTER PIN
04111-20158
Superseded by 04111-2015A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG, DRAIN
01500-08163
Superseded by 01500-0816B
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER,LOCK
08321-01083
Superseded by 08321-0108A
|
$2.30 | ||
|
Unavailable |
|||
|
#14
BOLT, LH
09100-08143
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#15
GRIP, REAR
43980-09AA0
|
$47.67 | ||
|
Unavailable |
|||
|
#16
BOLT
01550-06103
Superseded by 01550-0610A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (8X12)
01550-08123
Superseded by 01550-0812A
|
$2.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
