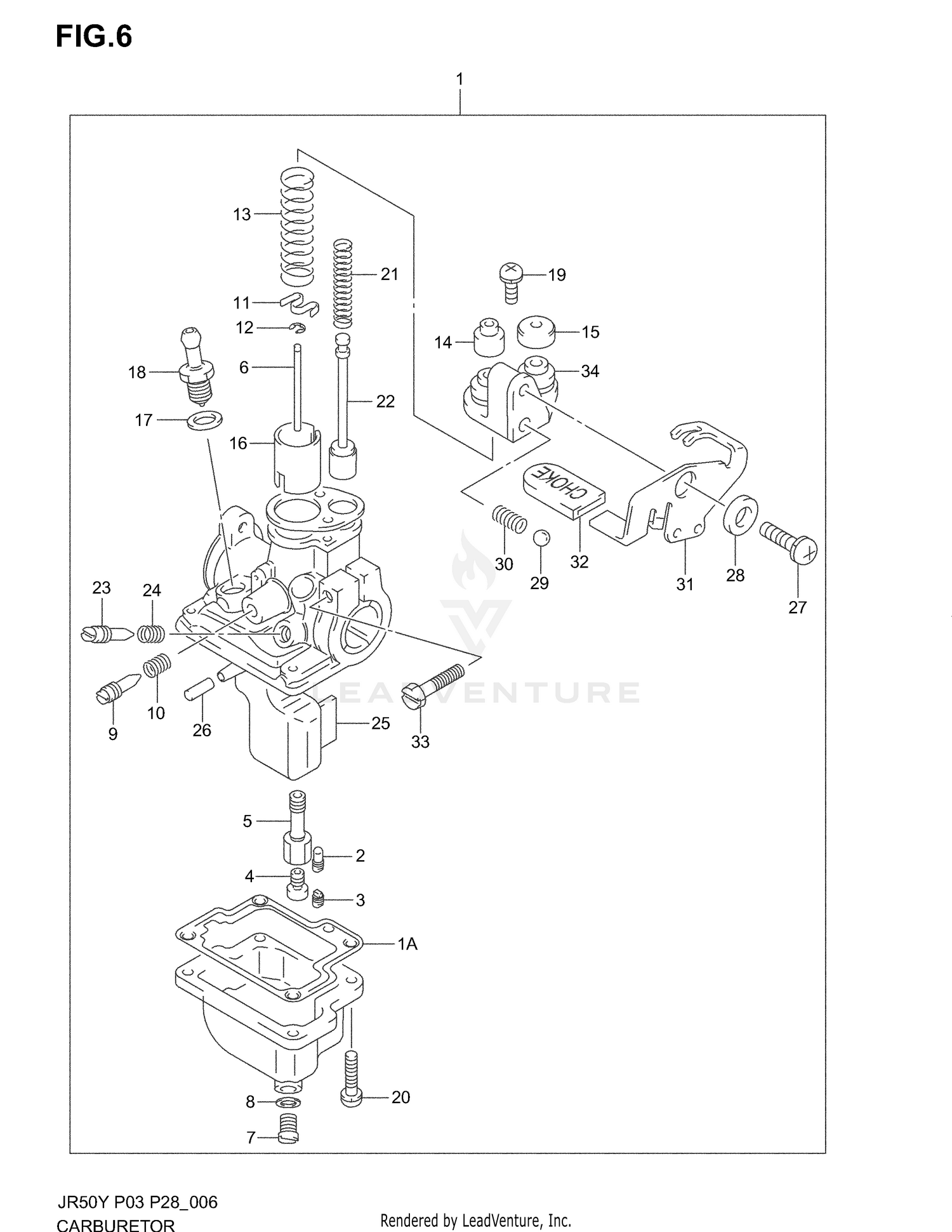

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY
13200-04450
|
$200.93 | ||
|
Available to order. Add to View Price |
|||
|
#1A
GASKET, FLOAT CHAMBER
13251-04110
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#2
JET, PILOT NO.1 (15)
09492-15015
|
$18.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
JET, PILOT NO.2
09492-15009
|
$10.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
JET, MAIN (56.3)
09491-56002
|
$10.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, NEEDLE (E-6)
09494-00933
|
$25.08 | ||
|
Available to order. Add to View Price |
|||
|
#6
NEEDLE, JET (3D23-3)
13383-13670
|
$17.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG, DRAIN
13247-05010
|
$6.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, DRAIN PLUG
13249-05010
|
$2.26 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, THROTTLE STOP
13267-01010
|
$8.50 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, STOP SCREW
13268-01010
|
$5.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
.SEAT,THROTTLE VALVE SPRING
13581-04010
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#12
.CLIP,NEEDLE
13394-40D00
|
$5.97 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, THROTTLE VALVE
13573-01010
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
.CAP
13681-04010
Superseded by 13681-04011
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, STARTER
13682-98010
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
VALVE, THROTTLE (CA:3.0)
13551-04110
|
$29.92 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET, VALVE SEAT
13663-31010
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#18
VALVE ASSY, NEEDLE
13370-04450
|
$43.23 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
02112-34103
Superseded by 02112-3410A
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
02112-34123
Superseded by 02112-3412B
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#21
.SPRING,STARTER VALVE
13417-43010
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
VALVE, STARTER
13411-04410
|
$19.04 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PILOT AIR
13269-04010
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING
13268-01010
|
$5.80 | ||
|
Unavailable |
|||
|
#25
FLOAT
13252-04011
|
$30.76 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, FLOAT
13254-04010
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW
13601-06128
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
RING
13424-30650
|
$7.07 | ||
|
Available to order. Add to View Price |
|||
|
#29
BALL
13435-33110
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPRING
13434-30650
|
$4.77 | ||
|
Available to order. Add to View Price |
|||
|
#31
LEVER, STARTER
13413-04450
|
$22.26 | ||
|
Available to order. Add to View Price |
|||
|
#32
CAP, LEVER
13416-28700
|
$6.78 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT
13323-04010
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#34
TOP ASSY
13261-04410
|
$33.43 | ||
|
Available to order. Add to View Price |
|||
