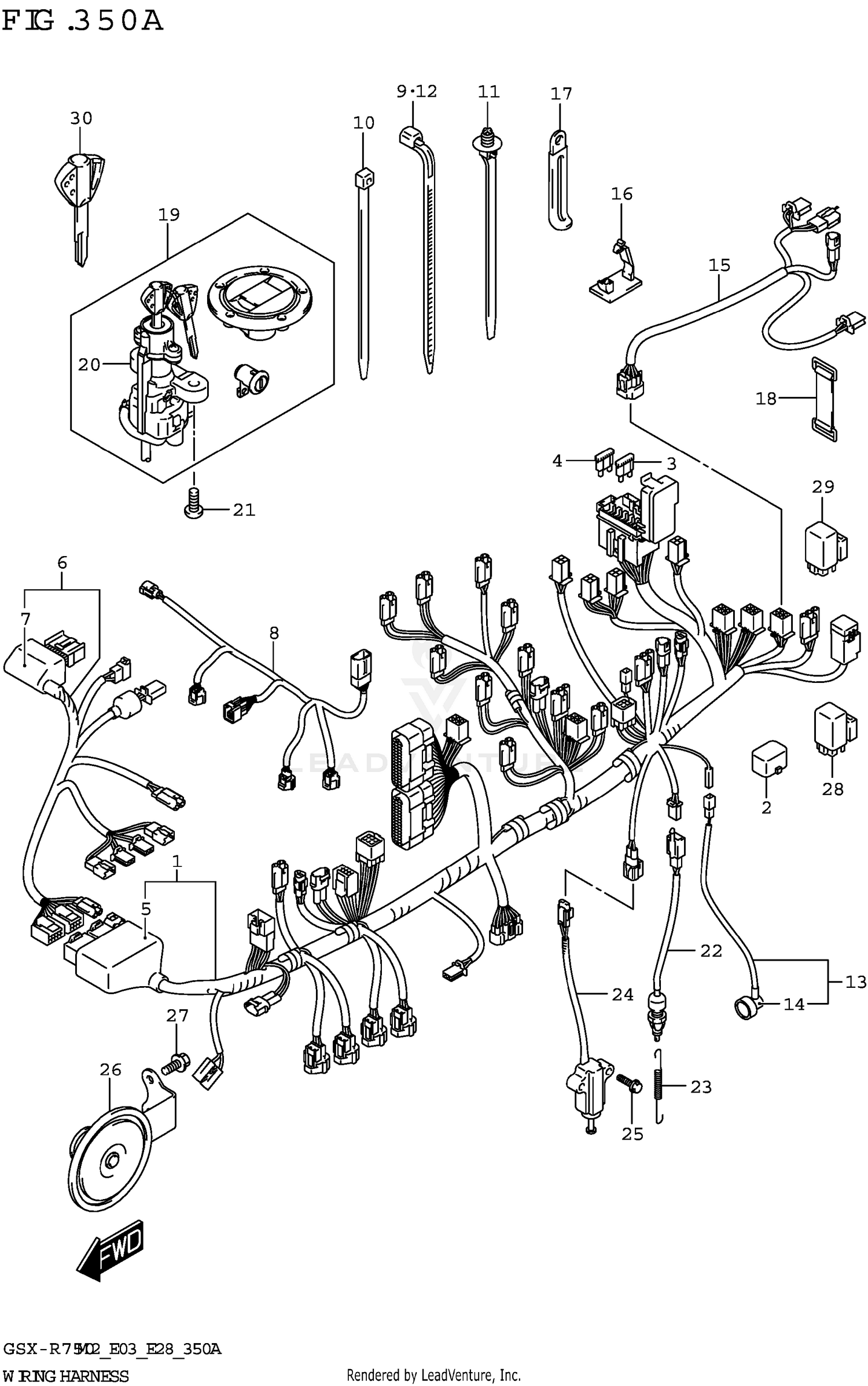

Wiring Harness (e03,e28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS,WIRING NO.1
36610-14JC2
|
$1,085.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
.CAP, TS
36654-06J01
|
$15.63 | ||
|
Available to order. Add to View Price |
|||
|
#3
.FUSE (10A)
09481-10501
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
.FUSE (15A)
09481-15501
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#5
.COVER
36618-18G00
|
$9.12 | ||
|
Unavailable |
|||
|
#6
HARNESS,WIRING NO.2
36620-14J11
|
$263.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
.COVER,CONNECTOR
36618-47H00
|
$25.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
HARNESS,WIRING NO.3
36630-14J11
|
$233.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP (L:95)
09407-11401
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP (L:145)
09407-14407
|
$3.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CLAMP (L:154)
09407-17403
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
WIRE, OIL PRESSURE LEAD
36851-14J01
|
$15.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
.CAP,OIL PRESSURE SWITCH
36618-31J00
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
WIRE,RR COMB LEAD
36859-14J01
|
$62.07 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
09403-04310
|
$5.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#18
BAND
09462-00033
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
LOCK SET
37101-40822
Superseded by 37101-40824
|
$347.28 | ||
|
Unavailable |
|||
|
#20
.LOCK ASSY,STEERING
37100-41G11
Superseded by 37100-41G12
|
$292.99 | ||
|
Unavailable |
|||
|
#21
BOLT (8X20)
09139-08016
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#22
SWITCH ASSY,STOP LAMP
37740-14J00
|
$30.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING
09443-06087
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#24
SWITCH ASSY,SIDE STAND
37840-18J01
Superseded by 37840-18J02
|
$69.93 | ||
|
Unavailable |
|||
|
#25
BOLT (6X20)
01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#26
HORN ASSY
38500-14J00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
.BOLT
01550-0616B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#28
RELAY ASSY
38740-24X50
|
$58.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
RELAY ASSY
38740-24X50
|
$58.35 | ||
|
Unavailable |
|||
|
#30
KEY,BLANK (IMMOBI)
37146-41G00
|
$55.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
