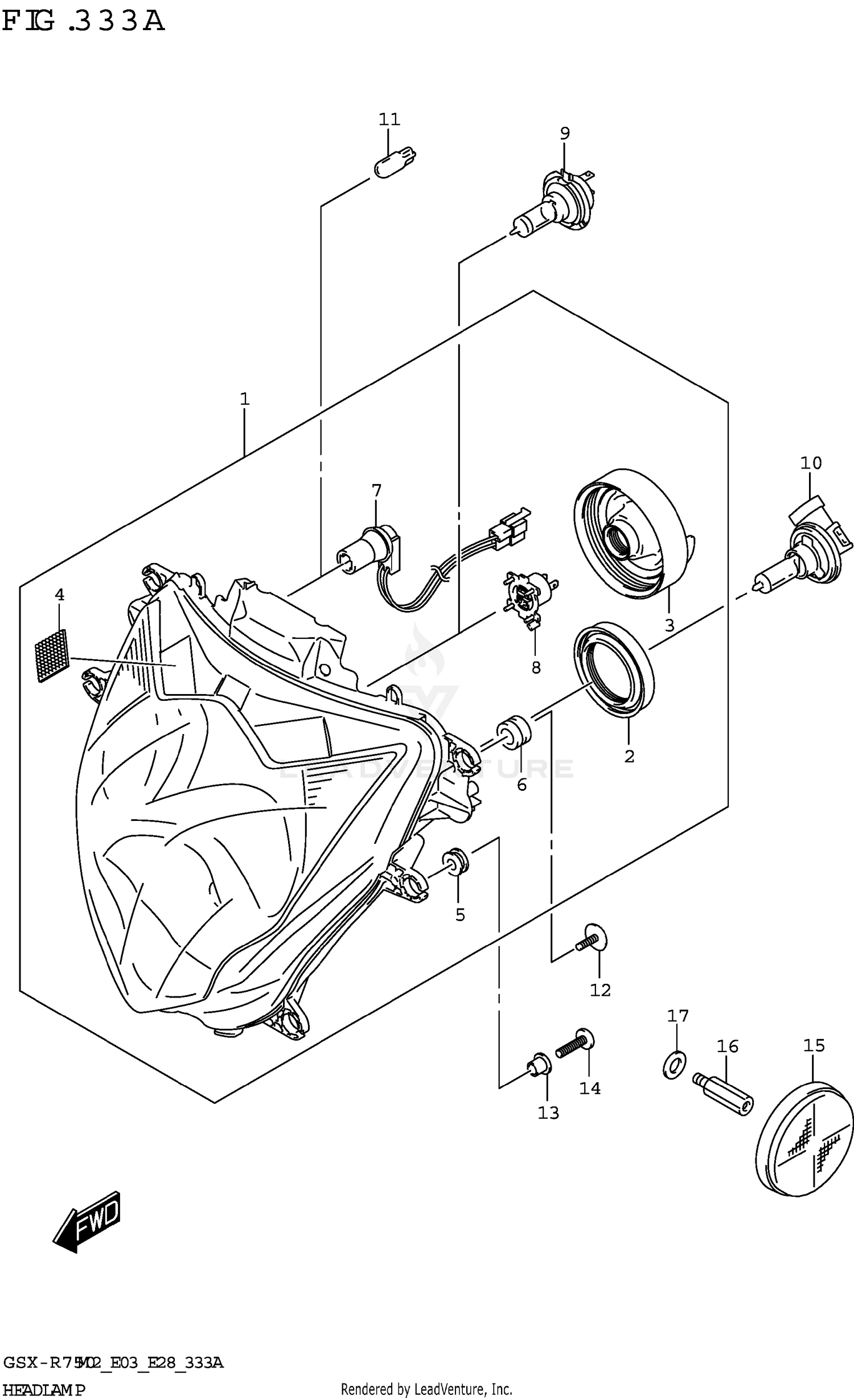

Headlamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLAMP ASSY
35100-14J32-999
|
$484.78 | ||
|
Unavailable |
|||
|
#2
.COVER,SOCKET
35179-01H00
|
$29.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
.COVER,SOCKET
35179-58J00
|
$19.13 | ||
|
Available to order. Add to View Price |
|||
|
#4
FASTENER (25X33X0.8)
44572-02F01
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
.CUSHION
09320-07014
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION (9X18X14)
09320-09059
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
.CORD ASSY
36118-29G51
|
$24.37 | ||
|
Available to order. Add to View Price |
|||
|
#8
.ADAPTER ASSY
37175-14J00
|
$27.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
.BULB (12V55W H7)
09471-12188
|
$28.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
.BULB (12V65W)
09471-12222
|
$89.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
.BULB (12V5W)
09471-12216
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW (5X15)
09136-05062
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
09169-05018
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
02142-0520B
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#15
REFLEX REFLECTOR ASSY,FR SIDE
35950-14A11
|
$19.66 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
09119-06109
|
$14.44 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER (8.5X18X1)
09160-08043
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
