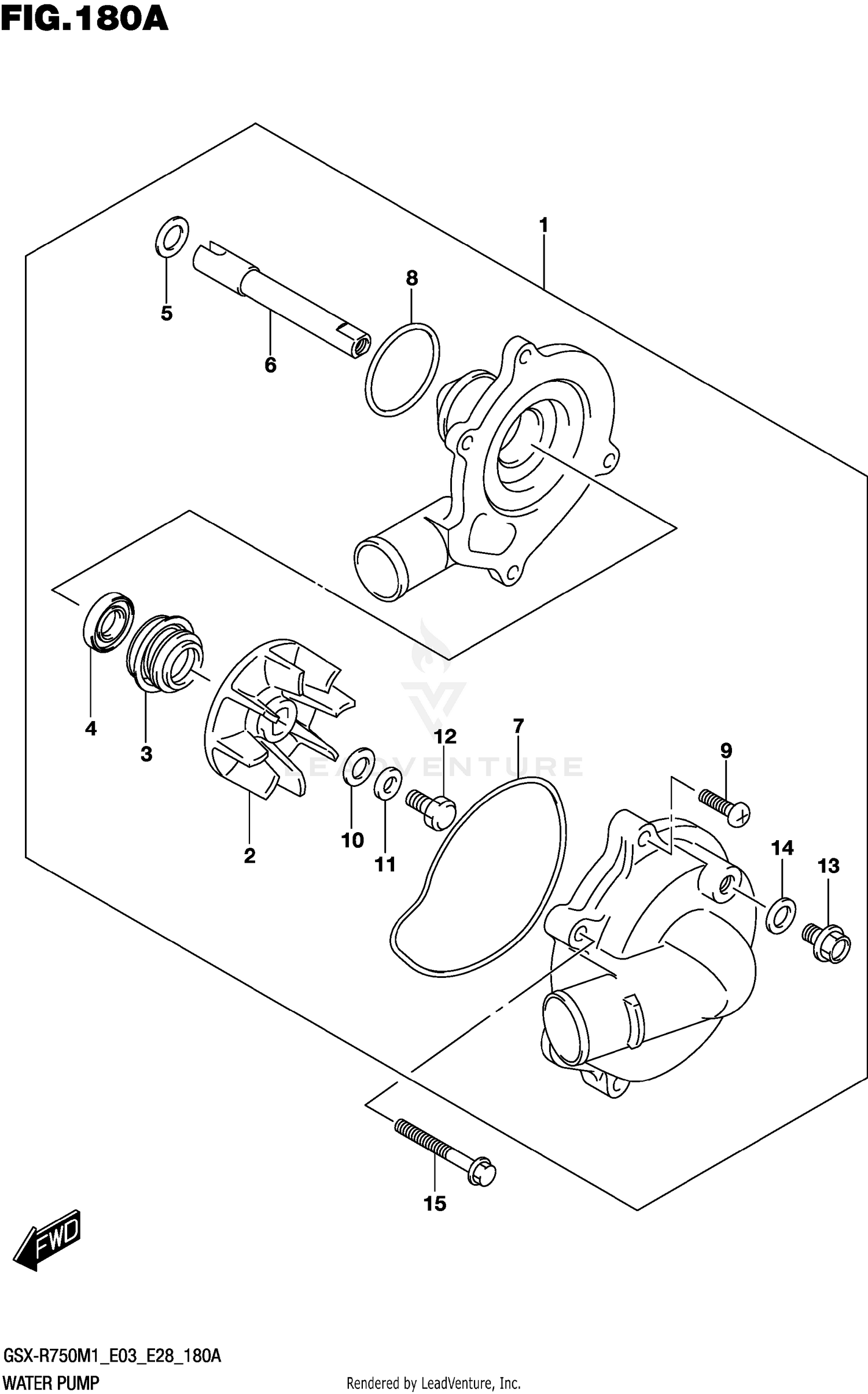

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY,WATER
17400-01H11
|
$369.05 | ||
|
Available to order. Add to View Price |
|||
|
#2
.IMPELLER
17491-01H00
|
$41.52 | ||
|
Available to order. Add to View Price |
|||
|
#3
.SEAL,MECHANICAL
17470-02F11
|
$37.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
.OIL SEAL
17461-01H00
|
$22.72 | ||
|
Available to order. Add to View Price |
|||
|
#5
.WASHER
17432-07G00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SHAFT
17511-01H00
|
$55.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
.O RING
17418-33401
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
.O RING
17435-33400
|
$19.74 | ||
|
Available to order. Add to View Price |
|||
|
#9
.SCREW
02112-0616A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
.GASKET (6X15X2.2)
09168-06025
|
$3.46 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
.WASHER
09164-06006
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
.BOLT (6X13)
09100-06099
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#13
.BOLT
17415-20920
|
$9.52 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET (8.2X14X1)
09168-08008
Superseded by 09168-08016
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT
01547-0635A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
