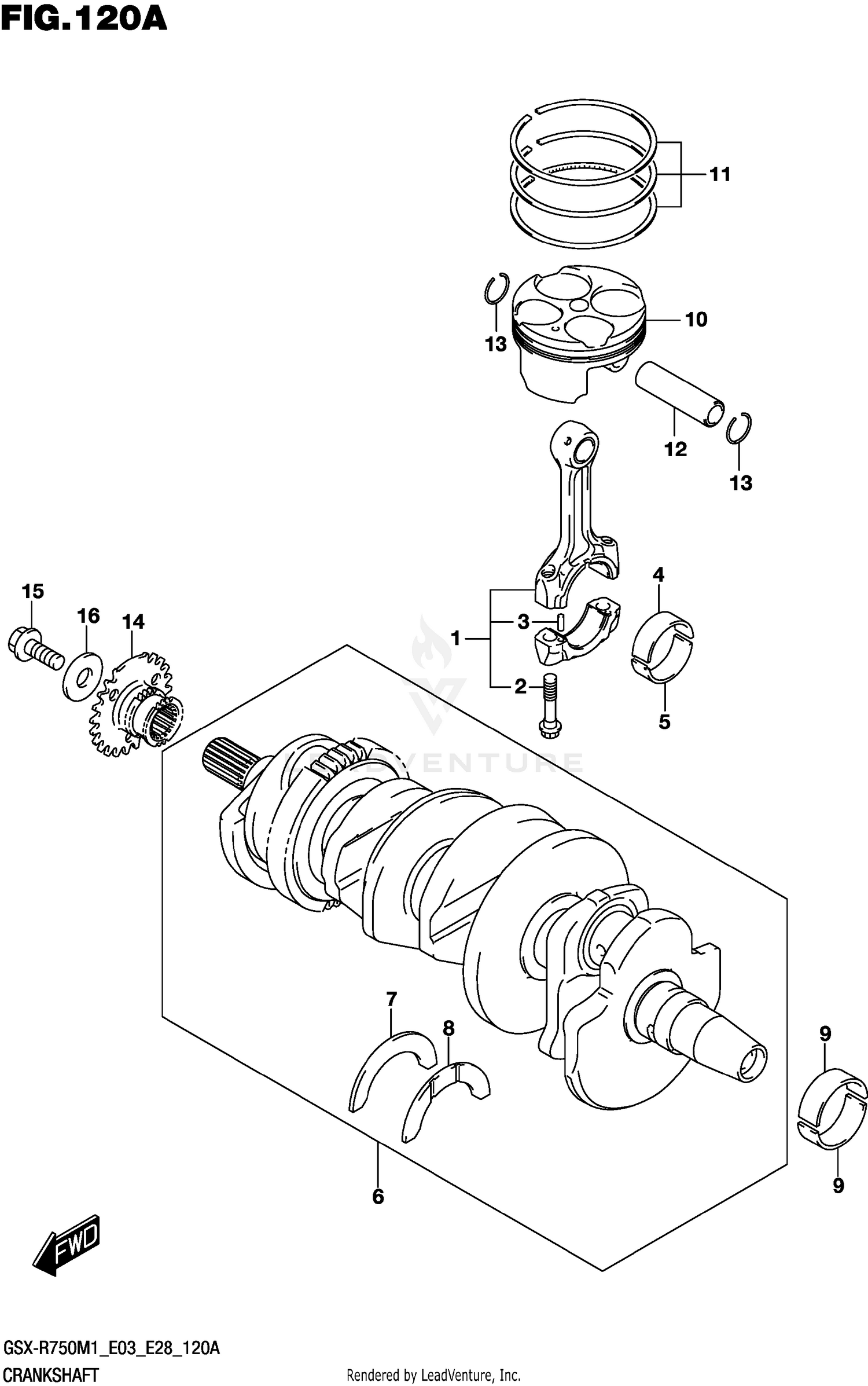

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CONNROD ASSY
12160-15J00
|
$263.34 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BOLT, CONNECTING ROD
12163-35F00
|
$13.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
.PIN
04221-04089
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#4-1
BEARING,CRANK PIN
12164-15J00-0A0
|
$31.86 | ||
|
Available to order. Add to View Price |
|||
|
#4-2
BEARING,CRANK PIN
12164-15J00-0B0
|
$31.86 | ||
|
Available to order. Add to View Price |
|||
|
#4-3
BEARING,CRANK PIN
12164-15J00-0C0
|
$31.86 | ||
|
Available to order. Add to View Price |
|||
|
#4-4
BEARING,CRANK PIN
12164-15J00-0D0
|
$31.86 | ||
|
Available to order. Add to View Price |
|||
|
#5-1
BEARING,CRANK PIN
12164-30G00-0A0
|
$20.22 | ||
|
Available to order. Add to View Price |
|||
|
#5-2
BEARING,CRANK PIN
12164-30G00-0B0
|
$20.22 | ||
|
Available to order. Add to View Price |
|||
|
#5-3
BEARING,CRANK PIN
12164-30G00-0C0
|
$19.44 | ||
|
Available to order. Add to View Price |
|||
|
#5-4
BEARING,CRANK PIN
12164-30G00-0D0
|
$20.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
CRANKSHAFT SET
12000-02850
|
$1,939.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BEARING,CRANK THRUST (GREEN)
12228-17E00-0D0
|
$12.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8-1
.BEARING,CRANK THRUST (RED)
12228-17E00-0A0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#8-2
.BEARING,CRANK THRUST (BLACK)
12228-17E00-0B0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#8-3
.BEARING,CRANK THRUST (BLUE)
12228-17E00-0C0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#8-4
.BEARING,CRANK THRUST (GREEN)
12228-17E00-0D0
|
$12.63 | ||
|
Unavailable |
|||
|
#8-5
.BEARING, CRANK THRUST
12228-17E00-0E0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#8-6
.BEARING, CRANK THRUST
12228-17E00-0F0
|
$13.11 | ||
|
Available to order. Add to View Price |
|||
|
#9-1
BEARING,CRANKSHAFT
12229-02H00-0A0
|
$25.08 | ||
|
Available to order. Add to View Price |
|||
|
#9-2
BEARING,CRANKSHAFT
12229-02H00-0B0
|
$24.28 | ||
|
Available to order. Add to View Price |
|||
|
#9-3
BEARING,CRANKSHAFT
12229-02H00-0C0
|
$24.28 | ||
|
Available to order. Add to View Price |
|||
|
#9-4
BEARING,CRANKSHAFT
12229-02H00-0D0
|
$25.08 | ||
|
Available to order. Add to View Price |
|||
|
#9-5
BEARING,CRANKSHAFT
12229-02H00-0E0
|
$25.08 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON
12111-02H10-0F0
|
$256.82 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING SET,PISTON
12140-02H00
|
$120.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN,PISTON
12151-41G00
|
$19.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP
09381-15001
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPROCKET,CAM CHAIN DRIVE (NT:
12731-01H00
|
$146.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (10X23)
09103-10189
|
$5.17 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
08211-10285
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
