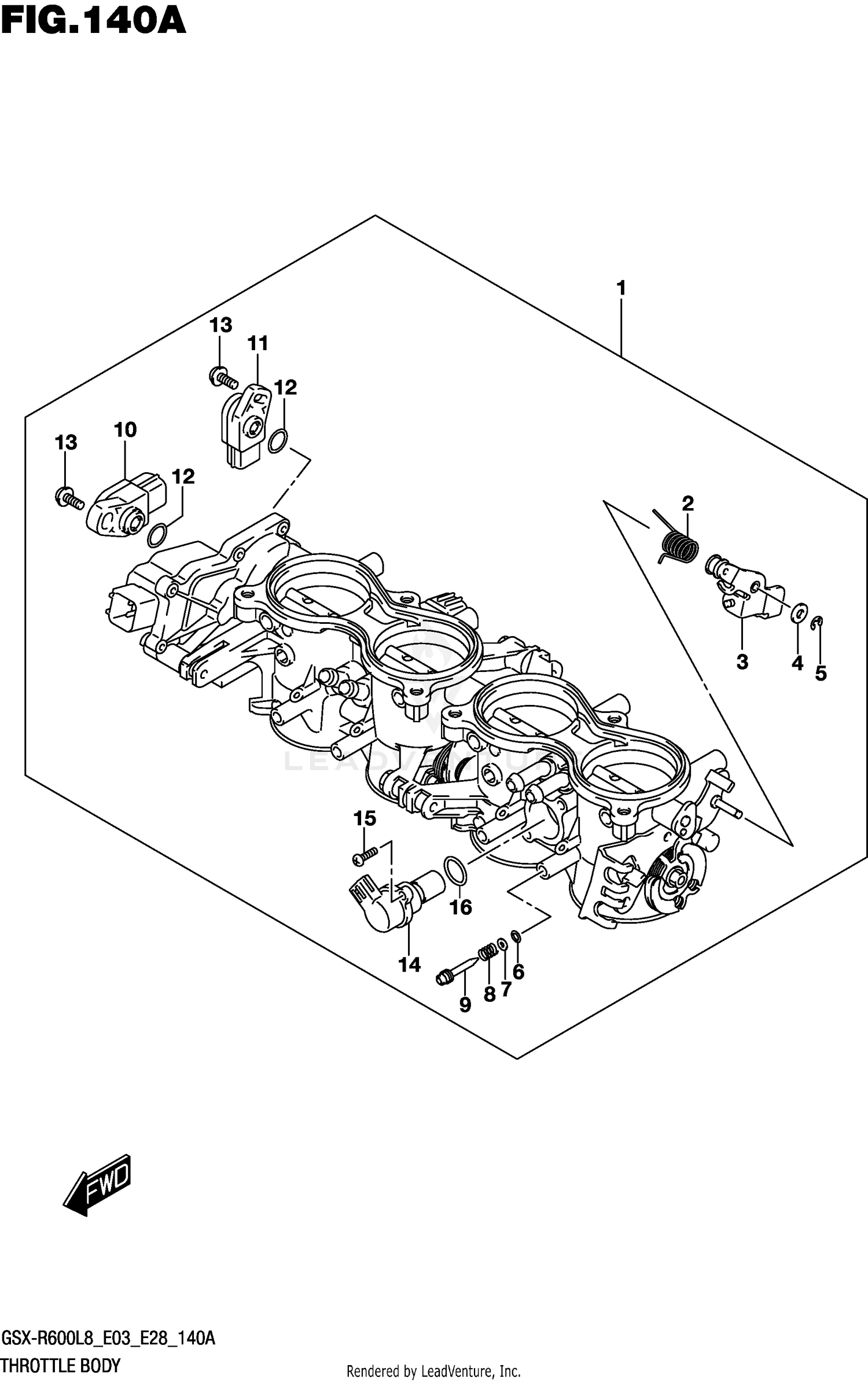

Throttle Body (gsx-r600l8 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSY,THROTTLE
13406-14J00
Superseded by 13406-14J01
|
$2,640.79 | ||
|
Available to order. Add to View Price |
|||
|
#2
.SPRING, TORSION
13426-29G00
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
.LEVER ASSY
13420-37H00
|
$66.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
.PACKING
13427-29G00
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#5
.E RING
13424-29G00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#6
.O-RING
13295-29900
Superseded by 13295-29901
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
.WASHER
13606-47A00
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
.SPRING,THROTTLE SCREW
13268-48700
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
.SCREW
13269-33E00
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
.SENSOR ASSY
13580-14J00
|
$169.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
.SENSOR ASSY
13580-14J10
|
$191.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
.O-RING
13575-29G00
Superseded by 13575-29G01
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#13
.SCREW
13605-02F00
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
.MOTOR ASSY
18117-14J01
|
$436.23 | ||
|
Available to order. Add to View Price |
|||
|
#15
.SCREW
13605-37H00
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
.O RING
13679-37H00
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
