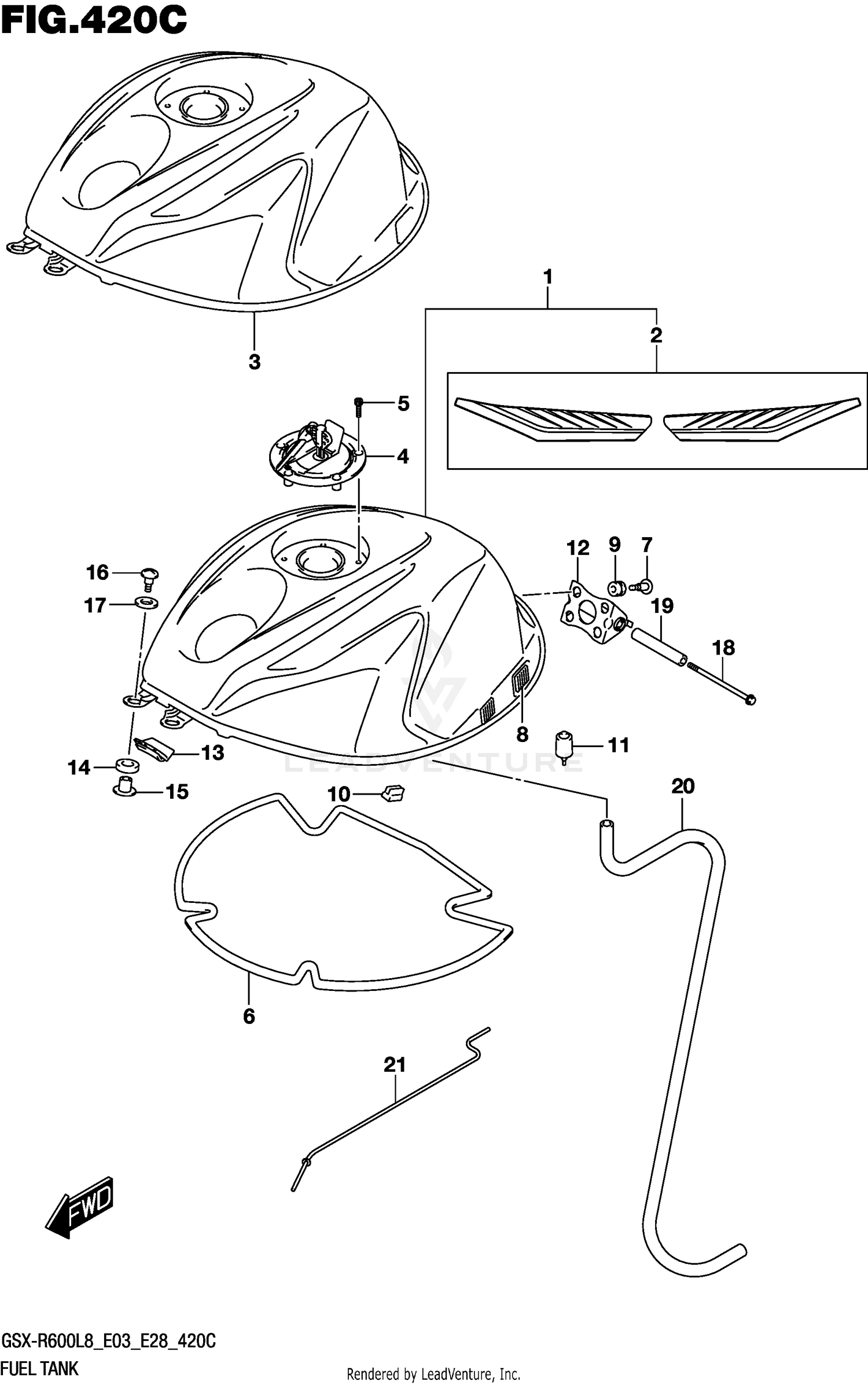

Fuel Tank (gsx-r600l8 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY, FUEL (BLUE)
44100-14JE0-YSF
|
$910.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
.TAPE SET, FUEL TANK
68110-14J10-BDH
|
$90.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
(BLUE/WHITE)
68110-14J10-BDH
|
$90.89 | ||
|
Unavailable |
|||
|
#3-1
TANK ASSY (GRAY)
44100-14J52-QEB
|
$1,103.51 | ||
|
Available to order. Add to View Price |
|||
|
#3-2
TANK ASSY, FUEL (SILVER)
44100-14J52-YMD
|
$1,024.72 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP SET,FUEL TA
44200-16870
Superseded by 44200-16872
|
$172.96 | ||
|
Unavailable |
|||
|
#5
BOLT
44244-11J00
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIELD,FUEL TANK HEAT
44191-14J00
|
$104.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
44543-14J00
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#8
.FASTENER,FUEL TANK (33X25X3.
44572-13G00
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION
09320-08071
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION,FUEL TANK COVER
44276-21H00
Superseded by 44276-21H01
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION,FUEL TANK REAR
44542-41G00
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, REAR
44530-41G01
|
$45.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
RUBBER,FUEL TANK FRONT
44546-44H00
|
$15.08 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION,FUEL TANK FRONT
44511-16G00
Superseded by 44511-16G01
|
$5.32 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER,FUEL TANK,FR
44512-16G00
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW (6X25)
09139-06192
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
09160-06012
Superseded by 09160-06054
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT (6X110)
09106-06119
|
$7.23 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER,FUEL TANK REAR
44561-18G00
|
$21.89 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE,FUEL TANK WATER DRAIN
44423-14J00
Superseded by 44423-14J01
|
$23.47 | ||
|
Available to order. Add to View Price |
|||
|
#21
STAY, FUEL TANK
44574-35F00
|
$19.58 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLOR :
SPECIAL NOTE
|
|||
|
Unavailable |
|||
|
#22
BNE=YMD(SILVER),YWW(WHITE)
SPECIAL NOTE
|
|||
|
Unavailable |
|||
