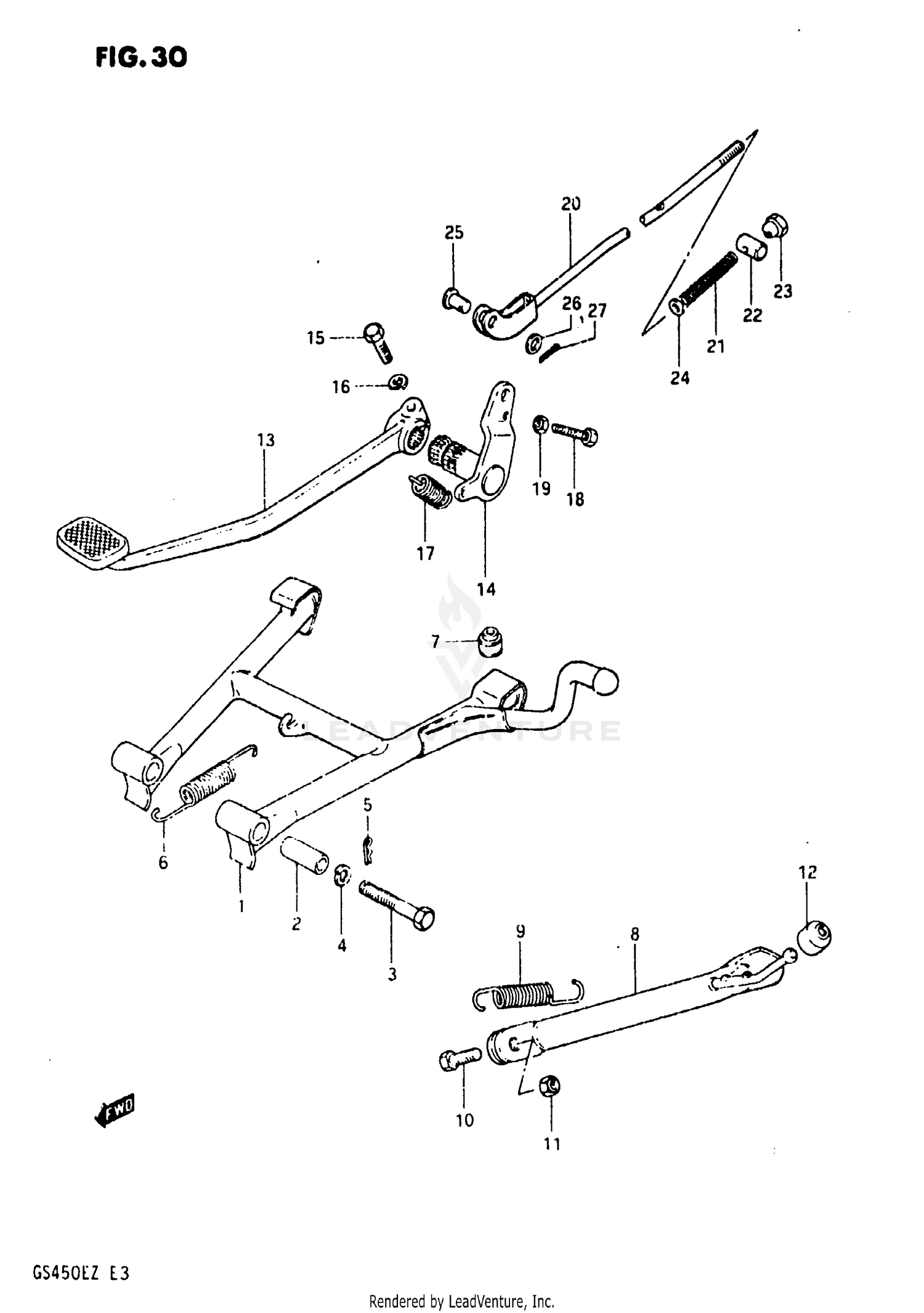

Stand - Rear Brake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, CENTER
42100-44100
|
$71.33 | ||
|
Unavailable |
|||
|
#2
SPACER
09180-10040
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, 10 X 65
09101-10018
Superseded by 09101-10030
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#4
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP
09385-10001
Superseded by 09385-10005
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, CENTER
09443-18003
Superseded by 09443-18006-XC0
|
$8.51 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION
09321-10001
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAND, PROP
42310-44100
Superseded by 42310-44300
|
$28.64 | ||
|
Unavailable |
|||
|
#9
SPRING
09443-17005
Superseded by 09443-17008-XC0
|
$8.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
09100-10067
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
08310-22108
Superseded by 08310-00107
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION
09320-07001
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#13
PEDAL, BRAKE
43110-44100
Superseded by 43110-44110
|
$102.16 | ||
|
Unavailable |
|||
|
#13
PEDAL, BRAKE
43110-44110
|
$102.16 | ||
|
Unavailable |
|||
|
#14
ARM, BRAKE PEDAL ROD
43120-44100
|
$22.51 | ||
|
Unavailable |
|||
|
#15
BOLT
01107-08258
Superseded by 01500-08257
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#16
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SPRING
09443-14013
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01107-06208
Superseded by 01500-06207
|
$2.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
.NUT
08310-11068
Superseded by 08310-00067
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
ROD ASSY, REAR BRAKE
43300-44100
Superseded by 43300-44101
|
$11.80 | ||
|
Unavailable |
|||
|
#20
ROD ASSY, REAR BRAKE
43300-44101
|
$11.80 | ||
|
Unavailable |
|||
|
#21
SPRING
09440-09004
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#22
.PIN (13X18)
09209-13003
Superseded by 09209-13018
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#23
.NUT
09150-06001
Superseded by 09150-06010
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
WASHER
08322-21068
Superseded by 08322-01067
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
PIN
09200-06013
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER
08322-21068
Superseded by 08322-01067
|
$2.33 | ||
|
Unavailable |
|||
|
#27
PIN
04111-20208
Superseded by 04111-2020A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
