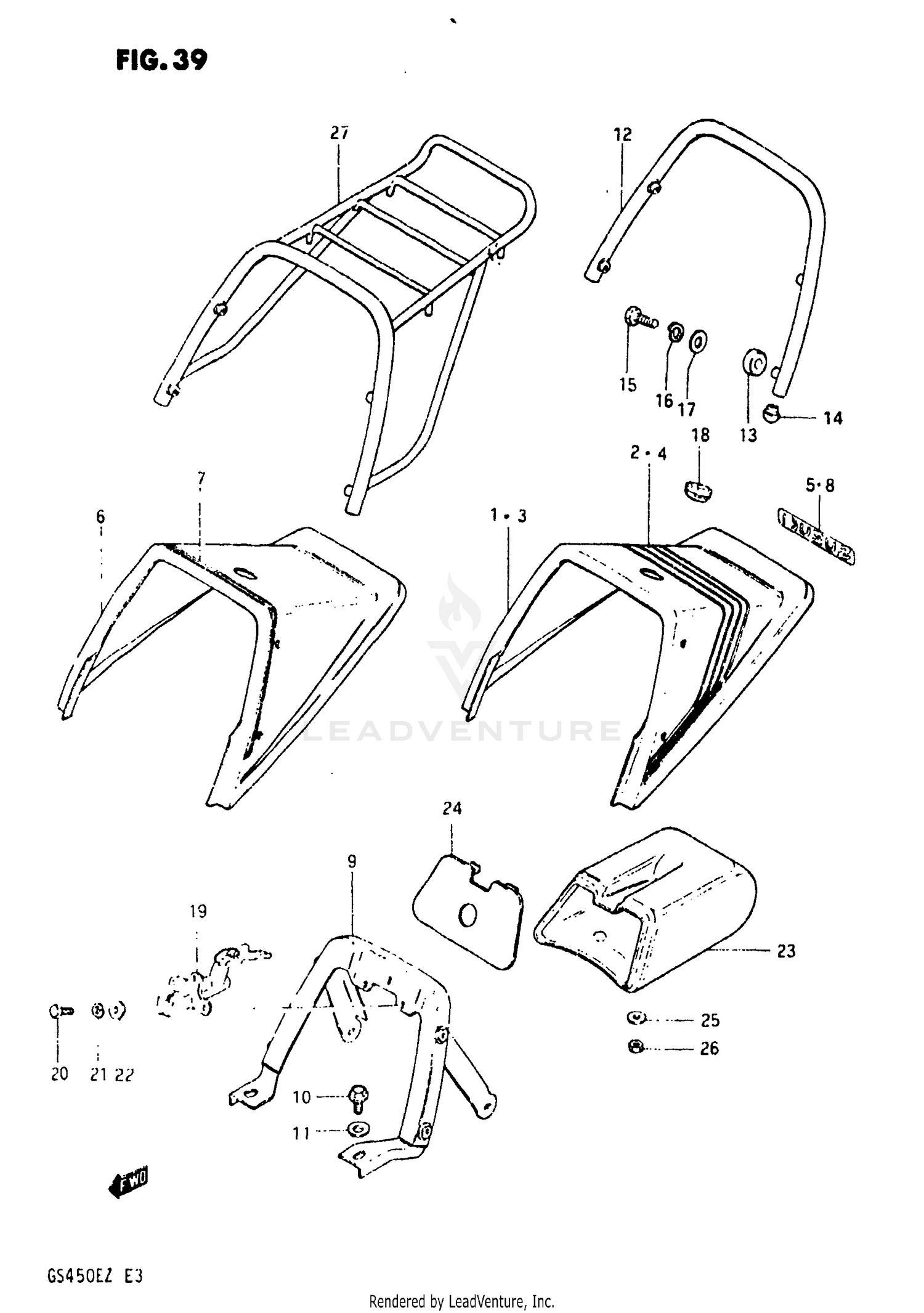

Seat Tail Cover (model T) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAIL COVER, SEAT (BLACK)
45511-44101-019
|
$50.40 | ||
|
Unavailable |
|||
|
#2
TAPE SET
68160-44110-72B
|
$29.49 | ||
|
Unavailable |
|||
|
#3
TAIL COVER, SEAT (BLACK)
45511-44101-05N
Superseded by 45511-44101-019
|
$50.40 | ||
|
Unavailable |
|||
|
#4
TAPE SET
68160-44110-72B
|
$29.49 | ||
|
Unavailable |
|||
|
#5
EMBLEM
68166-49200-998
|
$2.54 | ||
|
Unavailable |
|||
|
#6
TAIL COVER, SEAT (BLACK)
45511-44101-00J
Superseded by 45511-44101-019
|
$50.40 | ||
|
Unavailable |
|||
|
#7
TAPE SET
68160-44120-70N
|
$14.65 | ||
|
Unavailable |
|||
|
#8
EMBLEM,SEAT TAI
68166-49200-538
Superseded by 68166-49201-538
|
$3.61 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, SEAT TAIL COVER
45530-44102
Superseded by 45530-44103
|
$33.12 | ||
|
Unavailable |
|||
|
#10
BOLT M8X16
01517-08168
Superseded by 01550-08167
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (8.5X22X2)
09160-08007
Superseded by 09160-08127
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
HANDLE, PILLION RIDER
46210-44100
|
$43.24 | ||
|
Unavailable |
|||
|
#13
CUSHION
46212-49000
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#14
END, HANDLE
46213-49000
|
$5.68 | ||
|
Unavailable |
|||
|
#15
BOLT
01107-08308
Superseded by 01500-08307
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#16
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER
08322-11088
Superseded by 08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
GROMMET
45522-49200
|
$6.08 | ||
|
Available to order. Add to View Price |
|||
|
#19
LOCK SET, SEAT
95700-49820
Superseded by 95700-49830
|
$84.36 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
01107-06128
Superseded by 01500-06127
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER
08322-21068
Superseded by 08322-01067
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOX, SEAT TAIL
94990-44100
|
$31.58 | ||
|
Unavailable |
|||
|
#24
LID, SEAT TAIL BOX
94992-44100
|
$12.30 | ||
|
Unavailable |
|||
|
#25
WASHER
08322-21068
Superseded by 08322-01067
|
$2.33 | ||
|
Unavailable |
|||
|
#26
.NUT
08319-21068
Superseded by 08319-2106A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#27
CARRIER, SPORTS
46310-44100
|
$49.69 | ||
|
Unavailable |
|||
