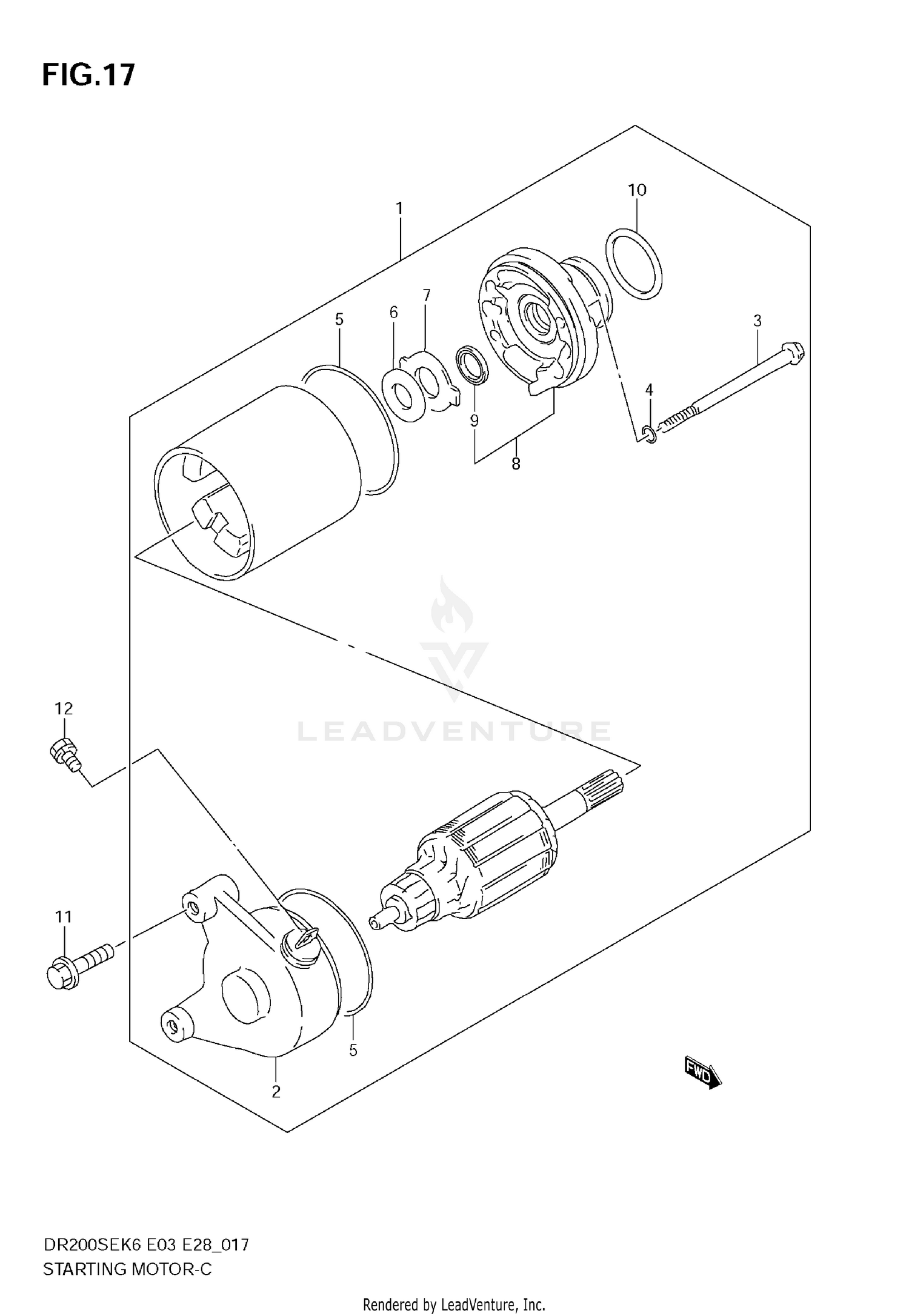

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOTOR ASSY,STARTING
31100-42A20
|
$720.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
.FRAME ASSY,COMMUTATOR END
31175-42A20
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
31281-08F00
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
O RING
31156-08F00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
.O-RING
31264-32C10
|
$15.34 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM
31361-38300
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, LOCK
31361-32C10
|
$2.41 | ||
|
Unavailable |
|||
|
#8
BRACKET
31150-08F00
|
$82.34 | ||
|
Unavailable |
|||
|
#9
..OIL SEAL
31153-49210
|
$26.14 | ||
|
Available to order. Add to View Price |
|||
|
#10
.O RING (D:3,ID:24.5)
09280-24003
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
01547-0630B
|
$3.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SCREW (5X8)
09137-05004
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
