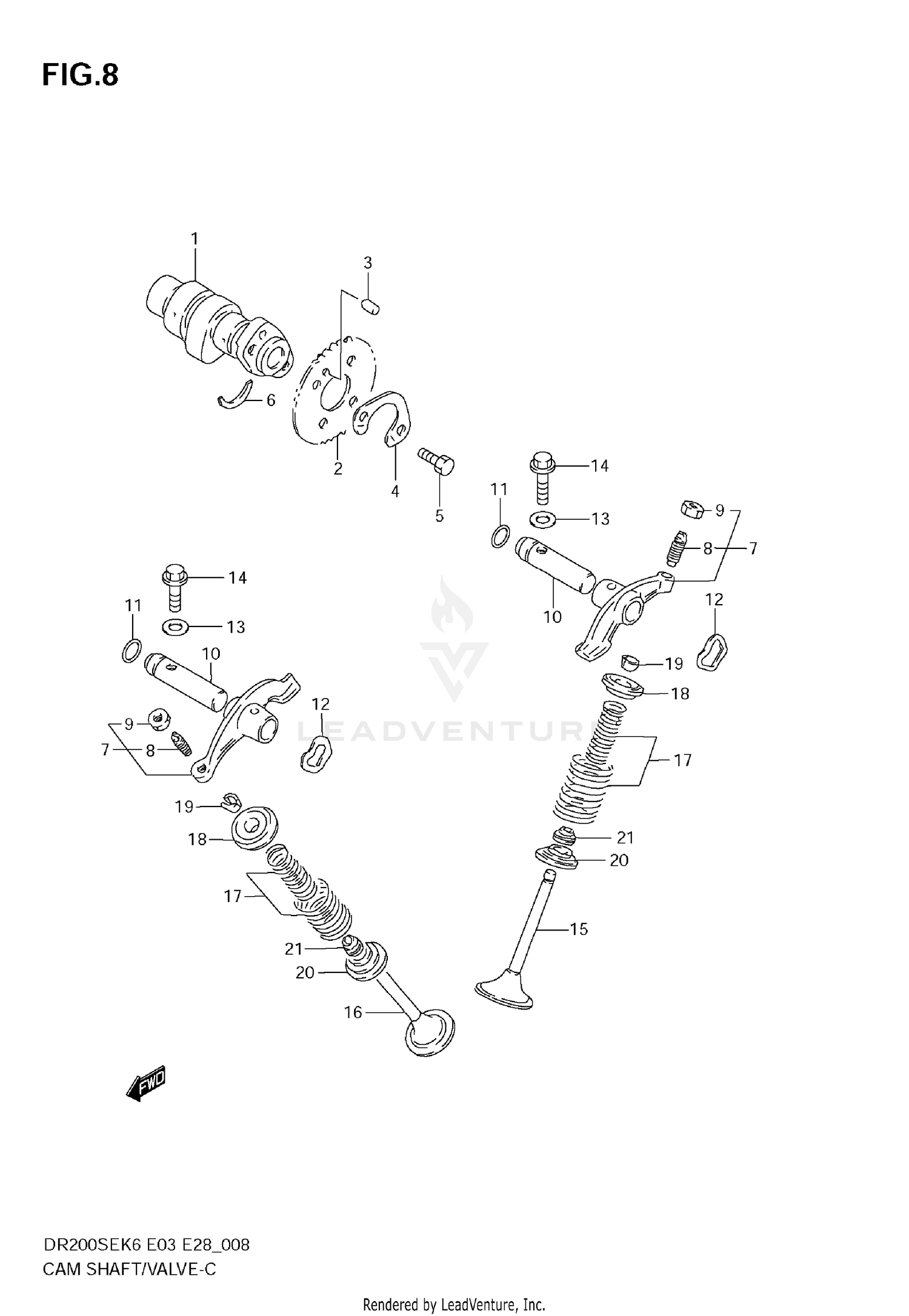

Camshaft/valve Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAM SHAFT
12711-42A10
Superseded by 12711-42A11
|
$177.98 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, CAM SHAFT (NT:32)
12741-05201
|
$24.83 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN
09261-05005
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPROCKET
12747-05202
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (6X10.5)
09100-06166
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
C-RING
09390-22002
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#7
ARM,VALVE ROCKER
12840-25C10
|
$59.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
ARM, VALVE ROCKER
12850-25C00
|
$53.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
.SCREW, ADJUSTING
12842-32411
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#9
.NUT,ADJUSTING SCREW
12843-32400
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT, VALVE ROCKER ARM
12861-05201
|
$21.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
.O-RING (D:1.9,ID:8.6)
09280-09005
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (37.3X52X1)
09164-12021
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET (5.8X13X1.2)
09168-06023
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT
02162-0625B
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#15
VALVE,INTAKE
12911-42A00
|
$47.19 | ||
|
Available to order. Add to View Price |
|||
|
#16
VALVE, EXHAUST
12912-42A00
|
$80.63 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING SET,VALVE
12920-05210
|
$17.48 | ||
|
Available to order. Add to View Price |
|||
|
#18
RETAINER, VALVE SPRING
12931-49201
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#19
COTTER, VALVE
12932-24400
|
$2.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SEAT, VALVE SPRING
12933-49201
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL (5.5X11X8.2)
09289-05015
|
$8.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
