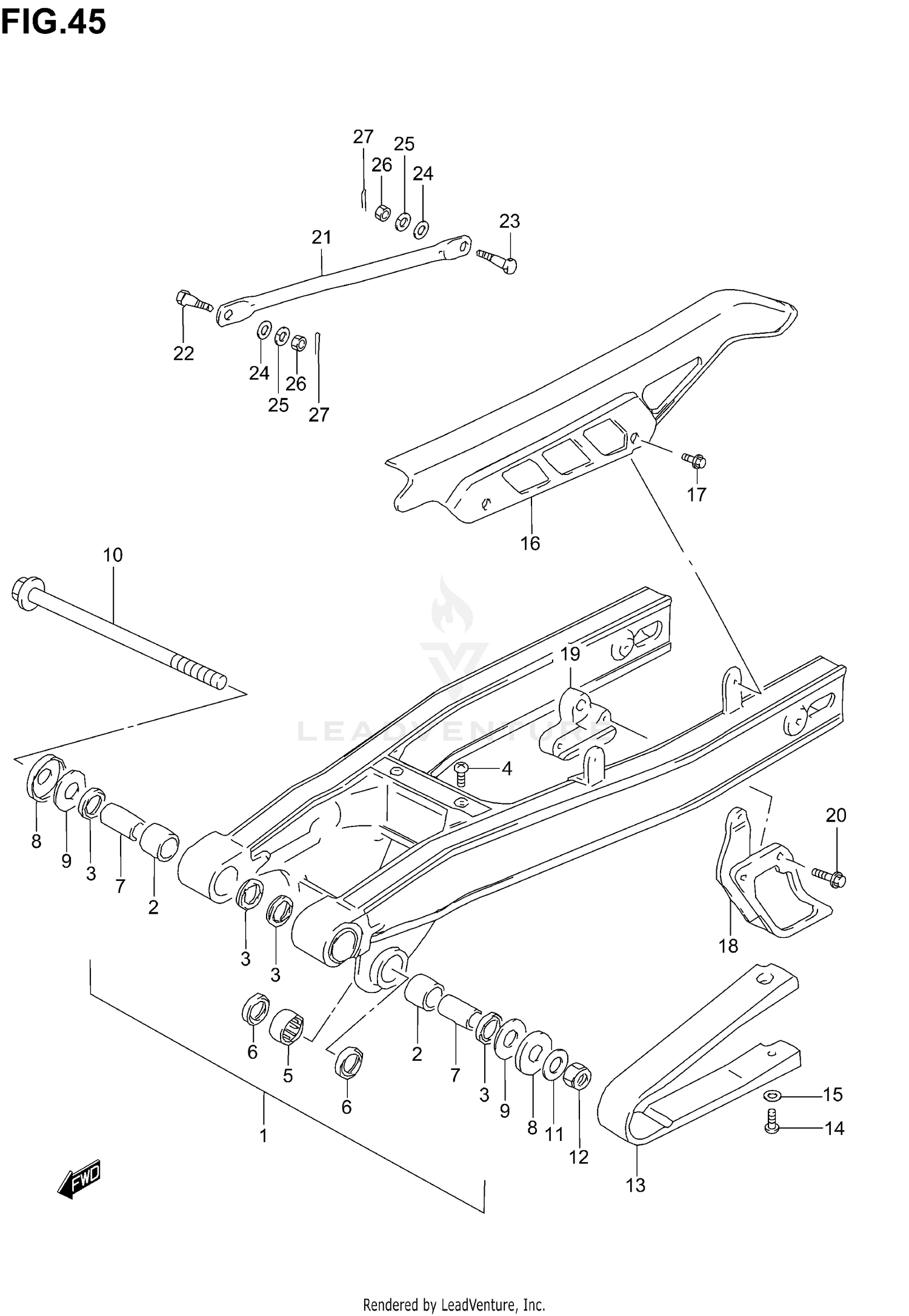

Rear Swinging Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGINGARM ASS
61100-42840
Superseded by 61100-42841
|
$733.04 | ||
|
Unavailable |
|||
|
#2
.BUSHING
61261-13700
|
$20.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
.OIL SEAL (20X27X5)
09283-20031
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
.SCREW
02142-06163
Superseded by 02142-0616A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING (20X27X25)
09263-20053
|
$28.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SEAL,CUSHION LEVER,OUT DUST
62647-44A00
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER, PIVOT LH
61251-42A00
|
$24.92 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL, PIVOT
61262-40400
Superseded by 61262-40401
|
$7.54 | ||
|
Available to order. Add to View Price |
|||
|
#9
THRUST WASHER
08211-14322
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT,REAR SWINGINGARM,PIVOT
61211-26B01
|
$43.31 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (14.5X24X2.3)
09160-14057
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
09159-14019
|
$14.34 | ||
|
Available to order. Add to View Price |
|||
|
#13
BUFFER,CHAIN TOUCH DFFENSE
61273-42A01
|
$40.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
02142-06203
Superseded by 02142-0620A
|
$1.68 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
09169-06037
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
CASE, CHAIN
61311-01A03
|
$80.54 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (6X10)
09116-06096
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUIDE,CHAIN
61341-13A00
Superseded by 61341-13A10
|
$41.54 | ||
|
Available to order. Add to View Price |
|||
|
#19
RUBBER,CHAIN GU
61345-42A00
Superseded by 61345-42A01
|
$13.53 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
01550-06203
Superseded by 01550-0620A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#21
TORQUELINK,REAR (SILVER)
64311-42A00-13L
|
$24.92 | ||
|
Available to order. Add to View Price |
|||
|
#22
NO DESCRIPTION AVAILABLE
64321-42A00
Superseded by 09119-08088
|
$4.08 | ||
|
Unavailable |
|||
|
#22
BOLT, TORQUE LINK FR
09111-08088
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT (8X26.5)
09111-08013
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER,LOCK
08322-01083
Superseded by 08322-0108A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
09162-08008
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
09140-08008
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN
04111-20208
Superseded by 04111-2020A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
