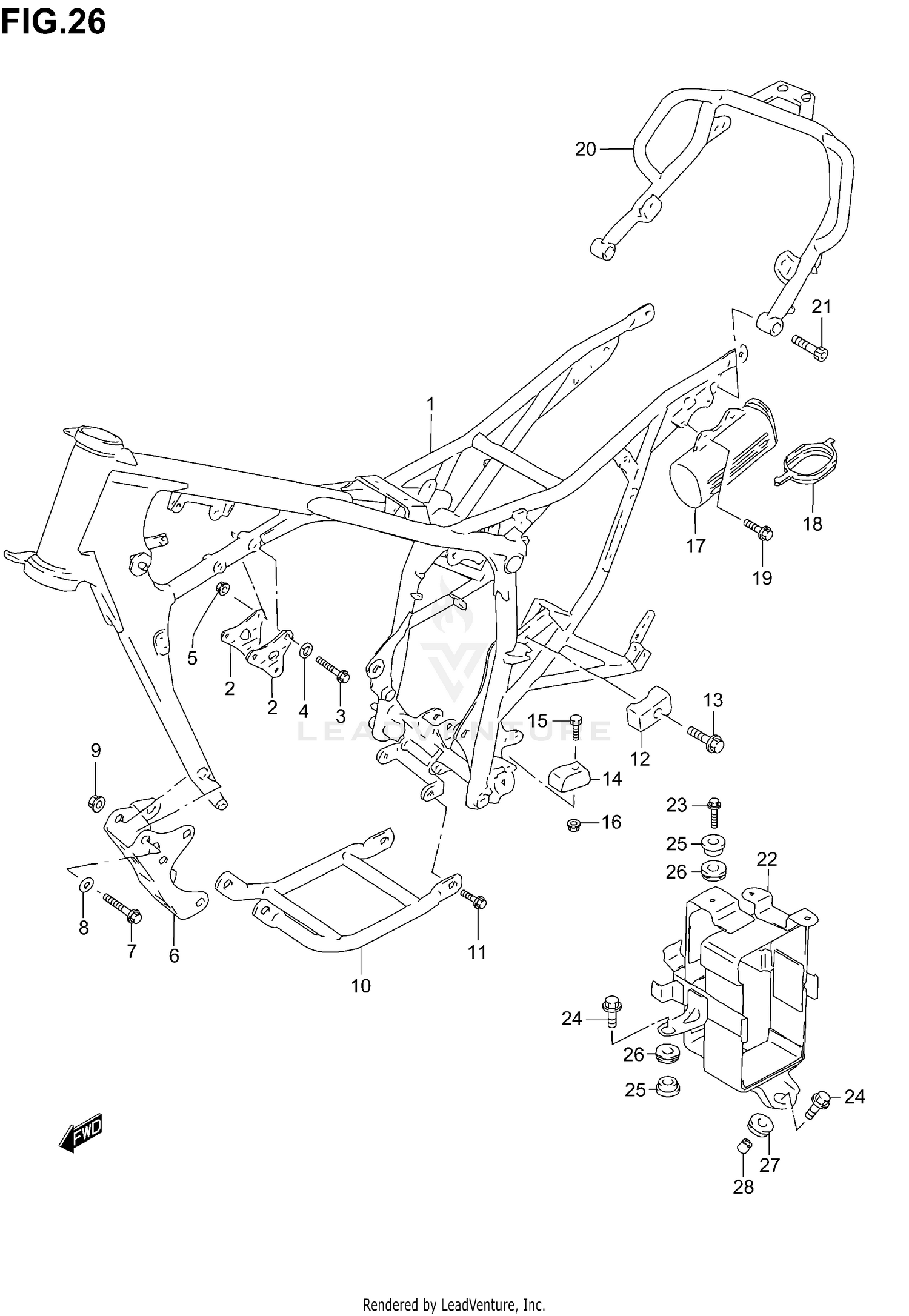

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
41100-44AB0-24K
Superseded by 41100-44AB1-24K
|
$1,054.86 | ||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
41100-44AB0-17U
Superseded by 41100-44AB1-17U
|
$1,054.86 | ||
|
Unavailable |
|||
|
#1
FRAME (GRAY)
41100-44AB0-YU8
Superseded by 41100-44AB1-YU8
|
$1,137.06 | ||
|
Unavailable |
|||
|
#1
FRAME (GRAY)
41100-44AB1-YU8
|
$1,137.06 | ||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
41100-44AD0-24K
Superseded by 41100-44AD1-24K
|
$1,054.86 | ||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
41100-44AD0-17U
Superseded by 41100-44AD1-17U
|
$1,054.86 | ||
|
Unavailable |
|||
|
#1
FRAME (GRAY)
41100-44AD0-YU8
Superseded by 41100-44AD1-YU8
|
$1,360.78 | ||
|
Unavailable |
|||
|
#1
FRAME (GRAY)
41100-44AD1-YU8
|
$1,360.78 | ||
|
Unavailable |
|||
|
#2
PLATE,ENGINE MOUNT,UPPER (BLA
41991-42A00-291
|
$16.66 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (8X53)
09103-08332
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER,LOCK
08321-01083
Superseded by 08321-0108A
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
08319-31083
Superseded by 08319-3108A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, MOUNT LOWER (CHARCOAL)
41992-44AA1-24K
|
$31.05 | ||
|
Unavailable |
|||
|
#6
PLATE, MOUNT LOWER (GRAY)
41992-44AA1-17U
|
$47.69 | ||
|
Unavailable |
|||
|
#6
PLATE, MOUNT LOWER (GRAY)
41992-44AA1-YU8
|
$63.88 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (8X65)
09103-08328
|
$2.11 | ||
|
Unavailable |
|||
|
#8
WASHER,LOCK
08321-01083
Superseded by 08321-0108A
|
$2.22 | ||
|
Unavailable |
|||
|
#9
NUT
08319-31083
Superseded by 08319-3108A
|
$2.79 | ||
|
Unavailable |
|||
|
#10
PROTECTOR, ENGINE (CHARCOAL)
42510-44AA0-24K
|
$95.68 | ||
|
Unavailable |
|||
|
#10
PROTECTOR, ENGINE (GRAY)
42510-44AA0-17U
|
$108.81 | ||
|
Unavailable |
|||
|
#10
PROTECTOR,ENGIN
42510-44AA0-YU8
Superseded by 42510-44AA1-YU8
|
$1,023.10 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
01551-10163
Superseded by 01551-1016A
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE,CH CONTRO
43911-44A00
Superseded by 43911-44A01
|
$17.06 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (6X35)
01580-06353
Superseded by 01580-0635B
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUIDE,CHAIN CONTROL,LOWER
43912-42AA0
|
$31.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
09128-06006
Superseded by 09128-06057
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
NUT
08319-31063
Superseded by 08319-3106A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER,TOOL
41551-38200
Superseded by 41551-38201
|
$44.97 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP, TOOL HOLDER
41552-37210
|
$12.42 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT (6X16)
09116-06165
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
GRIP, REAR (CHARCOAL)
43980-44AB2-24K
|
$245.66 | ||
|
Unavailable |
|||
|
#20
GRIP, REAR (GRAY)
43980-44AB2-17U
|
$245.66 | ||
|
Unavailable |
|||
|
#20
GRIP, REAR (GRAY)
43980-44AB2-YU8
|
$312.62 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT (8X30)
09106-08105
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOLDER,BATTERY
41540-44AA0
|
$130.00 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
01550-06203
Superseded by 01550-0620A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, LOWER
09116-06131
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPACER
09169-06065
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#26
CUSHION (8.5X20X8)
09320-08021
Superseded by 09320-08510
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#27
CUSHION
09320-10501
|
$6.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
SPACER, LOWER LH
09180-06285
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
