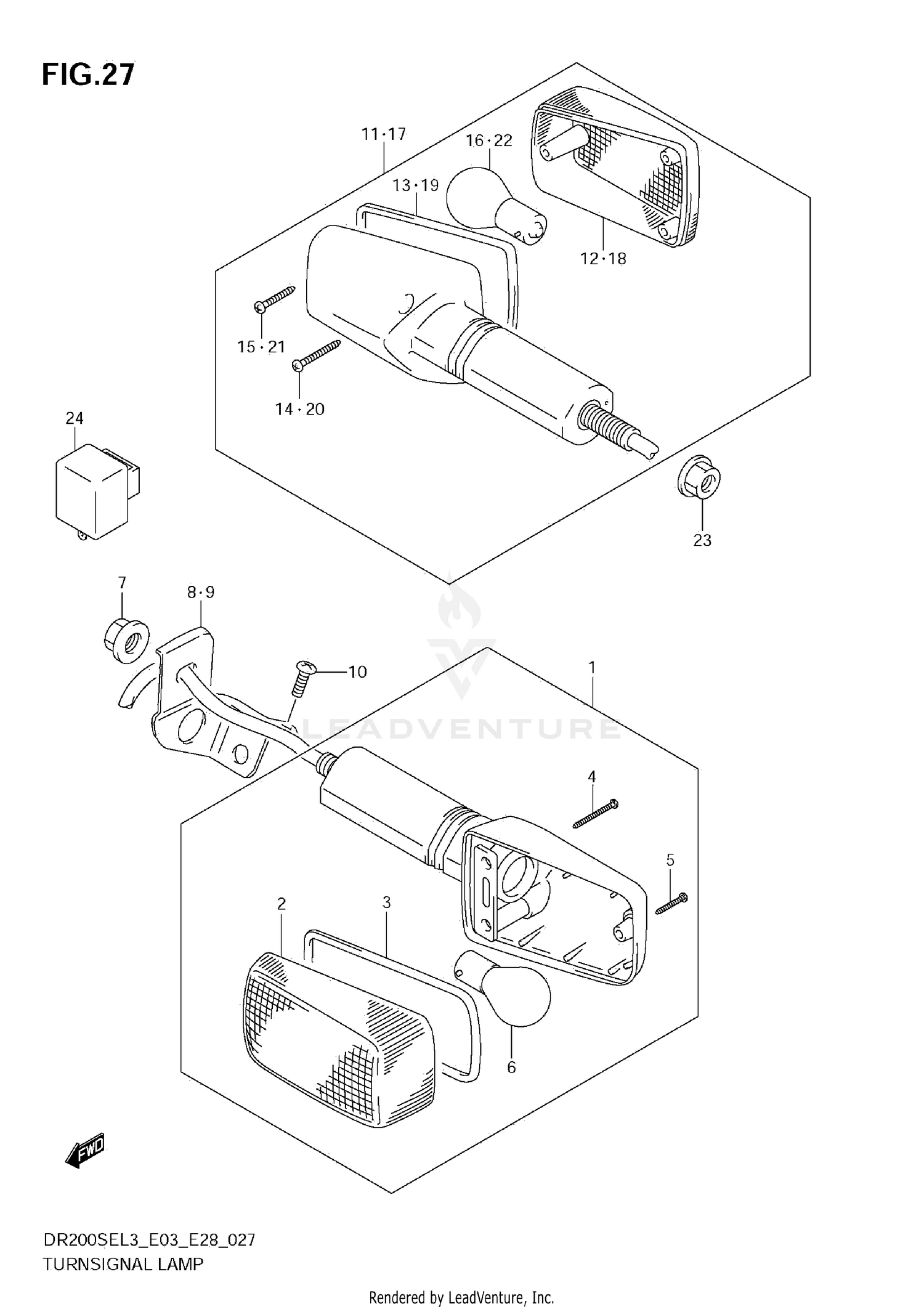

Turnsignal Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, FRONT TURNSIGNAL
35601-29EC0
|
$118.92 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS
35612-17C20
|
$13.21 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
35613-27A00
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
35623-27A00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
35725-40511
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB (12V,21W)
09471-12045
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
08316-1010A
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, FRONT TURN RH
35670-44A01
|
$12.21 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, FRONT TURN LH
35680-44A01
|
$12.21 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
02142-0508A
|
$1.68 | ||
|
Available to order. Add to View Price |
|||
|
#11
LAMP ASSY, REAR TURNSIGNAL RH
35603-29EK0
|
$116.88 | ||
|
Available to order. Add to View Price |
|||
|
#12
LENS
35652-17C20
|
$13.07 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
35613-27A00
|
$5.75 | ||
|
Unavailable |
|||
|
#14
SCREW
35623-27A00
|
$1.80 | ||
|
Unavailable |
|||
|
#15
SCREW
35725-40511
|
$2.08 | ||
|
Unavailable |
|||
|
#16
BULB (12V,21W)
09471-12045
|
$3.99 | ||
|
Unavailable |
|||
|
#17
LAMP ASSY, REAR TURNSIGNAL LH
35603-29EK0
|
$116.88 | ||
|
Unavailable |
|||
|
#18
LENS
35652-17C20
|
$13.07 | ||
|
Unavailable |
|||
|
#19
GASKET
35613-27A00
|
$5.75 | ||
|
Unavailable |
|||
|
#20
SCREW
35623-27A00
|
$1.80 | ||
|
Unavailable |
|||
|
#21
SCREW
35725-40511
|
$2.08 | ||
|
Unavailable |
|||
|
#22
BULB (12V,21W)
09471-12045
|
$3.99 | ||
|
Unavailable |
|||
|
#23
NUT
08316-1010A
|
$2.85 | ||
|
Unavailable |
|||
|
#24
RELAY ASSY,TURN SIGNAL
38610-31X50
|
$86.57 | ||
|
Available to order. Add to View Price |
|||
