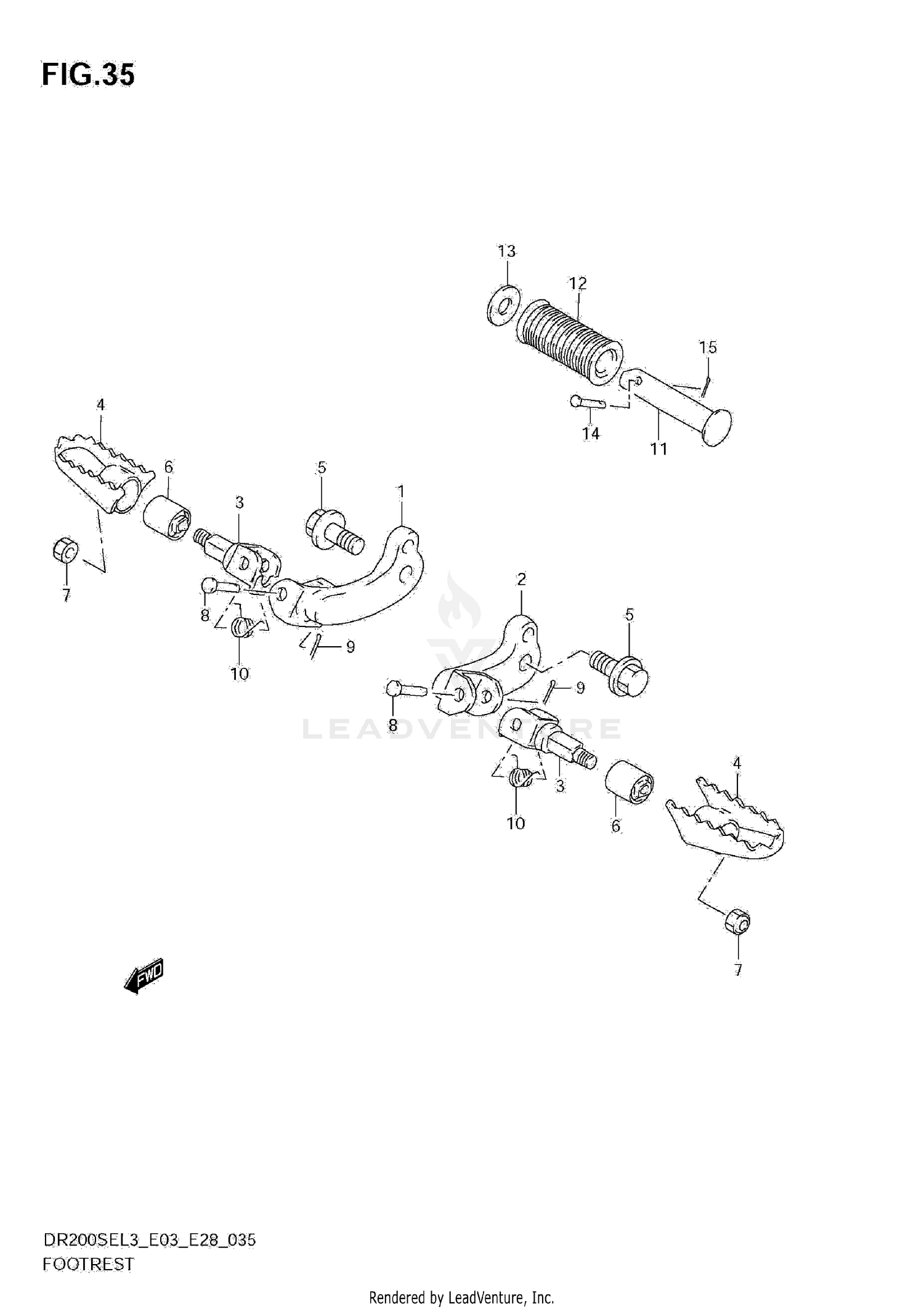

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR, FRNT FOOTREST RH (BLACK)
43510-44A03-019
|
$47.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAR, FRNT FOOTREST LH (BLACK)
43520-44A03-019
|
$47.27 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, FRONT FOOTREST
43530-44A02
|
$57.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
FOOTREST, FRONT (BLACK)
43550-44A01-019
|
$42.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (12X25)
09103-12047
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH
09319-10053
|
$41.74 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
08319-3110B
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN
09200-08002
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#9
COTTER PIN
04111-2015A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING
09448-14037
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAR,FOOTREST RUBBER
43610-03001
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER,PILLION FOOTREST
43612-33200
Superseded by 43612-33210
|
$6.61 | ||
|
Available to order. Add to View Price |
|||
|
#13
.WASHER (19.5X32X2)
09160-19024
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN
09200-06033
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#15
COTTER PIN
04111-2015A
|
$1.53 | ||
|
Unavailable |
|||
