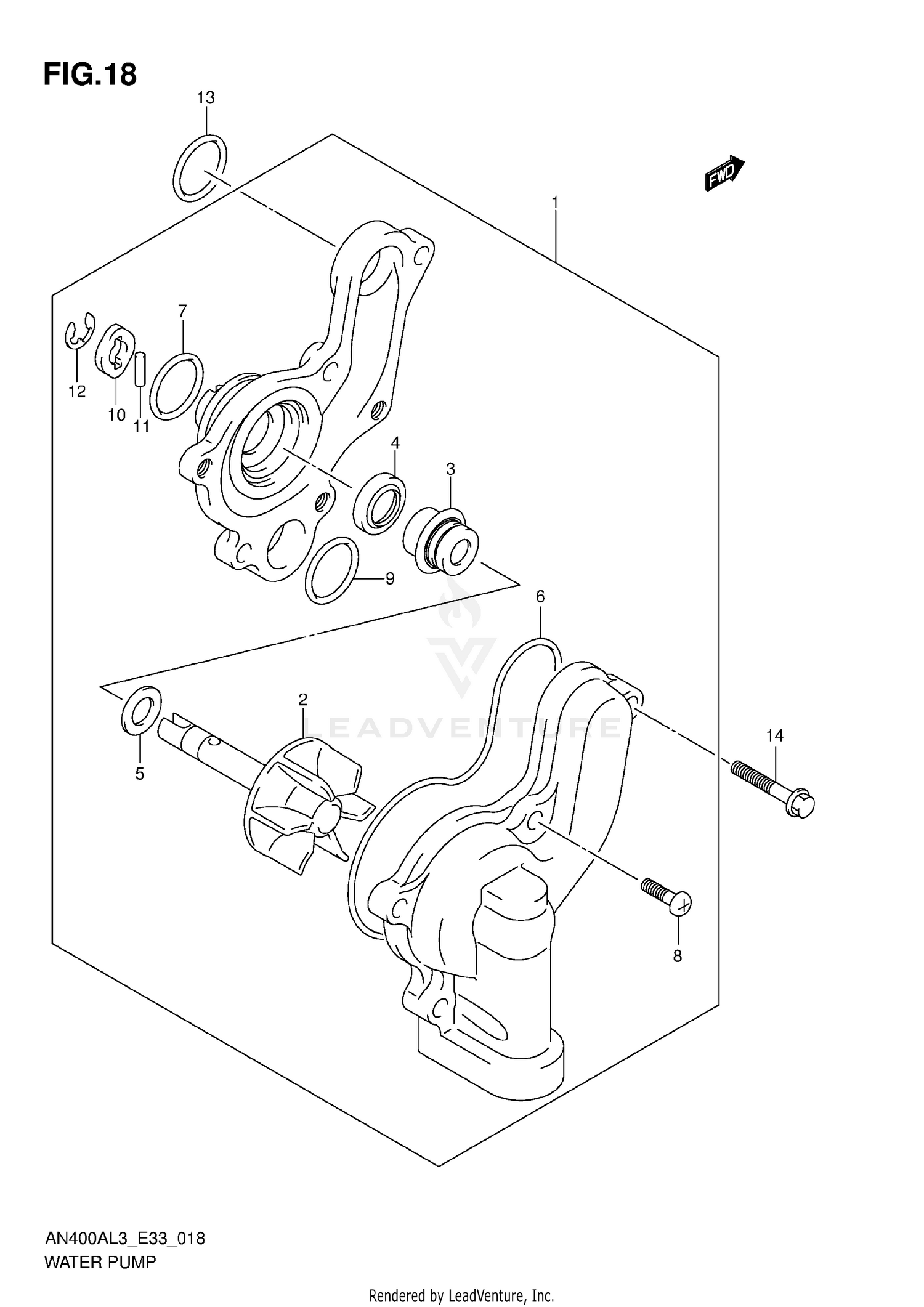

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY,WATER
17400-05H00
Superseded by 17400-05H01
|
$240.32 | ||
|
Unavailable |
|||
|
#2
IMPELLER
17491-05H00
|
$60.23 | ||
|
Available to order. Add to View Price |
|||
|
#3
.SEAL,MECHANICAL
17470-02F10
Superseded by 17470-02F11
|
$37.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
.OIL SEAL
17461-48G00
|
$17.57 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
17432-07G00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
O RING
17418-05H00
|
$22.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
.O RING
17435-33400
|
$19.74 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
02112-0616A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
O RING (D:2.4,ID:21.8)
09280-22001
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP
17481-05H00
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN
17482-03G00
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#12
E RING
17483-05H00
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#13
O RING (D:2.4,ID:21.8)
09280-22001
|
$1.78 | ||
|
Unavailable |
|||
|
#14
BOLT
01547-0635A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
