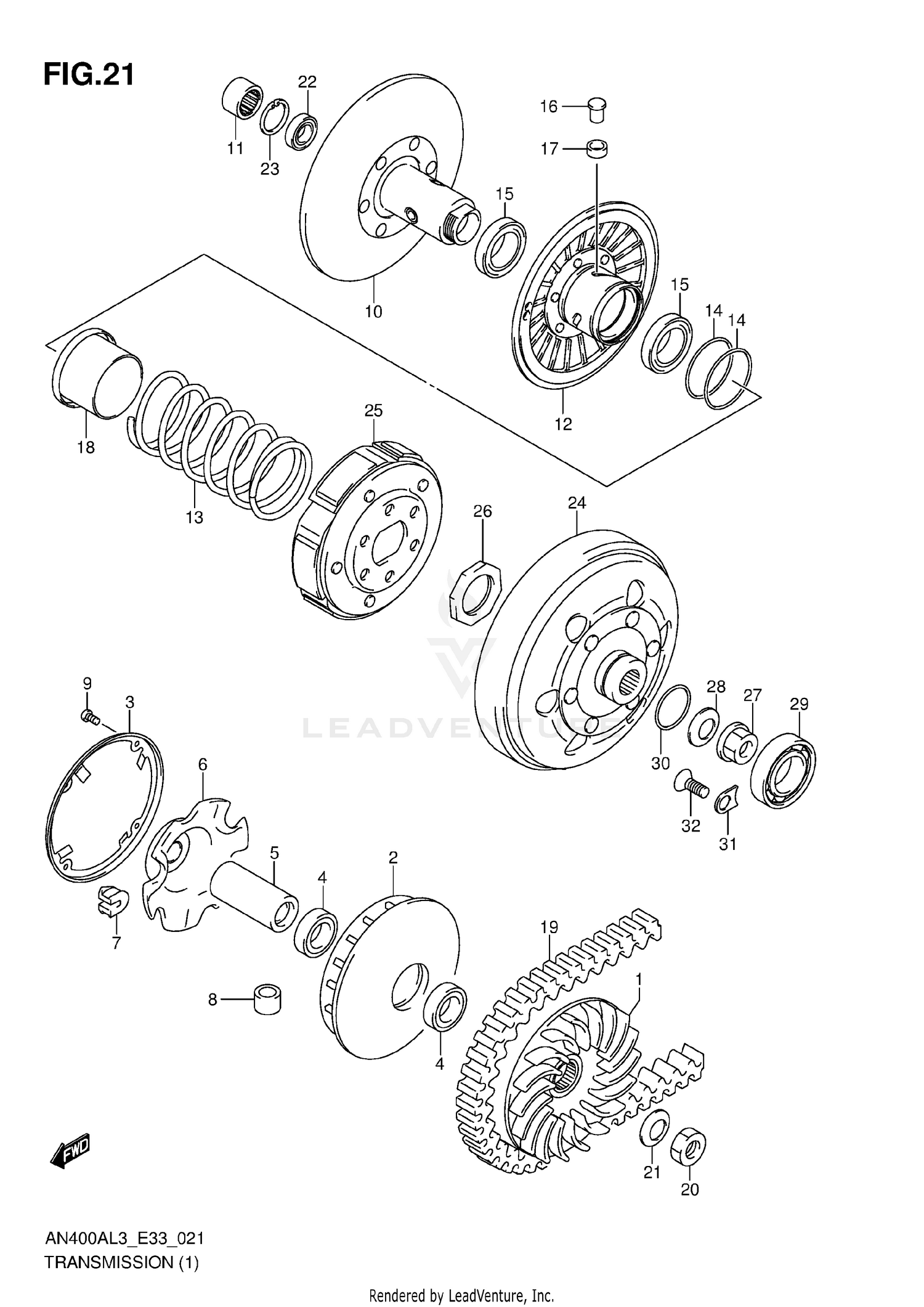

Transmission (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FACE,FIXED DRIVE
21110-05H00
|
$128.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
FACE,MOVABLE DRIVE
21120-05H00
|
$144.92 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER,MOVABLE DRIVE
21122-05H00
|
$15.52 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL, MOVABLE DRIVE FACE
21124-15F00
|
$13.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER,MOVABLE DRIVE
21125-05H00
|
$62.34 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE,MOVABLE DRIVE
21431-05H00
|
$59.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER,MOVABLE DRIVE PLATE
21481-14F00
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROLLER,MOVABLE DRIVEN
21650-15F40
|
$19.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
02142-0410A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
FACE,FIXED DRIVEN
21210-05H00
|
$299.93 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING,FIXED DRIVEN RH
21214-15F00
Superseded by 21214-15F01
|
$34.49 | ||
|
Unavailable |
|||
|
#12
FACE,MOVABLE DRIVEN
21240-05H10
|
$278.97 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING,MOVABLE DRIVEN
21243-15F40
|
$46.72 | ||
|
Available to order. Add to View Price |
|||
|
#14
O RING, MOVABLE DRIVEN
21245-15F00
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL, MOVABLE DRIVEN
21247-31G00
|
$16.12 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN,MOVABLE DRIVEN
21248-15F01
|
$6.32 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER,MOVABLE DRIVEN PIN
21249-15F00
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHEET,MOVABLE DRIVEN
21471-15F20
|
$19.52 | ||
|
Available to order. Add to View Price |
|||
|
#19
V BELT, DRIVE
27601-05H00
Superseded by 27601-05H10
|
$196.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
09140-18501
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER
09164-18001
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING
08123-69047
Superseded by 08123-6904B
|
$25.46 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP
08331-41379
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOUSING,CLUTCH
21220-05H20
Superseded by 21220-05H30
|
$373.53 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLUTCH ASSY,SHOE
21501-05H30
Superseded by 21501-05H41
|
$313.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT,SHOE CLUTCH
21518-15F00
|
$12.36 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT
09140-16002
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER
09164-16002
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING (35X62X14)
09262-35064
|
$77.42 | ||
|
Available to order. Add to View Price |
|||
|
#30
O RING (D:2,ID:31)
09280-32008
|
$11.91 | ||
|
Available to order. Add to View Price |
|||
|
#31
RETAINER, CLUTCH HOUSING
24742-44B00
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW
02122-0616A
|
$1.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
