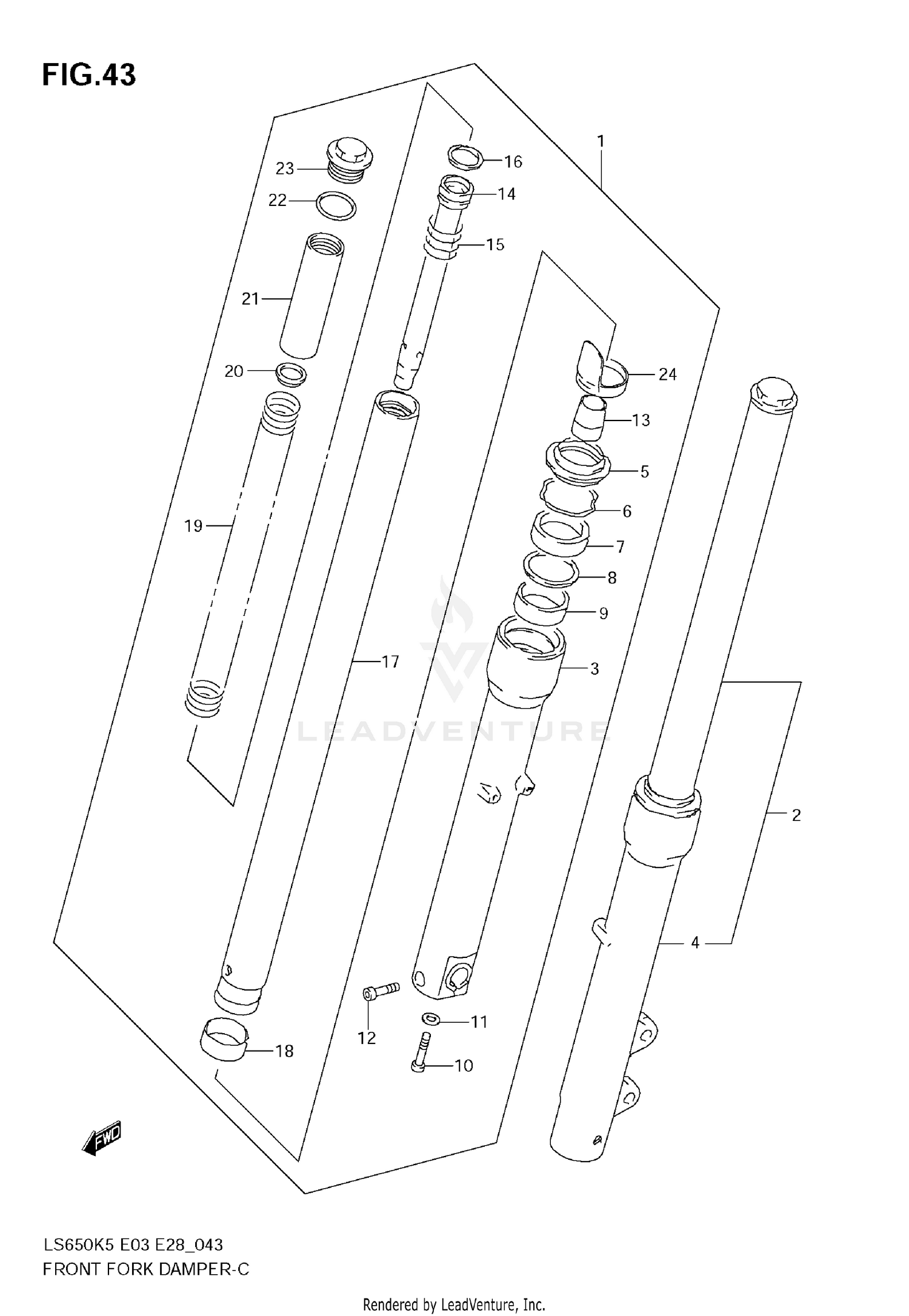

Front Damper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER ASSY, FRONT FORK RH
51103-24B50
|
$971.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER ASSY, FRONT FORK LH
51104-24B50
|
$971.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, OUTER RH
51130-24B50
|
$400.57 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, OUTER LH
51140-24B50
|
$400.57 | ||
|
Available to order. Add to View Price |
|||
|
#5
DUST SEAL
51173-20A00
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, STOPPER
51156-40301
|
$6.24 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
51153-20A00
|
$24.14 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
51158-14100
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#9
METAL, SLIDE
51167-13A00
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
51147-16510
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
51148-41310
|
$2.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT
07130-08407
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIECE, OIL LOCK
51195-24B01
|
$11.59 | ||
|
Unavailable |
|||
|
#14
CYLINDER
51146-24B01
|
$65.74 | ||
|
Unavailable |
|||
|
#15
SPRING
51177-49440
|
$12.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING, PISTON
51196-49440
|
$5.60 | ||
|
Unavailable |
|||
|
#17
TUBE, INNER
51120-24B01
|
$420.26 | ||
|
Available to order. Add to View Price |
|||
|
#18
PISTON
51121-14100
|
$18.76 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING
51171-24B00
|
$55.34 | ||
|
Unavailable |
|||
|
#20
WASHER
51172-45C00
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER
51176-24B01
|
$12.32 | ||
|
Available to order. Add to View Price |
|||
|
#22
O RING
51117-40300
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP
51351-24B00
|
$63.48 | ||
|
Available to order. Add to View Price |
|||
|
#24
PROTECTOR
51201-01DA0
|
$30.91 | ||
|
Available to order. Add to View Price |
|||
