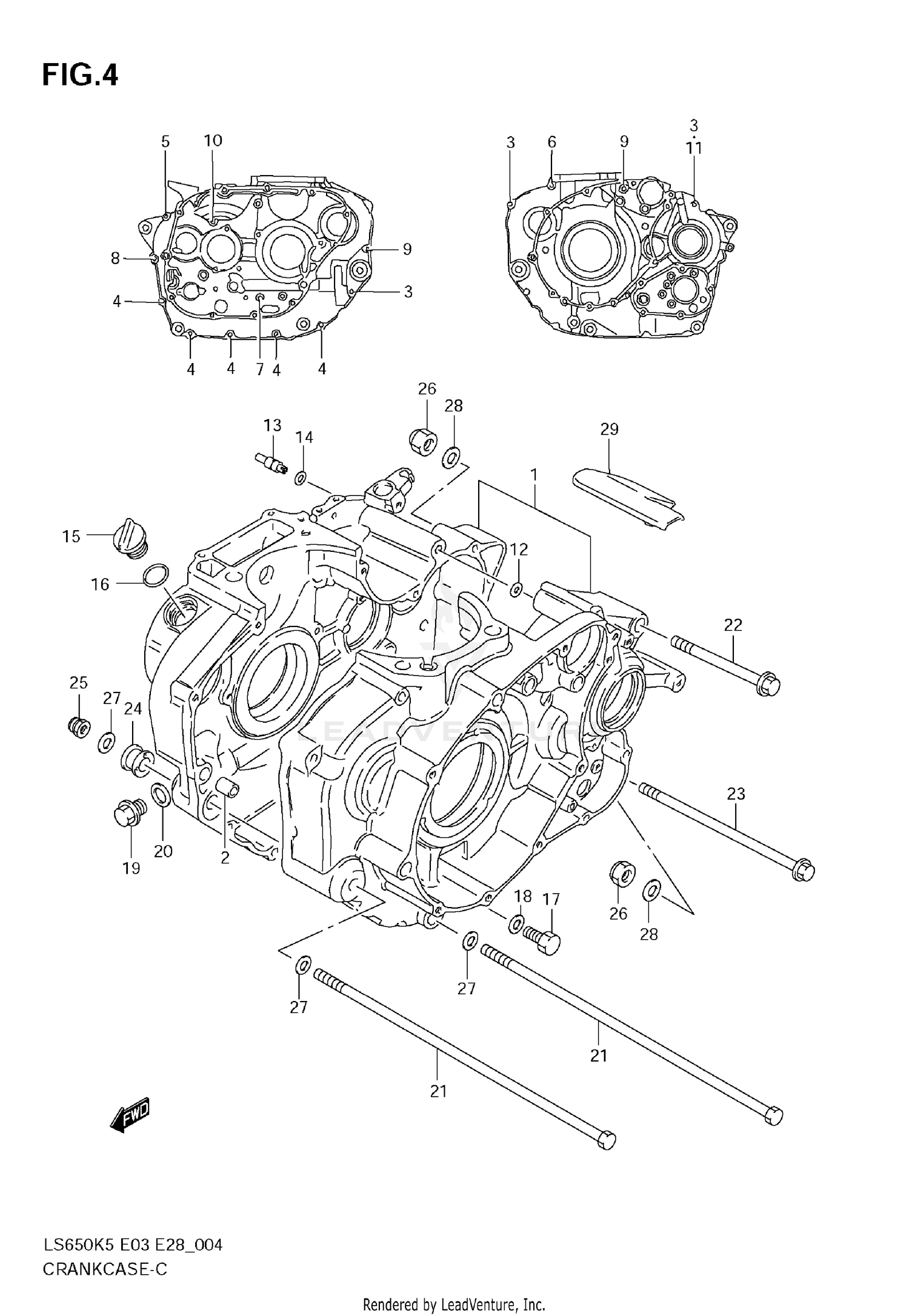

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11302-24852
|
$1,554.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN
09206-11007
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
01547-0640B
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01547-0645B
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
09103-06216
|
$3.23 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BOLT
01547-0660B
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
01547-0665B
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01547-06657
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01547-0670B
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01547-0675B
|
$4.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET (5.8X13X1.2)
09168-06023
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
O RING (D:2.4,ID:9.6)
09280-10013
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
JET,OIL GALY (#18)
09493-36004
|
$17.72 | ||
|
Available to order. Add to View Price |
|||
|
#14
O RING (D:1.2,ID:4)
09280-04004
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
.PLUG
09259-20008
Superseded by 09259-20008-XC0
|
$9.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG,ENGINE OIL FILLER
11971-25D00
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#16
O RING (D:3.1,ID:16.8)
09280-17003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
PLUG (12X20)
09247-12011
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET
09168-12002
|
$1.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
.PLUG (14X12)
09247-14012
Superseded by 09247-14026
|
$4.57 | ||
|
Available to order. Add to View Price |
|||
|
#20
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.75 | ||
|
Unavailable |
|||
|
#21
BOLT (10X323)
09104-10034
|
$29.92 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT (10X105)
09103-10087
|
$8.68 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT (10X180)
09103-10053
|
$12.07 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPACER
11610-38400
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
09159-10064
|
$10.59 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
09159-10047
|
$11.63 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER
08322-01107
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
WASHER
08322-0110B
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#29
COVER, CRANKCASE
11384-24B01
|
$12.51 | ||
|
Unavailable |
|||
