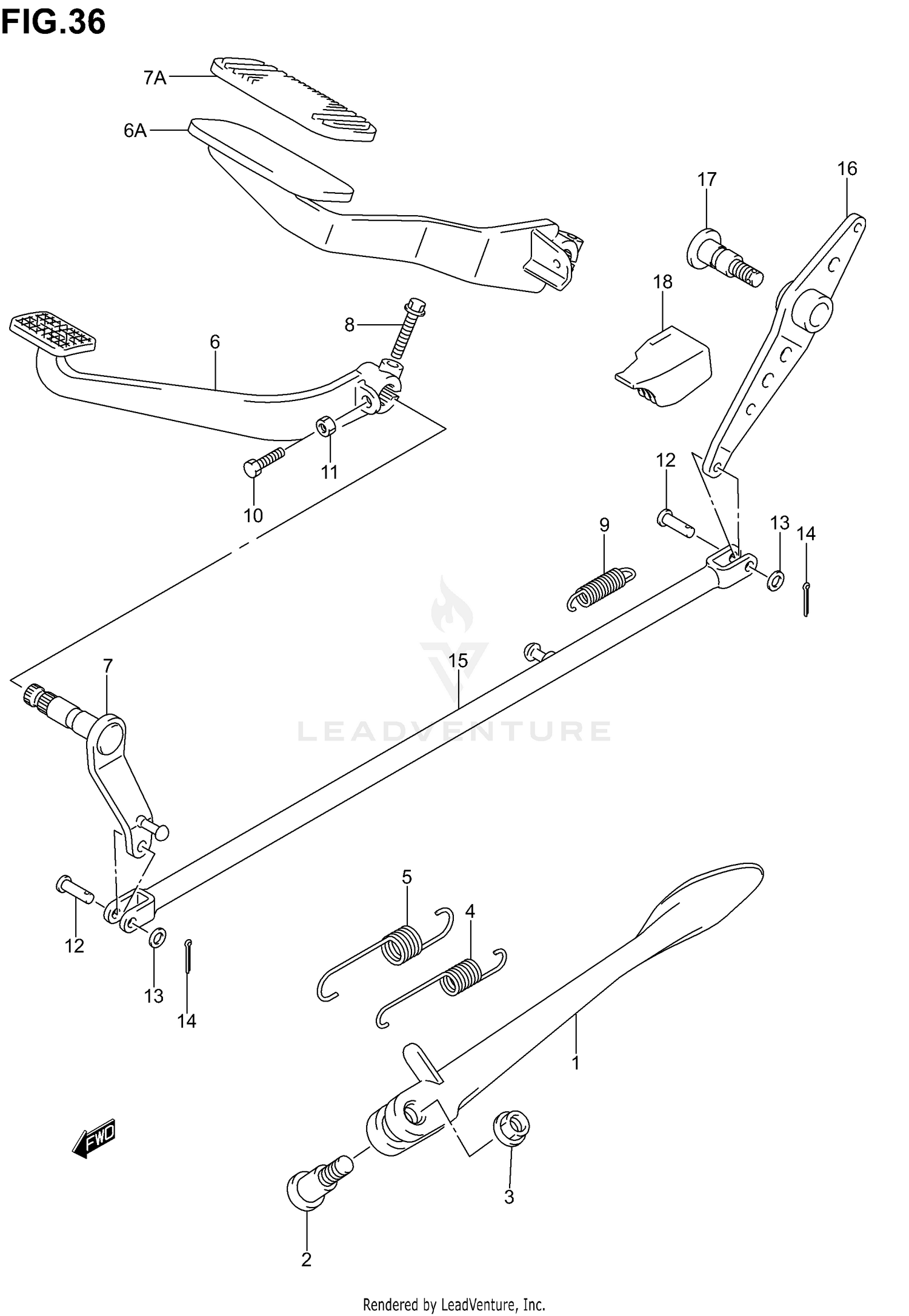

Stand - Rear Brake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, PROP
42310-41F00
Superseded by 42310-41F01
|
$198.53 | ||
|
Available to order. Add to View Price |
|||
|
#1
STAND, PROP
42310-41F01
|
$198.53 | ||
|
Unavailable |
|||
|
#2
BOLT
09111-10058
|
$8.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT,PROP STAND
42321-03FK0
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, INNER
09443-14066
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, OUTER
09443-19012
|
$7.17 | ||
|
Available to order. Add to View Price |
|||
|
#6
PEDAL, BRAKE
43110-41F00
|
$130.45 | ||
|
Available to order. Add to View Price |
|||
|
#6A
PEDAL, BRAKE
43110-41F10
Superseded by 43110-41F11
|
$187.46 | ||
|
Available to order. Add to View Price |
|||
|
#7
ARM, BRAKE ROD
43120-41F00
|
$66.90 | ||
|
Available to order. Add to View Price |
|||
|
#7A
RUBBER,BRAKE PEDAL
43151-10F00
Superseded by 43151-10F01
|
$9.48 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, ARM
01550-06257
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, RETURN
09443-12049
|
$12.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, RETURN
09443-12051
|
$8.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, ADJUSTER
01500-06207
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
.NUT
08310-00067
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PIN (6X18.2)
09200-06037
Superseded by 09200-06068
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#13
.WASHER
08322-01063
Superseded by 08322-0106B
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#14
.COTTER PIN
04111-20158
Superseded by 04111-2015A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#15
ROD, FRONT
43130-41F00
|
$67.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
LINK, REAR BRAKE
43140-41F00
|
$66.06 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHAFT,BRAKE PEDAL
43142-27C00
|
$28.50 | ||
|
Available to order. Add to View Price |
|||
|
#18
RUBBER,BRAKE LINK
43151-41F00
Superseded by 43151-41F01
|
$9.31 | ||
|
Unavailable |
|||
