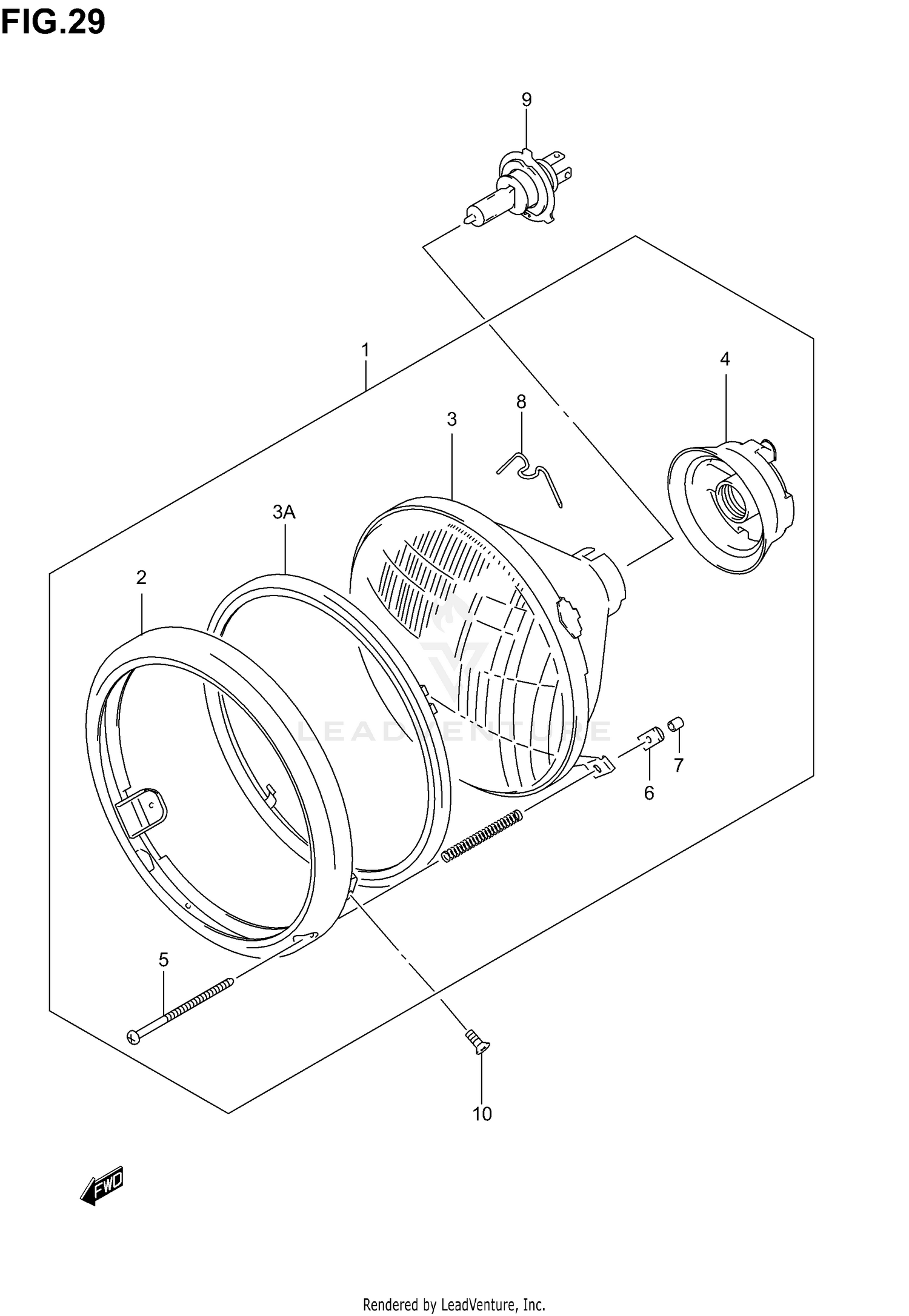

Headlamp Assy (model K1/k2/k3/k4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLAMP ASSY
35100-10F30-999
|
$444.48 | ||
|
Available to order. Add to View Price |
|||
|
#2
RIM ASSY
35111-10F20
|
$184.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
LAMP UNIT
35121-10F30
|
$179.00 | ||
|
Available to order. Add to View Price |
|||
|
#3A
RETAINING RING ASSY
35127-10F00
|
$33.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, SOCKET
35173-20A01
|
$19.46 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, ADJUSTER
35151-45900
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, ADJUSTER
35152-15611
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, SCREW
35158-43400
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING
35128-10F00
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
BULB (12V60/55W,H4)
09471-12060
|
$30.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SCREW (5X12)
09126-05003
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
