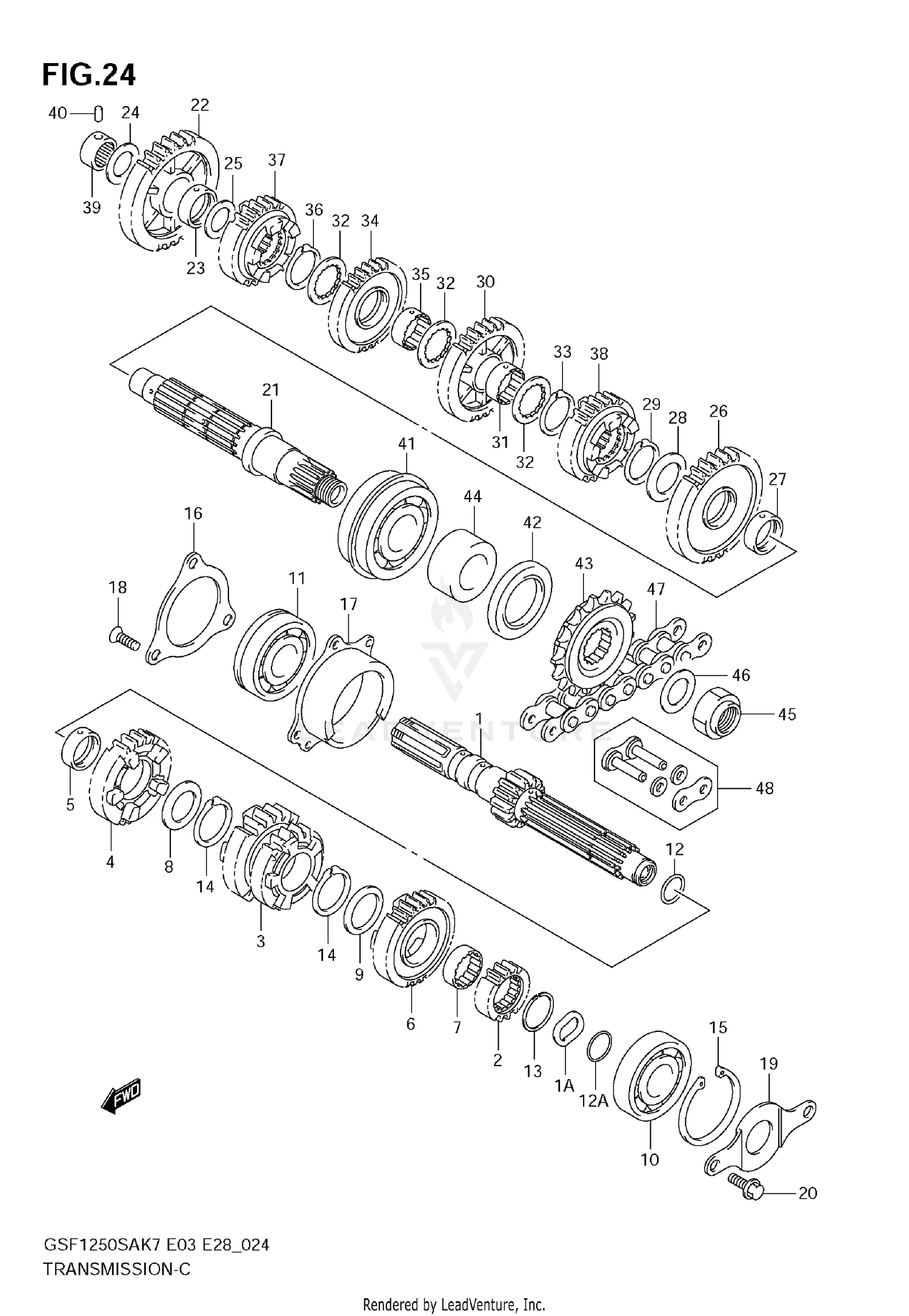

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, COUNTER (NT:13)
24120-18H00
|
$232.61 | ||
|
Unavailable |
|||
|
#1A
WASHER, CNTR
24127-18H00
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 2ND DRIVE
24221-18H00
Superseded by 24221-18H10
|
$113.79 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 3RD & 4TH DRIVE
24231-18H00
|
$135.82 | ||
|
Unavailable |
|||
|
#4
GEAR, 5TH DRIVE (NT:25)
24251-18H00
|
$113.54 | ||
|
Unavailable |
|||
|
#5
BUSH, 5TH DRIVE GEAR
24252-35F00
|
$27.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 6TH DRIVE (NT:28)
24261-18H00
|
$108.13 | ||
|
Unavailable |
|||
|
#7
BUSH, 6TH DRIVE
24262-35F00
|
$32.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, 5TH DRIVE
09160-27008
|
$4.01 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
WASHER, 6TH DRIVE
09167-27001
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING, CNTR, L
09262-20080
|
$42.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, CNTR, R
09262-25073
|
$32.51 | ||
|
Available to order. Add to View Price |
|||
|
#12
O RING (D:1.9,ID:16.6)
09280-17004
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#12A
O RING, CNTR SHAFT
09280-20001
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP, 2ND DRIVE
09380-27004
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP, 5TH/6TH
09380-27006
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
08331-4152A
Superseded by 08331-41529
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
RETAINER, CNTR SHAFT BRG, R
24751-18H00
|
$13.17 | ||
|
Unavailable |
|||
|
#17
HOUSING, CNTR SHAFT, R
24771-18H00
|
$92.82 | ||
|
Unavailable |
|||
|
#18
SCREW, HOUSING (6X20)
09139-06159
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#19
RETAINER, CL PUSH ROD
24741-18H00
|
$8.43 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PUSH (6X12)
09103-06236
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHAFT, DRIVE
24131-18H10
|
$219.76 | ||
|
Unavailable |
|||
|
#22
GEAR, 1ST DRIVEN (NT:40)
24311-18H00
|
$188.78 | ||
|
Available to order. Add to View Price |
|||
|
#23
BUSH, 1ST DRIVEN
24312-02F00
|
$31.79 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, 1ST, R
09181-20251
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, 1ST, L
09181-22223
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#26
GEAR, 2ND DRIVEN (NT:35)
24321-18H00
|
$112.42 | ||
|
Unavailable |
|||
|
#27
BUSH,2ND DRIVEN GEAR
24322-02F01
|
$24.29 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, 2ND DRIVEN
09160-27008
|
$4.01 | ||
|
Unavailable |
|||
|
#29
CIRCLIP, 2ND DRIVEN
09380-27006
|
$3.38 | ||
|
Unavailable |
|||
|
#30
GEAR, 3RD DRIVEN (NT:31)
24331-18H00
|
$157.45 | ||
|
Available to order. Add to View Price |
|||
|
#31
BUSH, 3RD DRIVEN GEAR
24262-17E01
|
$43.59 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, 3RD & 4TH DRIVEN
24333-02F00
|
$6.63 | ||
|
Available to order. Add to View Price |
|||
|
#33
CIRCLIP, 3RD DRIVEN
09380-27006
|
$3.38 | ||
|
Unavailable |
|||
|
#34
GEAR, 4TH DRIVEN (NT:30)
24341-18H00
|
$118.00 | ||
|
Unavailable |
|||
|
#35
BUSH, 4TH DRIVEN GEAR
24262-17E01
|
$43.59 | ||
|
Unavailable |
|||
|
#36
CIRCLIP, 4TH DRIVEN
09380-27006
|
$3.38 | ||
|
Unavailable |
|||
|
#37
GEAR, 5TH DRIVEN (NT:29)
24351-18H00
|
$115.18 | ||
|
Unavailable |
|||
|
#38
GEAR, 6TH DRIVEN (NT:30)
24361-18H00
|
$115.18 | ||
|
Unavailable |
|||
|
#39
BEARING, DRIVE SHAFT, R
09263-20087
|
$54.54 | ||
|
Available to order. Add to View Price |
|||
|
#40
PIN, DRIVE SHADFT, R
09261-06003
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#41
BEARING, DRIVE SHAFT, L
09267-30011
|
$181.73 | ||
|
Available to order. Add to View Price |
|||
|
#42
OIL SEAL (42X62X7)
09283-42018
|
$45.64 | ||
|
Available to order. Add to View Price |
|||
|
#43
SPROCKET, ENGINE (NT:18)
27510-21A40
|
$173.43 | ||
|
Available to order. Add to View Price |
|||
|
#44
SPACER, SPROCKET
27531-18H00
|
$21.35 | ||
|
Unavailable |
|||
|
#45
NUT
09159-20004
|
$19.66 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER (25X40X1.4)
09160-25035
|
$5.31 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
CHAIN ASSY (RK50GSVZ3M,120LE)
27600-24F20-120
|
$384.10 | ||
|
Available to order. Add to View Price |
|||
|
#48
.JOINT SET, CHAIN
27620-24F20
|
$24.75 | ||
|
Available to order. Add to View Price |
|||
