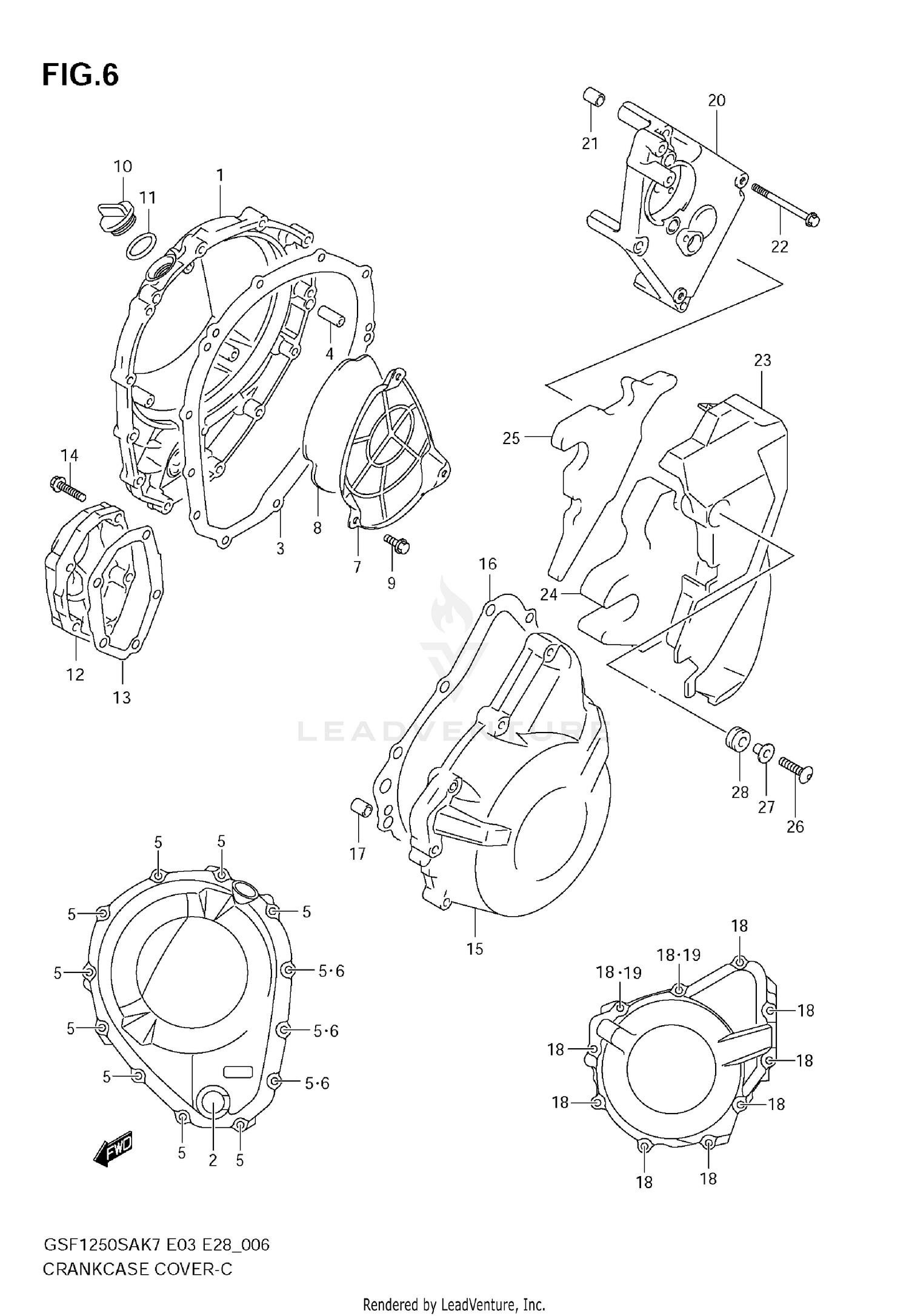

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CLUTCH
11340-18H00
|
$377.23 | ||
|
Available to order. Add to View Price |
|||
|
#2
.LENS, OIL LEVEL CHECK
11971-33210
|
$23.50 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
11482-18H00
|
$26.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN
04211-09189
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (6X30)
09103-06213
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PLATE, CLUTCH COVER
11342-18H00
|
$21.77 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER
11343-18H00
|
$66.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01550-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG,ENGINE OIL FILLER
11971-25D00
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
O RING (D:3.1,ID:16.8)
09280-17003
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
COVER, CRANKSHAFT RH
11381-18H00
|
$132.63 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
11491-18H00
|
$5.92 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
09103-06213
|
$2.95 | ||
|
Unavailable |
|||
|
#15
COVER, MAGNETO
11351-18H00
|
$213.57 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET
11483-18H00
|
$15.98 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN
04211-09149
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
09103-06213
|
$2.95 | ||
|
Unavailable |
|||
|
#19
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
Unavailable |
|||
|
#20
COVER, ENGINE SPROCKET INNER
11371-18H00
|
$126.23 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN
04211-09149
|
$2.05 | ||
|
Unavailable |
|||
|
#22
BOLT
01547-0660A
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER, ENGINE SPROCKET OUTER
11361-18H00
|
$119.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
CUSHION, NO.1
11362-18H00
|
$12.16 | ||
|
Unavailable |
|||
|
#25
CUSHION, NO.2
11363-18H00
|
$4.82 | ||
|
Unavailable |
|||
|
#26
BOLT
09139-06056
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER
09169-06062
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#28
CUSHION
09320-09016
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
