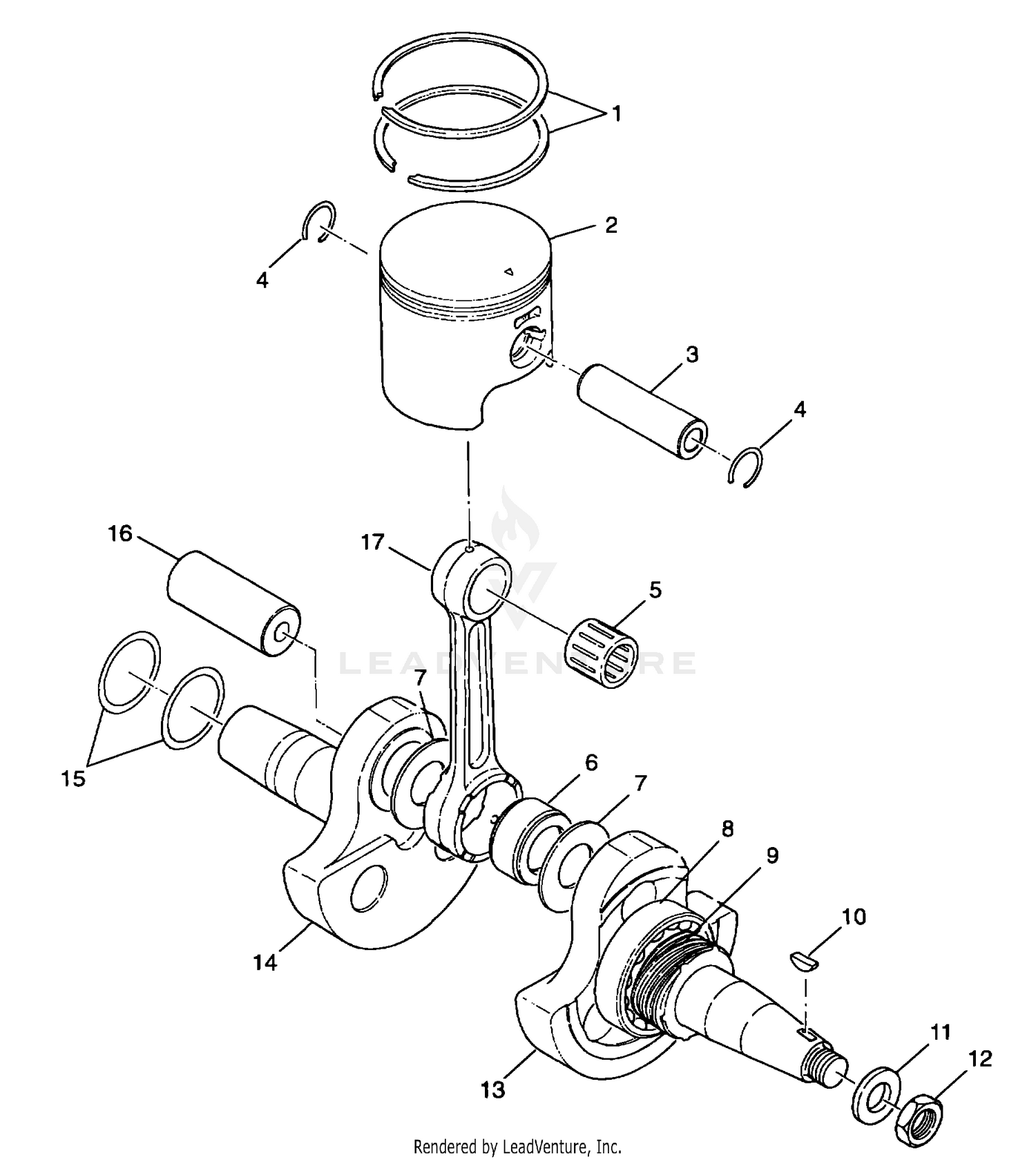

Crankshaft And Piston - A99cc28ca (4949484948d001) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING,PISTON,(.50MM O/S),(2)
3084811
|
|||
|
Unavailable |
|||
|
#1
RING,PISTON,(.25MM O/S),(2)
3084810
|
|||
|
Unavailable |
|||
|
#1
RING,PISTON,STD.(2)
3084809
|
|||
|
Available to order. Add to View Price |
|||
|
#2
PISTON,STANDARD
3085099
Superseded by 3085894
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON,.010"/.25MM O/S
3085100
Superseded by 3085895
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON,.020"/.50MM O/S
3085101
Superseded by 3085896
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, PISTON
3083858
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP,(10)
3084167
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING, SMALL END
3083626
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING,LGE.END
3083803
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER
3083804
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, BALL
3084580
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, CRANKSHAFT Substituted by 3083745
3083745
Superseded by 3083414
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Key
3080130
Superseded by 3081543
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
3083904
Superseded by 3086767
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
LOCKNUT
3083905
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CRANKSHAFT ASM.
3084803
|
|||
|
Unavailable |
|||
|
#13
CRANKSHAFT #1
3084804
|
|||
|
Unavailable |
|||
|
#14
CRANKSHAFT #2
3084805
|
|||
|
Unavailable |
|||
|
#15
SPACER-1
3084778
Superseded by 3086765
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER-2
3084779
Superseded by 3086766
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CRANK PIN PTO
3082796
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD CONNECTING
3082790
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
