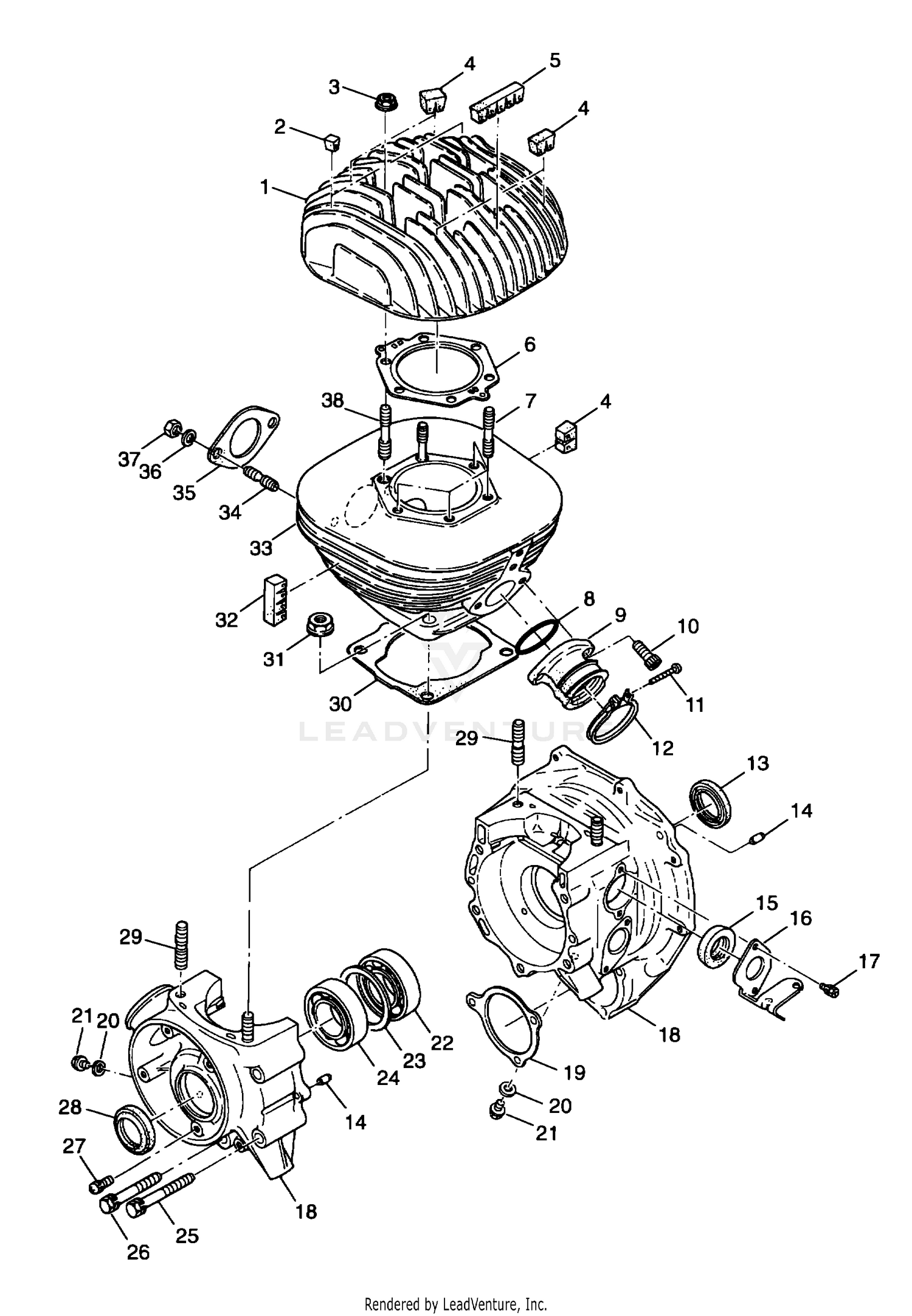

Crankcase And Cylinder - A99cc28ca (4949484948c013) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD, CYLINDER
3085097
|
|||
|
Unavailable |
|||
|
#2
FIN DAMPER #2
3083930
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT-FLANGE(10)
3082910
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
FIN DAMPER B
3084799
|
|||
|
Unavailable |
|||
|
#5
FIN DAMPER A
3084798
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, HEAD
3085098
|
|||
|
Unavailable |
|||
|
#7
STUD
3080283
|
$16.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
O-RING
3084292
|
|||
|
Available to order. Add to View Price |
|||
|
#9
ADAPTER, CARB. *
3085013
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, ALLEN
3081330
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW,(10)
3081497
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BAND-CARB MTG.
3082257
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL,OIL
3082162
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Pin, Dowel
3080103
Superseded by 3086838
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GROMMET
3084801
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET,WIRE
3084800
|
|||
|
Unavailable |
|||
|
#17
BOLT&WASHER ASM.(10)
3084802
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CRANKCASE ASM.
3084791
|
|||
|
Unavailable |
|||
|
#19
GASKET,STARTER(NON-ASBESTOS)
3085283
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, FLAT
3082758
Superseded by 7555998
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PLUG, DRAIN
3083767
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, BALL
3084775
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPACER
3084792
|
|||
|
Unavailable |
|||
|
#24
BEARING, BALL
3084121
|
$49.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT W/WASHER
3080739
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT&WASHER ASSY.
3083615
|
|||
|
Unavailable |
|||
|
#27
SCREW&WASHER ASM.
3081635
|
|||
|
Unavailable |
|||
|
#28
SEAL, OIL, PTO
3084581
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
STUD
3084119
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
GASKET,CYL,NA
3084795
|
|||
|
Available to order. Add to View Price |
|||
|
#31
NUT-FLANGE(10)
3082911
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
FIN DAMPER #1
3083929
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
CYLINDER
3084793
|
|||
|
Available to order. Add to View Price |
|||
|
#34
STUD,(10)
3085326
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Gasket, Exhaust
3084439
Superseded by 3086757
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER LOCK ,(10)
3080530
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
Nut
3080285
Superseded by 3087199
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
STUD
3084794
|
|||
|
Unavailable |
|||
