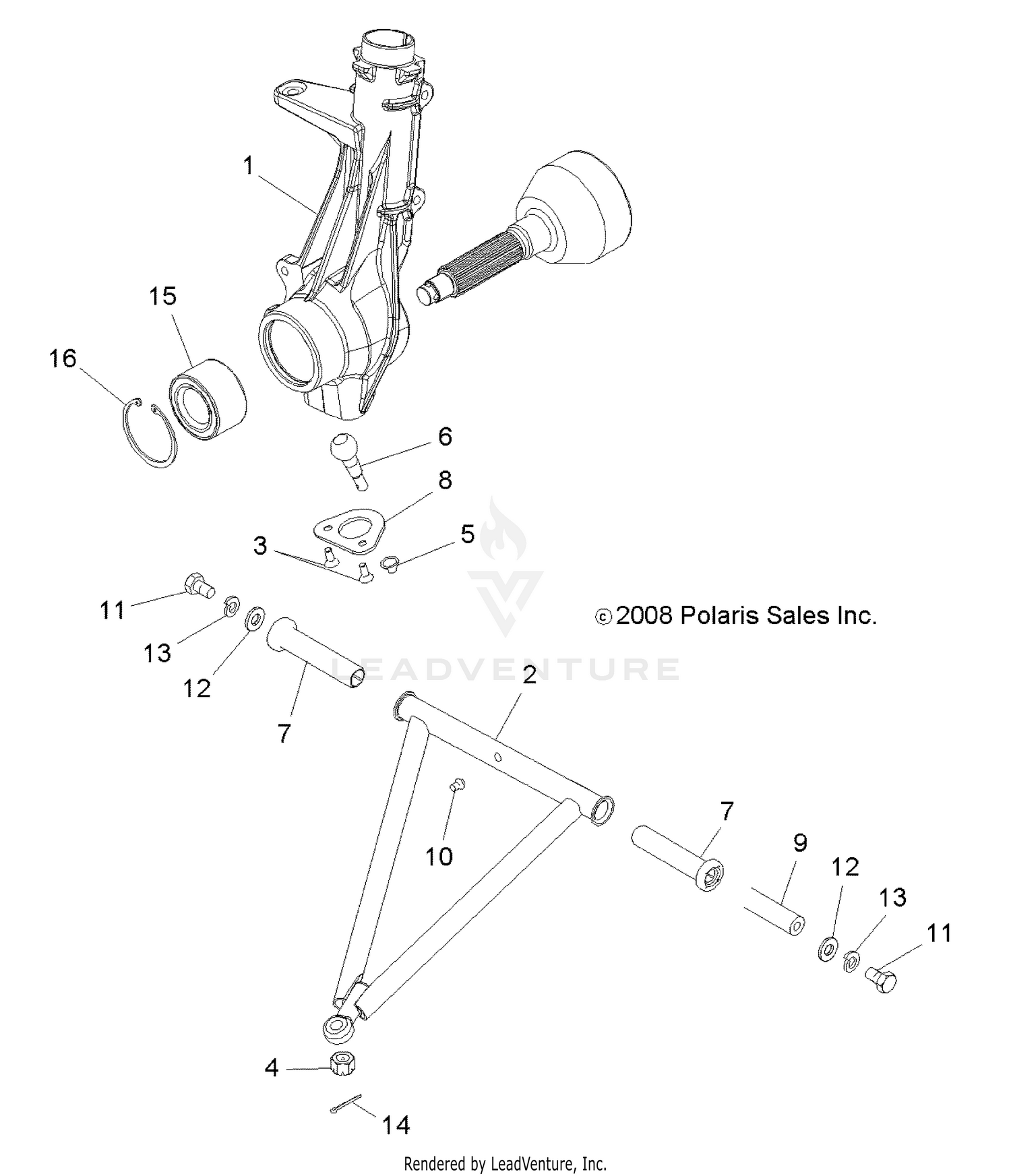

Suspension, A-arm And Strut Mounting - A12ea32aa (49atvsuspfrt10tblzr) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Asm., Hubstrut, LH
1822825
|
$379.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Asm., Hubstrut, RH
1822826
|
$379.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Kit, A-Frame, LH, Black
2202284-067
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Kit, A-Frame, RH, Black
2202285-067
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
NUT-3/8-24 HX CA GR5-Y
7542438
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Boot, Ball Joint, Greaseless
5412658
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BALL-JOINT,GREASELESS,STRUT
7061158
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Bushing, A-Arm, Long
5436973
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY)
1543326
|
$15.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BRACKET-BALL JOINT
5211121
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Shaft, A-Arm
5133806
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Fitting, Lubrication
7080433
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Screw
7512492
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
WSHR-.813X.406X.105-Y
7555832
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Washer, Lock
7552603
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Pin, Cotter
7661203
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BEARING-WHEEL, 35X64X37MM
3514634
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING-WHEEL,35X64X37MM HD
3515088
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Ring, Retaining
7710507
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
