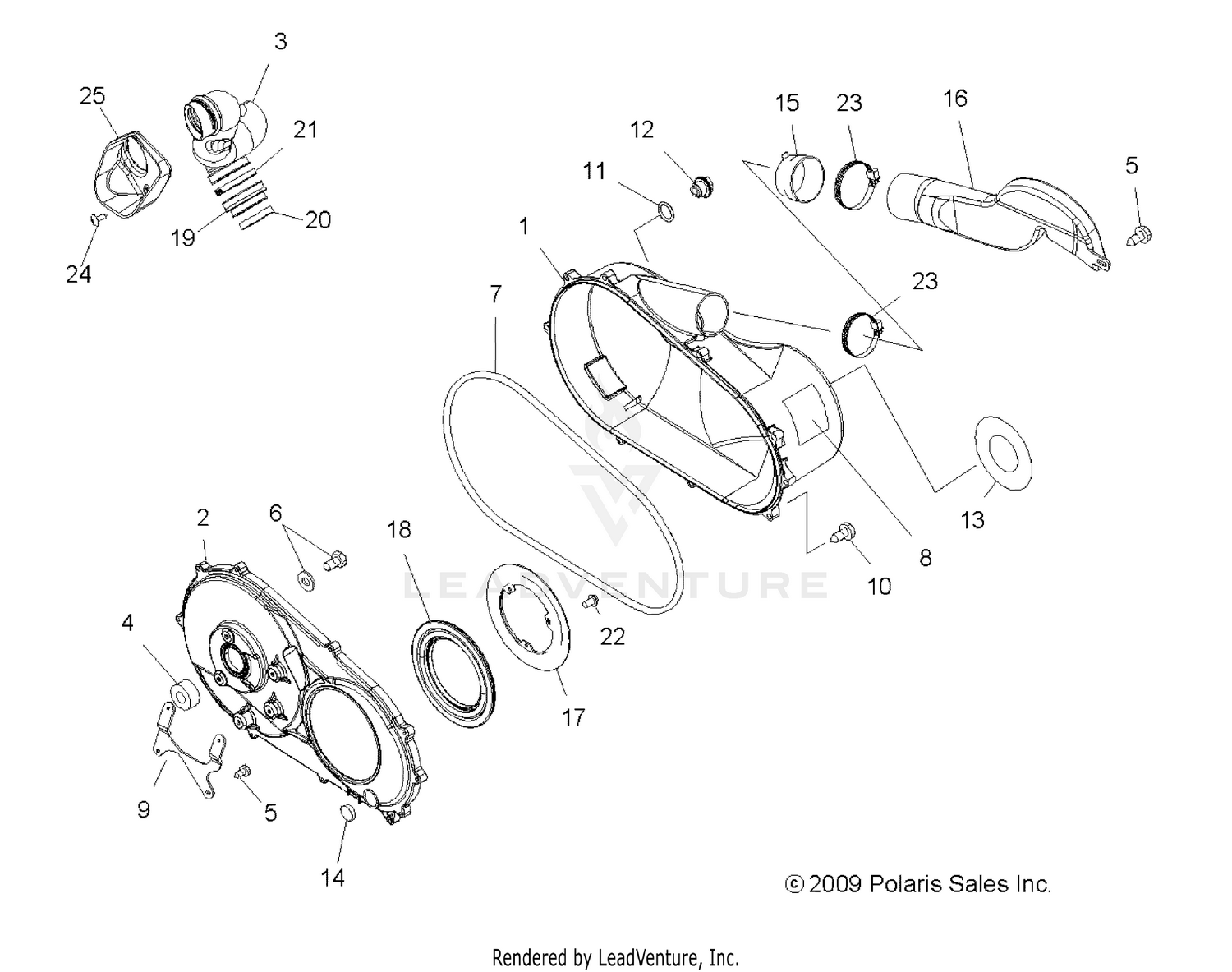

Body, Clutch Cover - A12ea32aa (49atvclutchcvr10tblzr) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Asm., Clutch Cover, Outer
2633926
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Kit, Inner Clutch Cover
2202438
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Duct, Air Inlet, Clutch
5438130
|
|||
|
Unavailable |
|||
|
#4
Seal, Cover Case
5410489
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Screw
7517386
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Bolt and Washer
7510000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Seal, Clutch Cover, Outer
5521738
|
$38.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
Decal, Warning, Clutch Cover
7172563
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
Bracket, Clutch Cover, Black
5247524-067
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Screw
7512094
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O RING
5410542
Superseded by 5411432
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PLUG-DRAIN,CLUTCH COVER
5434264
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Decal, Automatic Transmission
7172746
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Stopper, Clutch Cover, Inner
5411795
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Boot, Duct
5412636
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Duct, Clutch, Out, Hi-Flow
5434160
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Bracket, Clutch Seal
5242046
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Seal, Cover, Case
5412637
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Boot, Clutch Intake
5411721
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Clamp, Narrow Band
7080511
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Clamp, Narrow Band
7080909
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Screw and Washer
3084205
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
CLAMP-BAND,NARROW 70-90MM
7081279
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Screw
7517386
|
$1.49 | ||
|
Unavailable |
|||
|
#25
Extension, Duct
5438172
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
