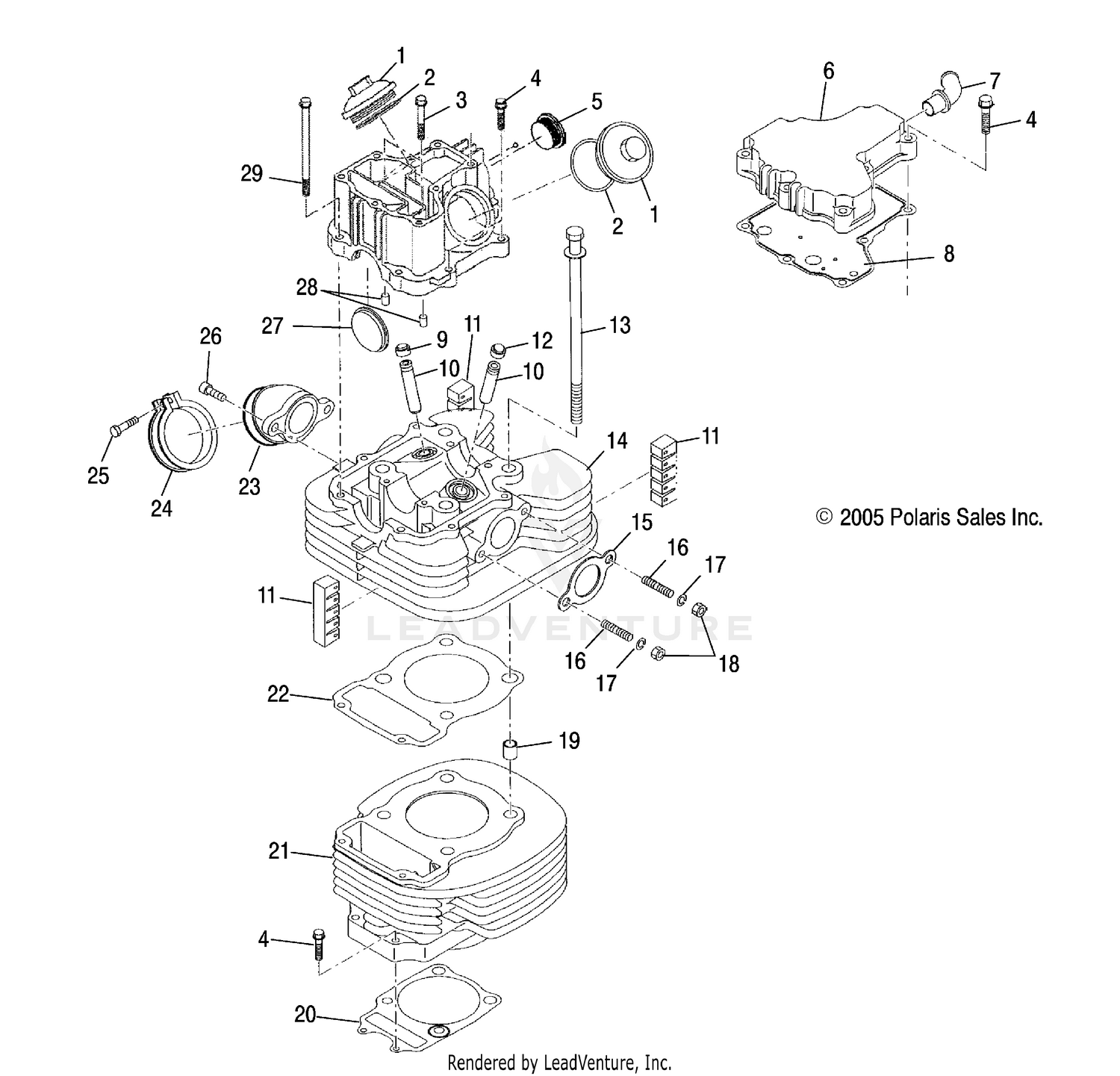

Engine, Cylinder - A07ca32aa (4999202939920293c08) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Cover, Valve
3087259
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-Ring
3086414
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Bolt, Flange
3087159
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Bolt, Flange
3084874
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Asm., Plug
3089272
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Asm., Cover, Breather
3089271
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Asm., Pipe
3085850
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Gasket, Breather Cover
3087034
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Seal, Intake Valve
3084858
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Guide, Valve
3084994
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Fin, Damper A
3084798
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Seal, Exhaust Valve
3084859
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Asm., Bolt and Washer
3086418
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Asm., Cylinder Head
3089270
|
$704.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Gasket, Exhaust
3086421
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Stud
3085326
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Washer, Spring Lock
3080530
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
Nut
3086787
Superseded by 3087199
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Knock, Pipe
3087266
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
Gasket, Cylinder
3086407
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Unit, Cylinder
3087236
|
$459.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Gasket, Head
3087238
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Asm., Adapter
3087050
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Asm., Adapter Band
3083166
Superseded by 3090180
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Asm., Screw and Washer
3081497
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
Bolt, Socket, Head
3081330
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Gasket, Cam
3086416
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Knock, Pipe
3087275
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Bolt, Flange
3087160
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
