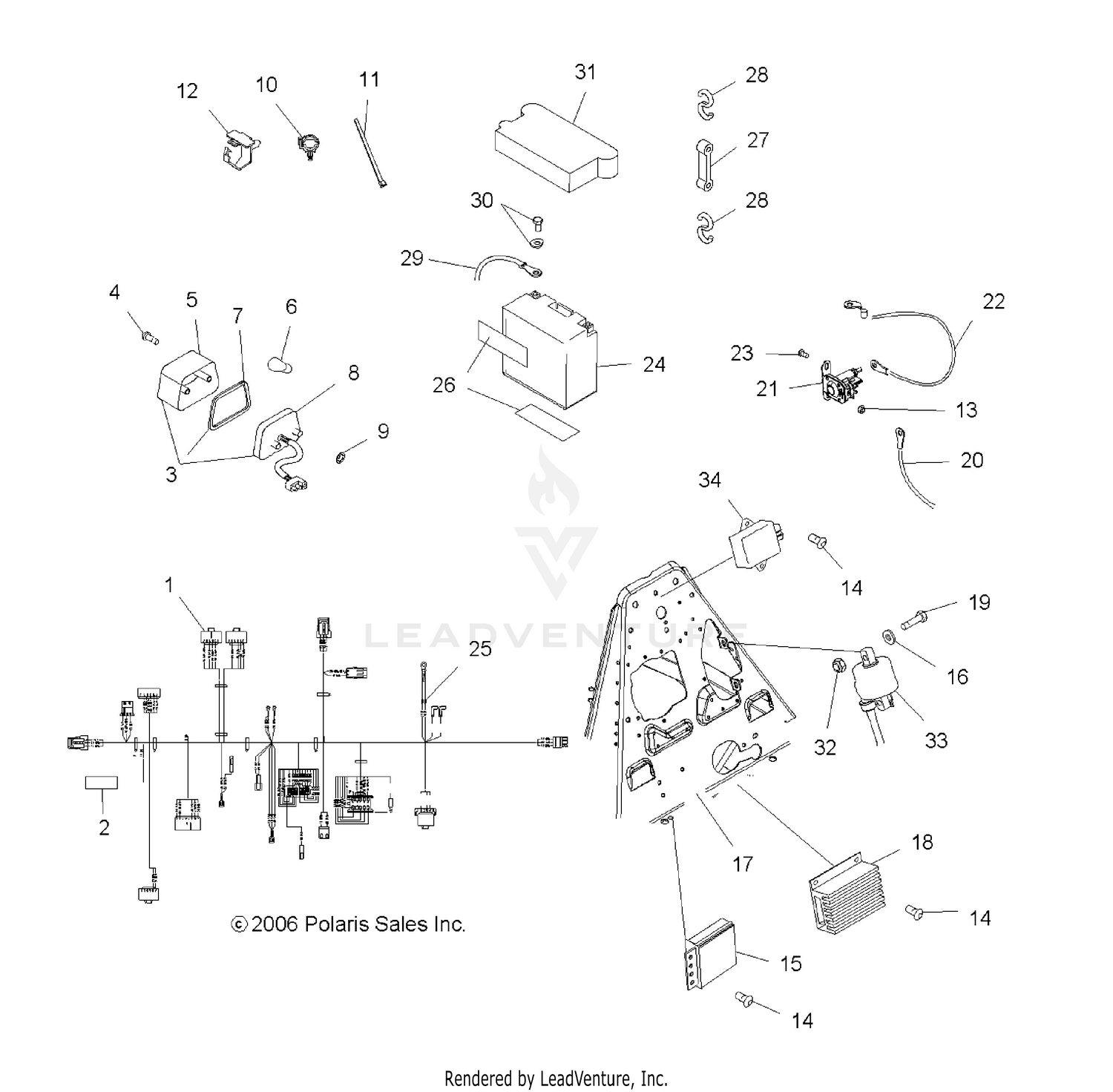

Electrical/taillight - A07ca32aa (49atvelectboss) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Harness, Main
2410883
|
$644.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Kit, Circuit Breaker, Fan
2201795
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Asm., Taillight
2410320
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Screw
4032029
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Lens, Taillight
4032046
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Bulb
4030043
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Gasket
4032045
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BACKING, TAILLIGHT/BRAKE LIGHT
-------
|
|||
|
Unavailable |
|||
|
#9
SPEED NUT-WASHER, HEAD-1/4
7670054
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Clip, Rosebud
4020139
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Clip, Routing
7670109
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Nut, Nylok
7518287
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Screw
7512024
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Limiter, RPM
4010995
Superseded by 4011856
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Washer
7571602
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Trim, Edge
5521131
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Controller, Module
4011831
|
$654.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Bolt
7512007
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Cable, Solenoid/Starter
4010093
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Solenoid, Starter
4010947
Superseded by 4012001
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Nut, Flange
7547270
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Cable, Battery/Solenoid
4010094
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Screw
7512027
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
Battery
4140006
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Tube, Vent
5432077
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Clip, Silencer Box
7670102
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Kit, Fusible Link, .8 mm
2202607
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PAD-BATTERY
5810290
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Strap, Battery Holddown
5412499
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Hook, Battery Strap
7010032
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Cable, Battery/Engine
4010095
|
|||
|
Available to order. Add to View Price |
|||
|
#30
Kit, Battery Bolt
2200361
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Cover, Battery
5431769
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Nut, Nylok
7541925
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
Coil, Ignition
3087036
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
CDI System
3087253
Superseded by 3088209
|
$424.99 | ||
|
Available to order. Add to View Price |
|||
