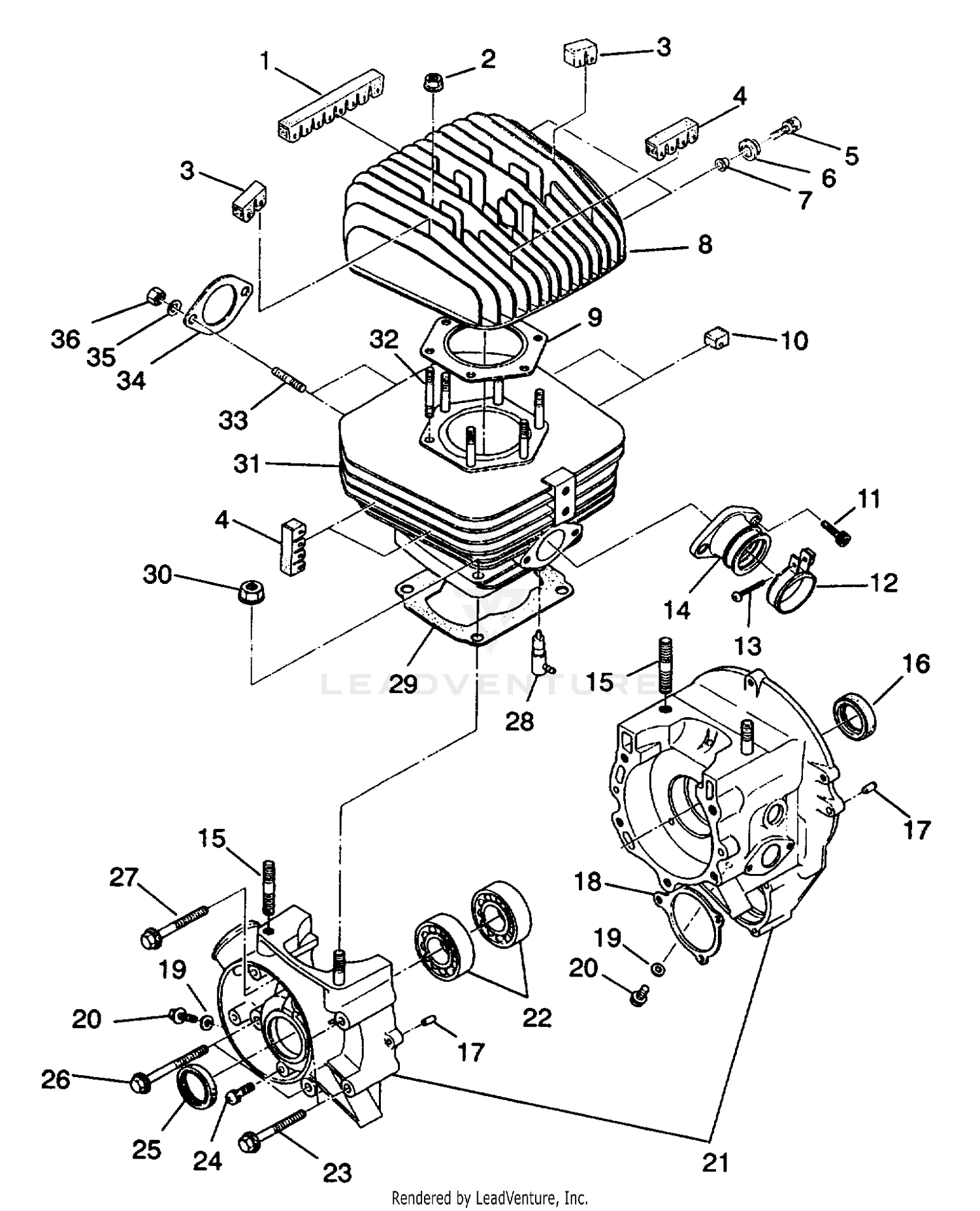

Crankcase And Cylinder - W937527 (4924042404034a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FIN DAMPER #3
3083931
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT-FLANGE(10)
3082910
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
FIN DAMPER #4
3083932
|
$22.79 | ||
|
Available to order. Add to View Price |
|||
|
#4
FIN DAMPER #1
3083929
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT&WASHER
3083730
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
MOUNTING,RUBBER
3083731
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
3083732
|
|||
|
Unavailable |
|||
|
#8
HEAD,CYLINDER
3083620
Superseded by 3086841
|
$308.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET,HEAD,(CP)
3083768
Superseded by 3084015
|
$50.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
FIN DAMPER #2
3083930
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, ALLEN
3081330
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND-CARB MTG.
3082011
Superseded by 3082257
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW,(10)
3081497
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
ADAPTER, CARB. *
3083412
Superseded by 3085013
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
STUD
3080746
Superseded by 3085713
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL,OIL
3080006
Superseded by 3082162
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Pin, Dowel
3080103
Superseded by 3086838
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET,STARTER(NON-ASBESTOS)
3083835
Superseded by 3085283
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, FLAT
3082758
Superseded by 7555998
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
PLUG, DRAIN
3083767
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CRANKCASE ASM.
3084579
|
$504.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, BALL
3084580
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT W/WASHER
3080739
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW&WASHER ASM.
3081635
|
|||
|
Unavailable |
|||
|
#25
SEAL, OIL, PTO
3084581
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT&WASHER ASSY.
3083615
|
|||
|
Unavailable |
|||
|
#27
BOLT AND WASHER ASSY.
3082096
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#28
Asm., Valve, Check
3083337
Superseded by 3086785
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET, CYLINDER Substituted by 3083733
3083733
Superseded by 3084016
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT-FLANGE(10)
3082911
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CYLINDER Substituted by 3085541
3083769
|
|||
|
Unavailable |
|||
|
#32
STUD
3080283
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
STUD (10)
3080016
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#34
GASKET, EXHAUST
3083770
|
|||
|
Unavailable |
|||
|
#35
WASHER LOCK ,(10)
3080530
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
Nut
3080285
Superseded by 3087199
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
