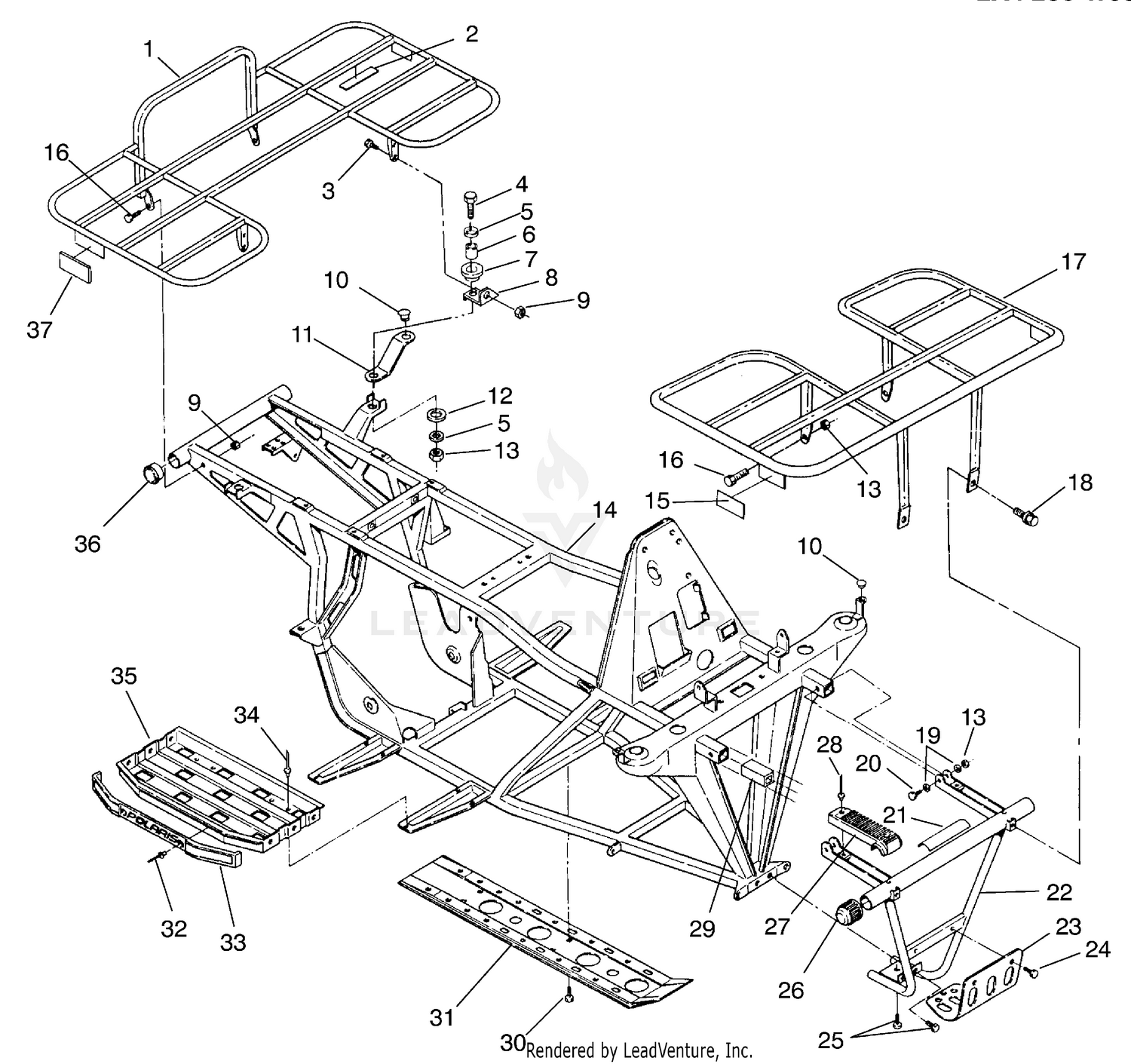

Bumper/rack Mounting - W937527 (4924022402a007) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RACK,REAR
2670136-067
|
|||
|
Available to order. Add to View Price |
|||
|
#2
PAD,RACK MOUNT
5810455
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW(10)
7515355
|
|||
|
Unavailable |
|||
|
#4
SCREW-FLANGED(10)
7515304
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
WASHER(10)
7555716
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSHING-RES. MT.
5010192
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Dampener, Vibration
5410241
Superseded by 5412508
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRKT,LH SUPPORT RACK, BLACK
5243468-067
|
|||
|
Unavailable |
|||
|
#8
BRKT,RH SUPPORT RACK, BLACK
5243469-067
|
|||
|
Unavailable |
|||
|
#9
NUT, NYLOK(10)
7542327
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426
5411426
Superseded by 5410012
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SUPPORT,R.FENDER
5220902-067
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER,RUBBER
5410436
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
NUT-5/16-18 NYLOK-Y
7542324
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
FRAME, MAIN
1040252-067
|
|||
|
Unavailable |
|||
|
#15
REFLECTOR ASM,AMBER
2670134
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
7512307
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
RACK, FRONT
2670135-067
|
|||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
7512252
|
|||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
WASHER-.344X.688X.063 FL-Y
7558402
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT
7512329
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
DECAL, F.SUSP.
7073455
|
|||
|
Unavailable |
|||
|
#22
BUMPER,FRT,BLK
2670106-067
|
|||
|
Unavailable |
|||
|
#23
PLATE, SKID, BUMPER, FRONT
5220981
|
|||
|
Unavailable |
|||
|
#24
SCREW(10)
7512208
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
7512399
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
CAP, FRONT BUMPER END
5431013-157
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, BUMPER MOUNTING BRACKET
5431023
|
$13.39 | ||
|
Available to order. Add to View Price |
|||
|
#28
RIVET
7621229
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
PLUG, FRAME
5810467
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT(10)
7512232
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
GUARD, ROCK, BLK.
5220922-067
|
$61.99 | ||
|
Unavailable |
|||
|
#32
RIVET,(50)
7661825
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#33
TRIM, FOOTREST
5431484
|
|||
|
Unavailable |
|||
|
#34
RIVET-3/16-.090-.290
7661620
Superseded by 7661637
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
FOOTPAD,LH,SILVER
1040274
Superseded by 1040274-117
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
PLUG,ENDCAP(10)
5410794
Superseded by 5432047
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#37
REFLECTOR ASM,RED
2670133
|
$7.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
